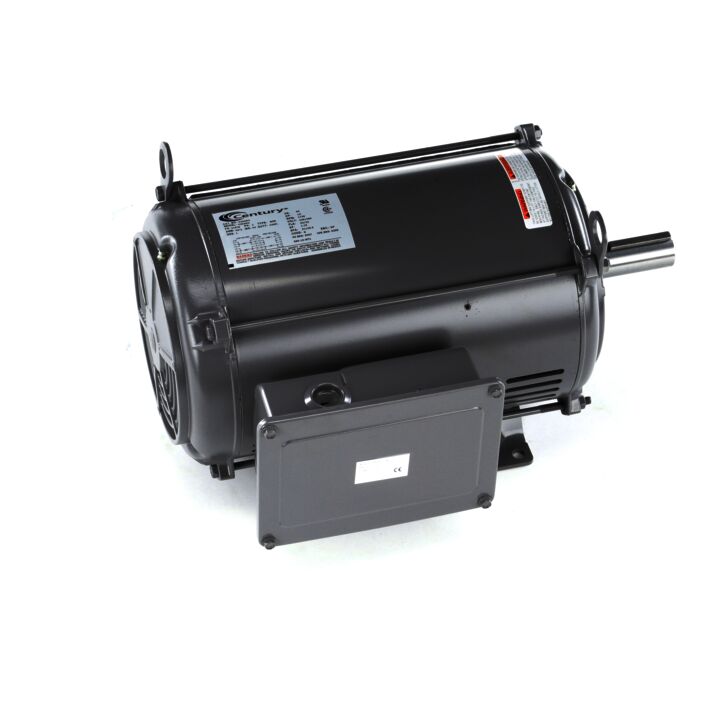

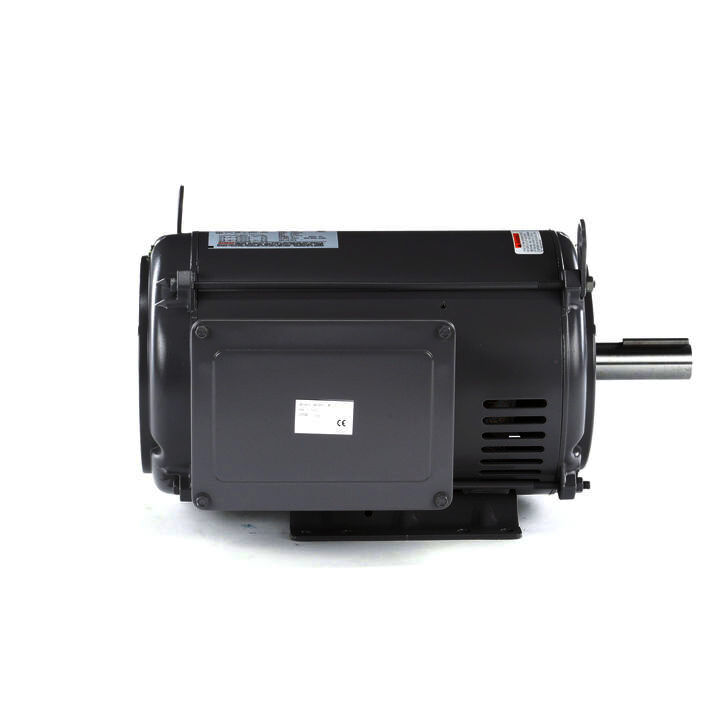

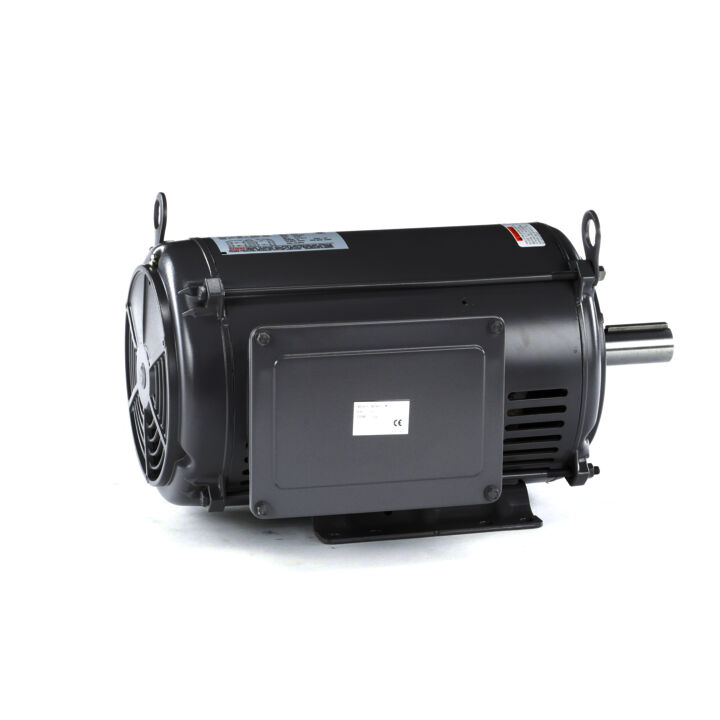

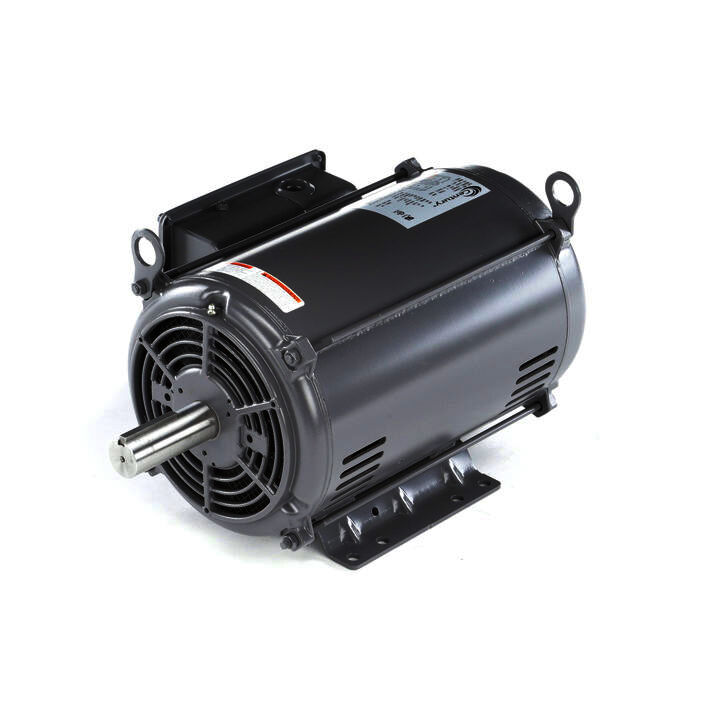

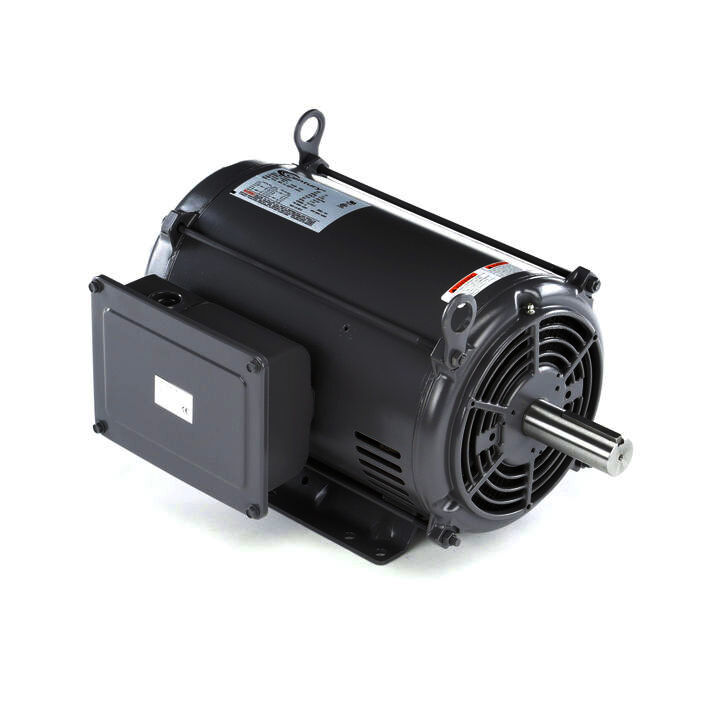

General Purpose Motor, 10 HP, 1 Ph, 60 Hz, 230/460 V, 1800 RPM, 215TZ Frame, ODP

Part#: V303M2

Catalog#: V303M2

Weight: 138 lb

location_on Where to Buy

Key Features

  • Heavy gauge steel frame and base

Specifications

Phase Phase: 1 Output HP Output HP: 10 Hp
Output KW Output KW: 7.5 kW Voltage Voltage: 230/460 V
Speed Speed: 1730 rpm Service Factor Service Factor: 1.15
Frame Frame: 215TZ Enclosure Enclosure: Open Drip Proof
Thermal Protection Thermal Protection: No Protection Ambient Temperature Ambient Temperature: 40 °C
Frequency Frequency: 60 Hz Current Current: 44/22 A
Duty Duty: Continuous Insulation Class Insulation Class: F
UL UL: Recognized CSA CSA: Y
CE CE: Y Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: Capacitor Start Capacitor Run Starting Method Starting Method: Across The Line
Poles Poles: 4 Rotation Rotation: Counterclockwise
Mounting Mounting: Rigid Base Drive End Bearing Drive End Bearing: Ball
Opp Drive End Bearing Opp Drive End Bearing: Ball Frame Material Frame Material: Rolled Steel
Shaft Type Shaft Type: Keyed Overall Length Overall Length: 19.59 in
Frame Length Frame Length: 12.40 in Shaft Diameter Shaft Diameter: 1.375 in
Shaft Extension Shaft Extension: 3.76 in
Service Factor Service Factor: 1.15 Frame Suffix Frame Suffix: TZ
Synchronous RPM Synchronous RPM: 1800 rpm Frequency Frequency: 60 Hz
Speed Speed: 1730 rpm Connection Drawing Connection Drawing: A-EE9048NB-CY
Outline Drawing Outline Drawing: 037779CY Voltage Voltage: 230/460 V
Output KW Output KW: 7.5 kW Output HP Output HP: 10 Hp
Frame Size Frame Size: 215 Packaged Length Packaged Length: 22.19 IN
Weight Weight: 138.00 LB UPC UPC: 786674067265
Packaged Width Packaged Width: 16.50 IN Country of Origin Country of Origin: Mexico
Packaged Height Packaged Height: 14.00 IN

Efficiency

Information not available at the moment. Please check back later!
