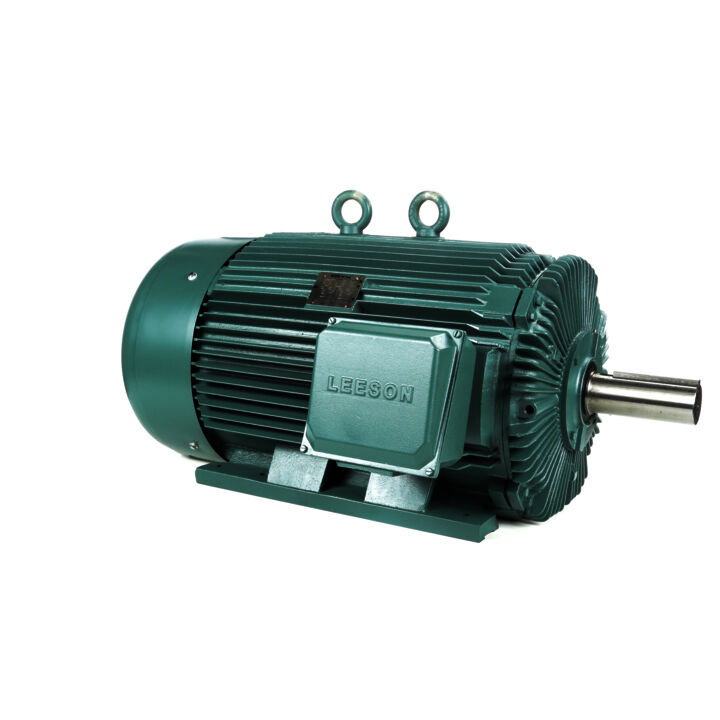

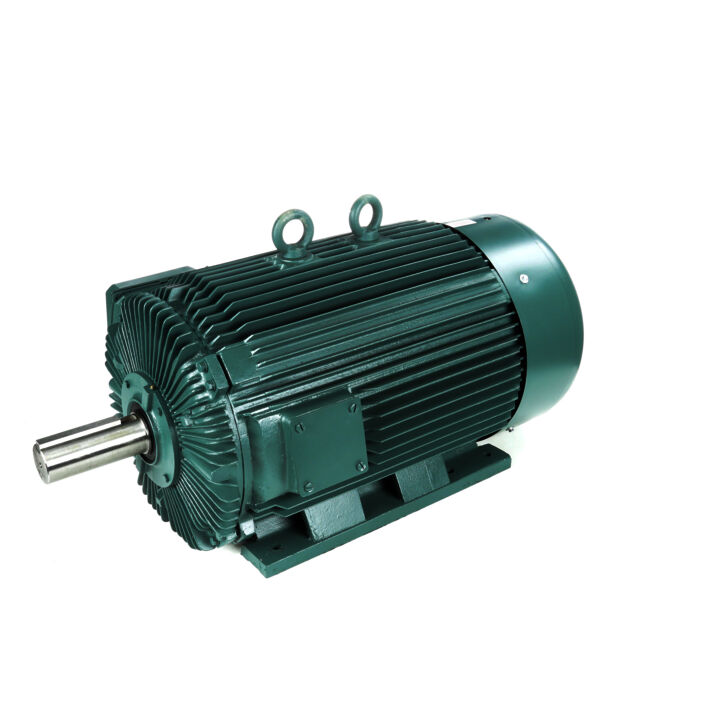

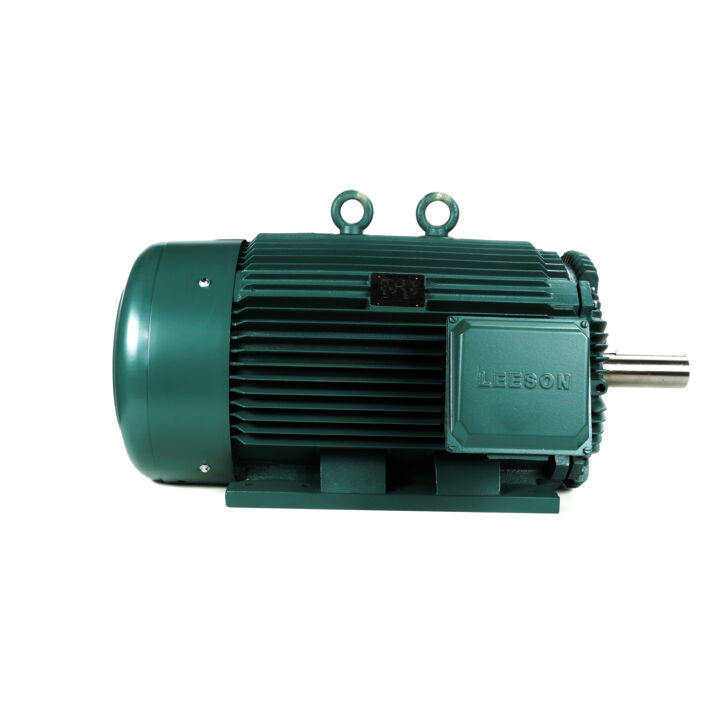

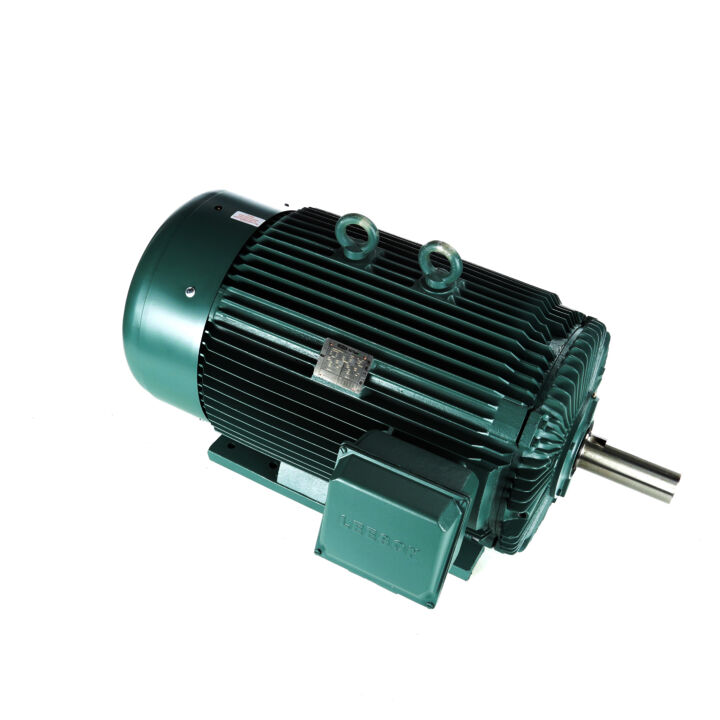

General Purpose Motor, 250 & 200 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 1800 & 1500 RPM, 447/449T Frame, TEFC
General Purpose Motor, 250 & 200 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 1800 & 1500 RPM, 447/449T Frame, TEFC
Part#: 171516.60
Catalog#: 171516.60
Model#: C449T17FB11AA
Weight: 2515 lb
Your Price: Login is Required
Key Features
- Premium efficient ratings; Inverter-rated
- Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
- Continuous duty; Dynamically balanced rotors
- Torques exceed NEMA performance standards; UL recognized and CSA certified
- WATTSaver ®e Premium efficient motors; Ultimate e Premium efficient motors
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 250 & 200 Hp |
| Output KW | Output KW: 187.0 & 149.0 kW | Voltage | Voltage: 460 & 380 V |
| Speed | Speed: 1789 & 1490 rpm | Service Factor | Service Factor: 1.15 & 1.15 |
| Frame | Frame: 447/449T | Enclosure | Enclosure: Totally Enclosed Fan Cooled |
| Thermal Protection | Thermal Protection: No Protection | Efficiency | Efficiency: 96.5 & 96.2 % |
| Ambient Temperature | Ambient Temperature: 40 °C | Frequency | Frequency: 60 & 50 Hz |
| Current | Current: 270 & 265 A | Power Factor | Power Factor: 90 |
| Duty | Duty: Continuous | Insulation Class | Insulation Class: F |
| Design Code | Design Code: B | KVA Code | KVA Code: F |
| Drive End Bearing Size | Drive End Bearing Size: 6319 | Opp Drive End Bearing Size | Opp Drive End Bearing Size: 6317 |
| UL | UL: Recognized | CSA | CSA: Y |
| CE | CE: Y | IP Code | IP Code: 43 |
| Number of Speeds | Number of Speeds: 1 |
| Electrical Type | Electrical Type: Squirrel Cage Inverter Rated | Starting Method | Starting Method: Wye Start Delta Run Or Inverter |
| Poles | Poles: 4 | Rotation | Rotation: Reversible |
| Mounting | Mounting: Rigid Base | Motor Orientation | Motor Orientation: Horizontal |
| Drive End Bearing | Drive End Bearing: Ball | Opp Drive End Bearing | Opp Drive End Bearing: Ball |
| Frame Material | Frame Material: Cast Iron | Shaft Type | Shaft Type: T |
| Overall Length | Overall Length: 53.14 in | Shaft Diameter | Shaft Diameter: 3.375 in |
| Shaft Extension | Shaft Extension: 8.5 in | Assembly/Box Mounting | Assembly/Box Mounting: F1/F2 CAPABLE |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: T |
| Current | Current: 270 A | Synchronous RPM | Synchronous RPM: 1800 & 1500 rpm |
| Frequency | Frequency: 60 Hz | Speed | Speed: 1789 rpm |
| Connection Drawing | Connection Drawing: 005190.01 | Outline Drawing | Outline Drawing: SS620857 |
| Voltage | Voltage: 460 V | Output KW | Output KW: 187 kW |
| Output HP | Output HP: 250 Hp | Frame Size | Frame Size: 449 |
| Efficiency | Efficiency: 96.5 % | Packaged Length | Packaged Length: 56.00 IN |
| Weight | Weight: 2515.00 LB | UPC | UPC: 691720043745 |
| Packaged Width | Packaged Width: 46.00 IN | Country of Origin | Country of Origin: China |
| Packaged Height | Packaged Height: 30.85 IN |
| % of Rated Load | 0% | 25% | 50% | 75% | 100% | 115% | 125% |
|---|---|---|---|---|---|---|---|
| % of Rated Load: Current (Amps) | 0%: 65.00 | 25%: 95.00 | 50%: 145.00 | 75%: 205.00 | 100%: 270.00 | 115%: 310.00 | 125%: 335.00 |
| % of Rated Load: Rated Output (KW) | 0%: 4.50 | 25%: 49.50 | 50%: 97.00 | 75%: 145.00 | 100%: 192.00 | 115%: 222.00 | 125%: 242.00 |
| % of Rated Load: Efficiency (%) | 0%: 0.0 | 25%: 94.5 | 50%: 96.5 | 75%: 96.8 | 100%: 96.5 | 115%: 96.5 | 125%: 96.5 |
| % of Rated Load: Power Factor (%) | 0%: 4.5 | 25%: 66.5 | 50%: 84.0 | 75%: 90.0 | 100%: 90.0 | 115%: 90.0 | 125%: 90.0 |
| % of Rated Load: Speed (RPM) | 0%: 1,800 | 25%: 1,798 | 50%: 1,795 | 75%: 1,792 | 100%: 1,789 | 115%: 1,787 | 125%: 1,786 |
| % of Rated Load: Temp. Rise @ FL | 0%: 0.0 | 25%: 0.0 | 50%: 0.0 | 75%: 0.0 | 100%: 80.0 | 115%: 110.0 | 125%: 0.0 |
| % of Rated Load: Torque (ft-lbs) | 0%: 0.00 | 25%: 183.00 | 50%: 366.00 | 75%: 549.00 | 100%: 734.00 | 115%: 845.00 | 125%: 919.00 |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
|---|---|---|---|---|---|---|---|---|
| Curvepoint: 2/3 | Current (Amps): 1,370.00 | Current (%): | Torque (ft-lbs): 1,225.00 | Torque (%): | Speed (RPM): 1,200 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 250.00 |
| Curvepoint: 1/3 | Current (Amps): 1,625.00 | Current (%): | Torque (ft-lbs): 990.00 | Torque (%): | Speed (RPM): 600 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 250.00 |
| Curvepoint: Pull-Up | Current (Amps): 1,540.00 | Current (%): | Torque (ft-lbs): 1,050.00 | Torque (%): | Speed (RPM): 900 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 250.00 |
| Curvepoint: No Load | Current (Amps): 65.00 | Current (%): | Torque (ft-lbs): 0.00 | Torque (%): 0.0 | Speed (RPM): 1,800 | Rated Output (KW): | Power Factor (%): 4.5 | Rated Output (Hp): 250.00 |
| Curvepoint: Full Load | Current (Amps): 270.00 | Current (%): 100.0 | Torque (ft-lbs): 734.00 | Torque (%): 100.0 | Speed (RPM): 1,789 | Rated Output (KW): | Power Factor (%): 90.0 | Rated Output (Hp): 250.00 |
| Curvepoint: Break-Down | Current (Amps): 1,125.00 | Current (%): | Torque (ft-lbs): 1,945.00 | Torque (%): 265.0 | Speed (RPM): 1,725 | Rated Output (KW): | Power Factor (%): 62.0 | Rated Output (Hp): 250.00 |
| Curvepoint: Locked-Rotor | Current (Amps): 1,710.00 | Current (%): | Torque (ft-lbs): 1,165.00 | Torque (%): 159.0 | Speed (RPM): 0 | Rated Output (KW): | Power Factor (%): 30.0 | Rated Output (Hp): 250.00 |
Efficiency
| Country | Complies with standards |
|---|---|
| Country: United States | Complies with standards: check_circle |
| Country: Canada | Complies with standards: check_circle |
| Country: Mexico | Complies with standards: check_circle |
| Country: Australia | Complies with standards: check_circle |
| Country: Brazil | Complies with standards: check_circle |
| Country: Chile | Complies with standards: check_circle |
| Country: China | Complies with standards: check_circle |
| Country: Europe | Complies with standards: check_circle |
| Country: Japan | Complies with standards: check_circle |
| Country: New Zealand | Complies with standards: check_circle |
| Country: Saudi Arabia | Complies with standards: check_circle |
| Country: South Korea | Complies with standards: check_circle |
