Brake Motor
Resource Center

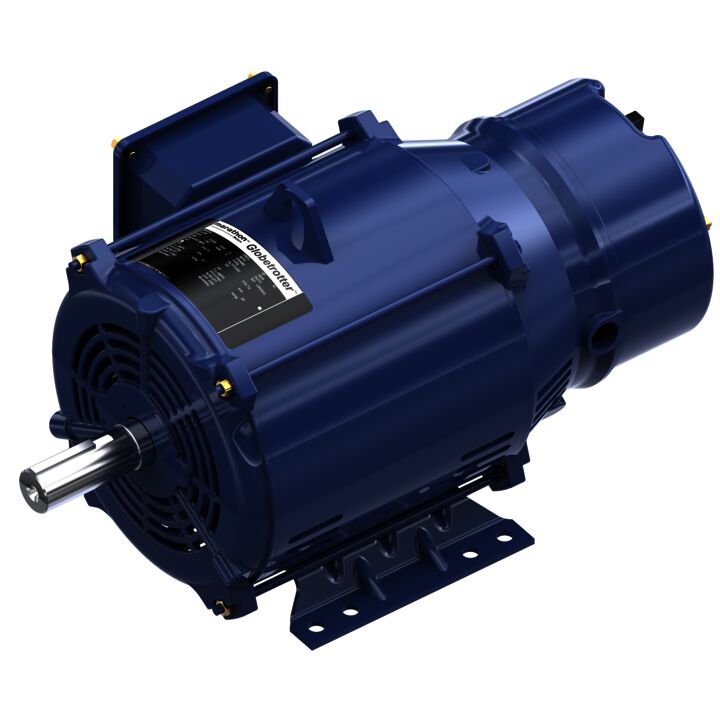

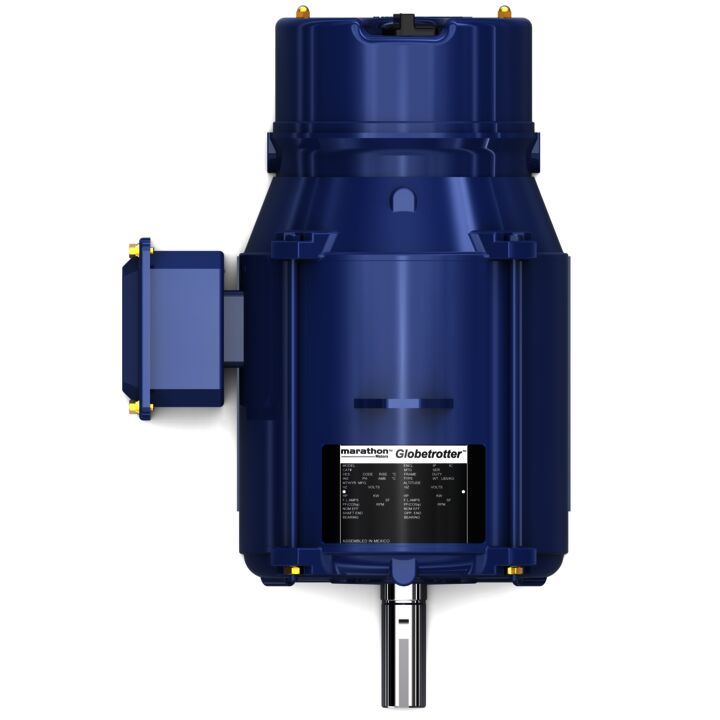

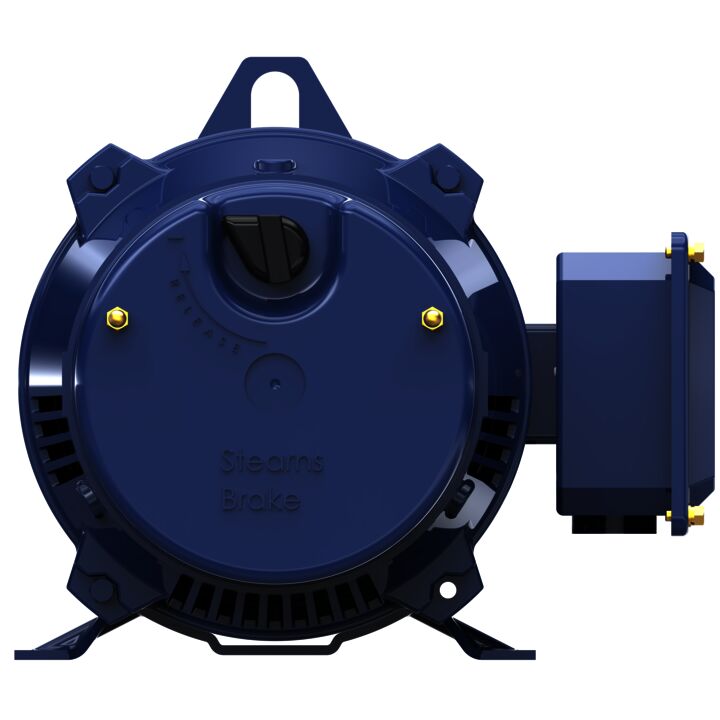

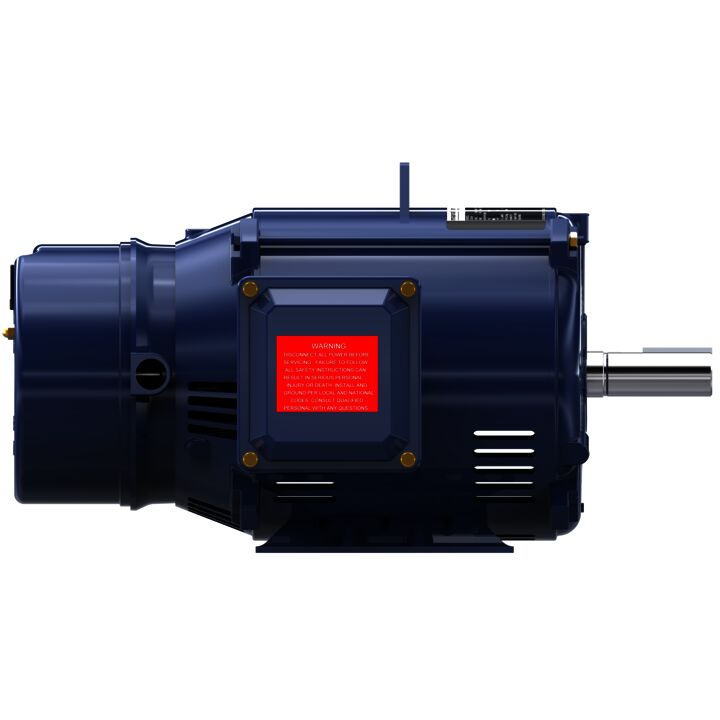

Brake Motor

Part#: 182TTDBD6341

Catalog#: K566

Weight: 70 lb

List Price: $2,540.00

location_on Where to Buy

Key Features

  • IP-22 rolled steel, Meets or exceeds NEMA Premium®* efficiencies, NEMA Premium models are in compliance with EISA2007
  • Class F Insulation System, Inverter duty 10:1 variable torque and 2:1 constant torque & 1.15 service factor on Sine Wave Power 1.0 SF on Inverter Power
  • F1/F2 capable, Dynamically balanced rotors, Steel conduit box
  • Dual Frame Mounting
  • Modifications and Kits are available
  • 40°C Ambient 1.15SF Sine Wave Power and 1.0SF inverter power
  • UL®* listed, UL certified for Canada and CE®* mark

Specifications

Shaft Diameter Shaft Diameter: 1.125 in
Connection Drawing Connection Drawing: EE7308 Outline Drawing Outline Drawing: SS621111-100
Packaged Length Packaged Length: 22.19 IN Weight Weight: 70.00 LB
UPC UPC: 722856211828 Packaged Width Packaged Width: 16.50 IN
Country of Origin Country of Origin: Mexico Packaged Height Packaged Height: 14.00 IN

Efficiency

Information not available at the moment. Please check back later!
