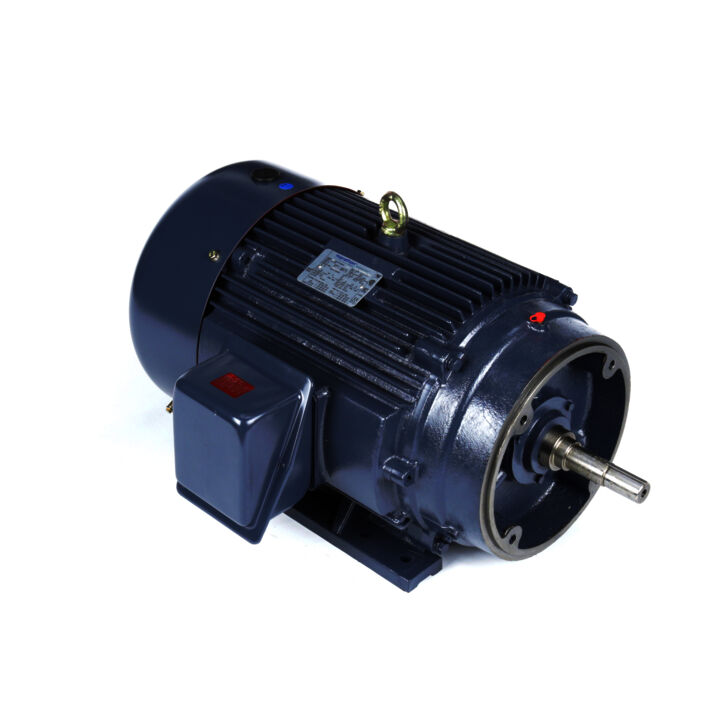

MODEL-IHP
Part#: E8020
Catalog#: E8020
Weight: 616 lb
Your Price: Login is Required
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 30 Hp |
| Output KW | Output KW: 22.4 kW | Voltage | Voltage: 230/460 V |
| Speed | Speed: 1180 rpm | Service Factor | Service Factor: 1.15 |
| Frame | Frame: 326T | Efficiency | Efficiency: 93 % |
| Ambient Temperature | Ambient Temperature: 40 °C | Frequency | Frequency: 60 Hz |
| Current | Current: 70/35.0 A | Duty | Duty: Continuous |
| Insulation Class | Insulation Class: F |
| Rotation | Rotation: Reversible | Drive End Bearing | Drive End Bearing: 313 |
| Opp Drive End Bearing | Opp Drive End Bearing: 311 |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: T |
| Frequency | Frequency: 60 Hz | Speed | Speed: 1180 rpm |
| Voltage | Voltage: 230/460 V | Output KW | Output KW: 22.4 kW |
| Output HP | Output HP: 30 Hp | Frame Size | Frame Size: 326 |
| Efficiency | Efficiency: 93 % | Weight | Weight: 616.00 LB |
