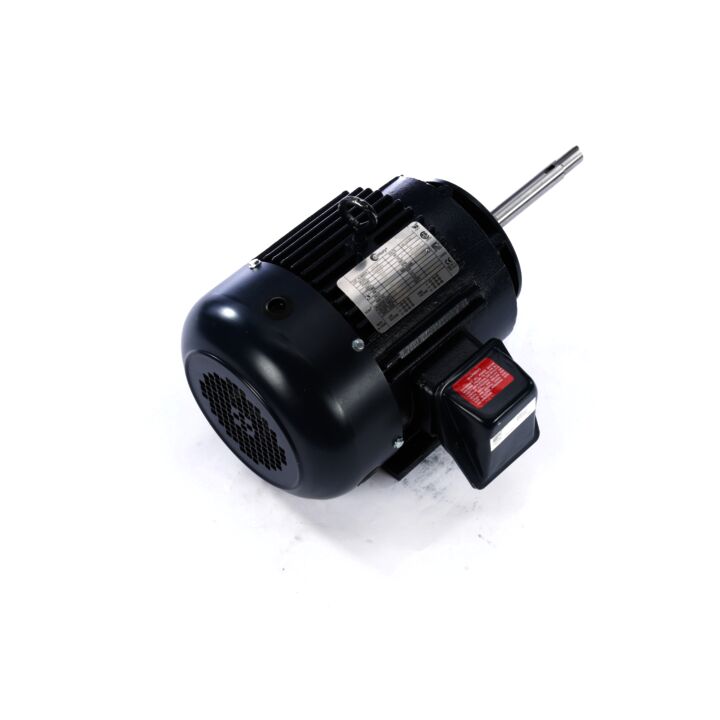

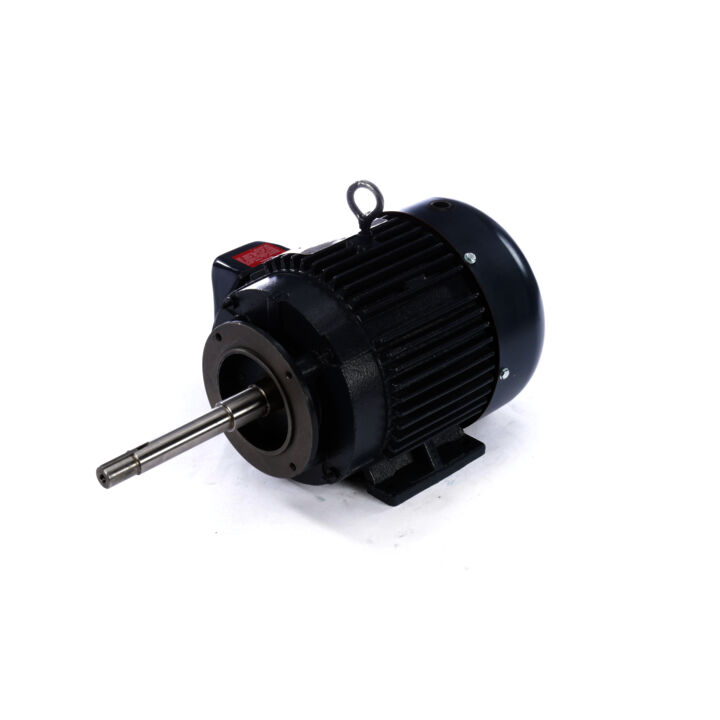

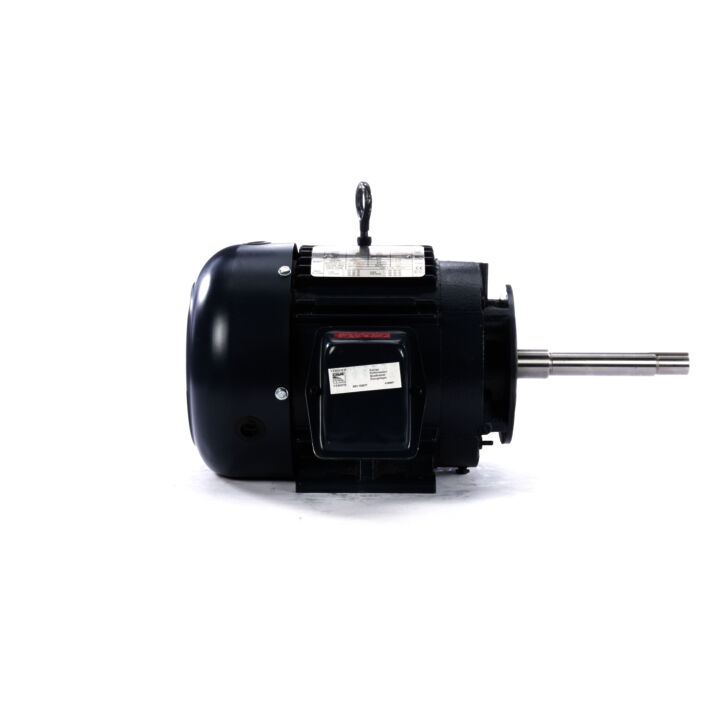

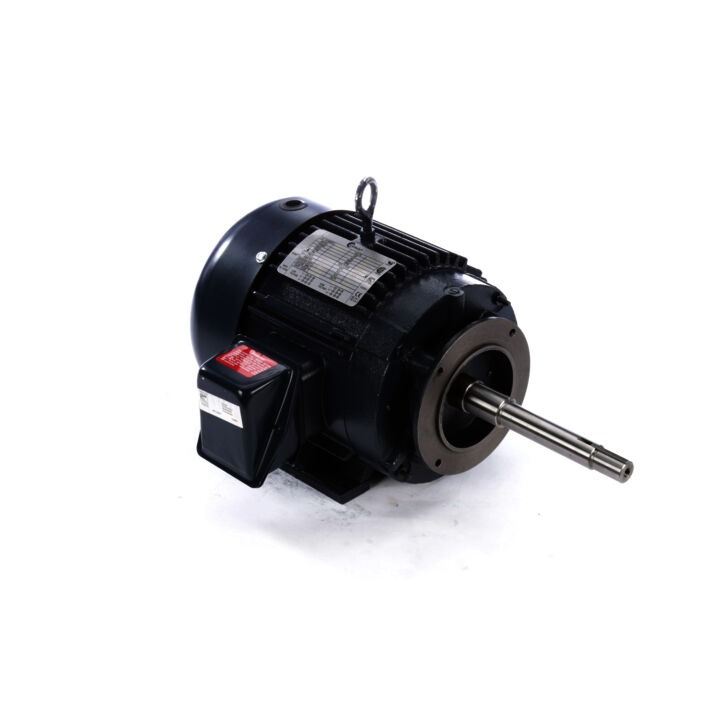

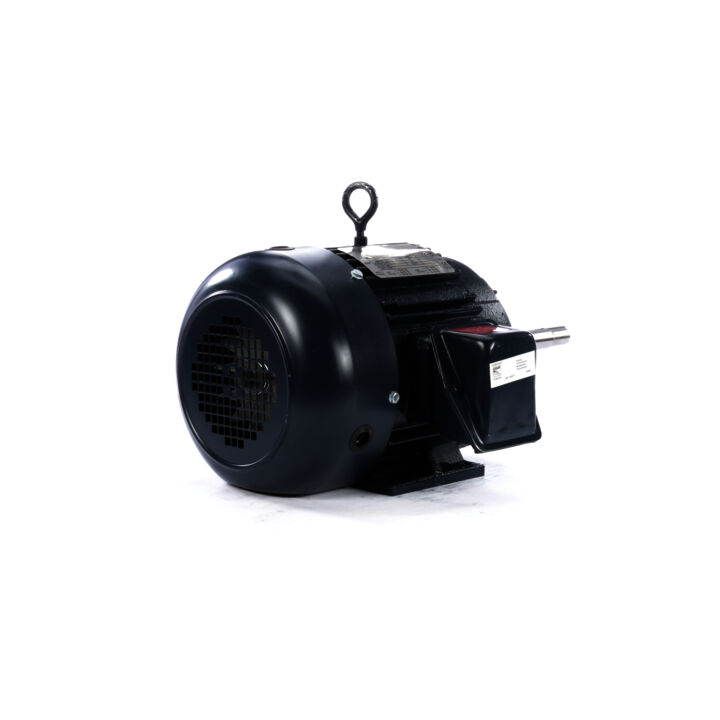

Close-Coupled Pump Motor, 3 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, 182JP Frame, TEFC
Close-Coupled Pump Motor, 3 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, 182JP Frame, TEFC
Part#: CPE25
Catalog#: CPE25
Weight: 93 lb
Your Price: Login is Required
Key Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2025
- Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
- 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 3 Hp |
| Output KW | Output KW: 2.2 kW | Voltage | Voltage: 208-230/460 V |
| Speed | Speed: 3475 rpm | Service Factor | Service Factor: 1.15 |
| Frame | Frame: 182JP | Enclosure | Enclosure: Totally Enclosed Fan Cooled |
| Thermal Protection | Thermal Protection: No Protection | Ambient Temperature | Ambient Temperature: 40 °C |
| Frequency | Frequency: 60 Hz | Current | Current: 8.4-7.6/3.8 A |
| Duty | Duty: Continuous | Insulation Class | Insulation Class: F |
| UL | UL: Recognized | CSA | CSA: Y |
| Number of Speeds | Number of Speeds: 1 |
| Electrical Type | Electrical Type: POLYPHASE | Starting Method | Starting Method: Across The Line |
| Poles | Poles: 2 | Rotation | Rotation: Reversible |
| Mounting | Mounting: Rigid Base | Drive End Bearing | Drive End Bearing: Ball |
| Opp Drive End Bearing | Opp Drive End Bearing: Ball | Frame Material | Frame Material: Cast Iron |
| Shaft Type | Shaft Type: Keyed | Overall Length | Overall Length: 18.95 in |
| Frame Length | Frame Length: 5.74 in | Shaft Diameter | Shaft Diameter: 1.249 in |
| Shaft Extension | Shaft Extension: 5.92 in |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: JP |
| Synchronous RPM | Synchronous RPM: 3600 rpm | Frequency | Frequency: 60 Hz |
| Speed | Speed: 3475 rpm | Connection Drawing | Connection Drawing: A-EE7308 |
| Outline Drawing | Outline Drawing: SS620618 | Voltage | Voltage: 208-230/460 V |
| Output KW | Output KW: 2.2 kW | Output HP | Output HP: 3 Hp |
| Frame Size | Frame Size: 182 | Packaged Length | Packaged Length: 20.33 IN |
| Weight | Weight: 93.00 LB | UPC | UPC: 786674064622 |
| Packaged Width | Packaged Width: 14.46 IN | HTC | HTC: 8501.52.4000 |
| Country of Origin | Country of Origin: China | Packaged Height | Packaged Height: 17.90 IN |
Efficiency
Information not available at the moment. Please check back later!
