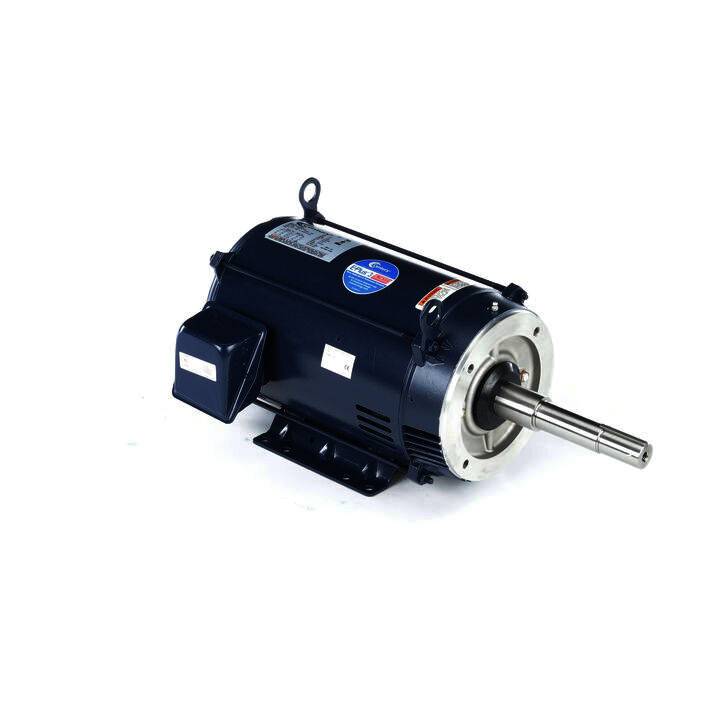

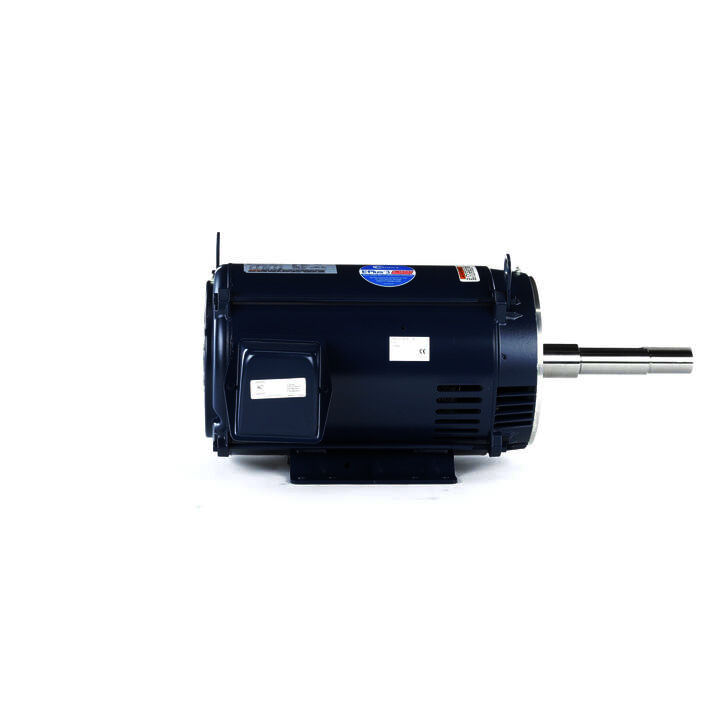

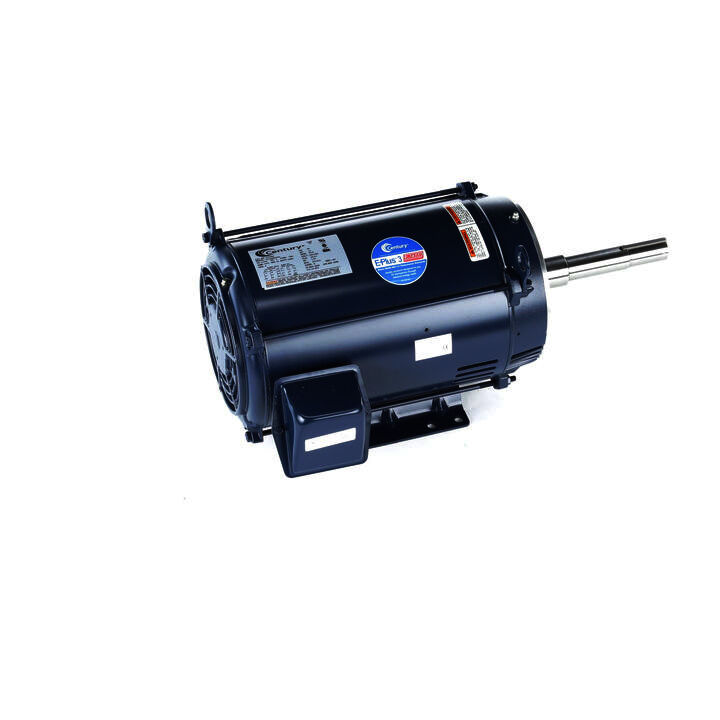

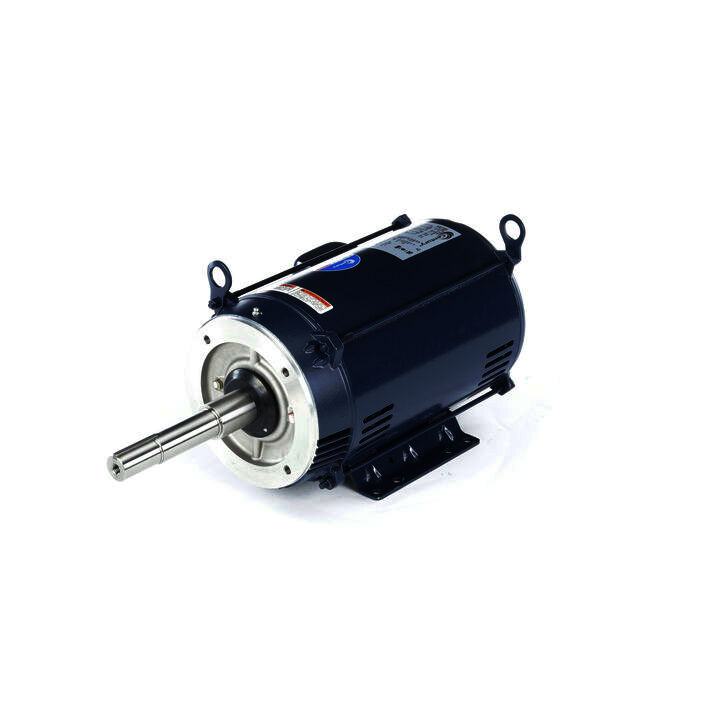

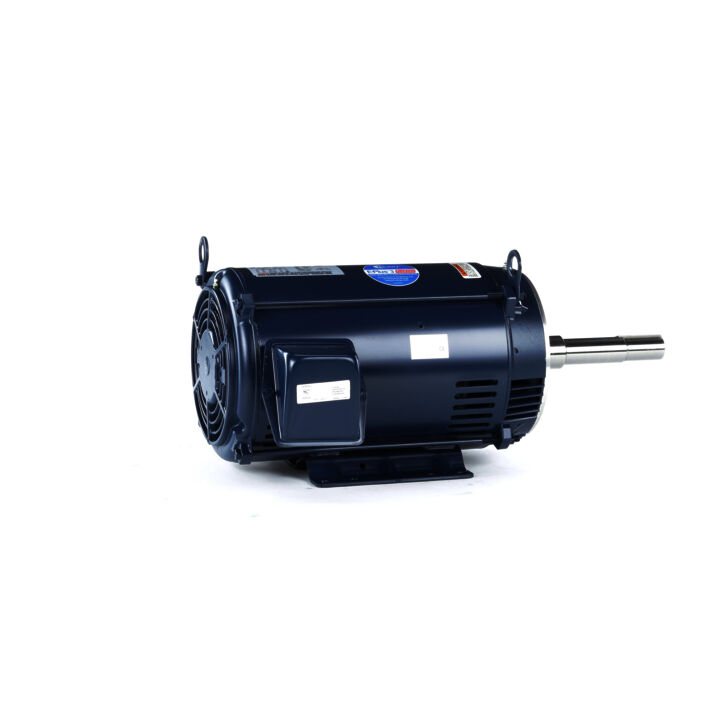

Close-Coupled Pump Motor, 15 HP, 3 Ph, 60 Hz, 230/460 V, 3600 RPM, 215JP Frame, ODP

Part#: E378M2

Catalog#: E378M2

Weight: 144 lb

location_on Where to Buy

Key Features

  • Oversized locked shaft end bearing
  • External slinger

Specifications

Phase Phase: 3 Output HP Output HP: 15 Hp
Output KW Output KW: 11.2 kW Voltage Voltage: 230/460 V
Speed Speed: 3510 rpm Service Factor Service Factor: 1.15
Frame Frame: 215JP Enclosure Enclosure: Open Drip Proof
Thermal Protection Thermal Protection: No Protection Ambient Temperature Ambient Temperature: 40 °C
Frequency Frequency: 60 Hz Current Current: 34/17 A
Duty Duty: Continuous Insulation Class Insulation Class: F
UL UL: Recognized CSA CSA: Y
Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: Polyphase Starting Method Starting Method: Across The Line
Poles Poles: 2 Rotation Rotation: Reversible
Mounting Mounting: Rigid Base Drive End Bearing Drive End Bearing: Ball
Opp Drive End Bearing Opp Drive End Bearing: Ball Frame Material Frame Material: Rolled Steel
Shaft Type Shaft Type: Keyed Overall Length Overall Length: 24.28 in
Frame Length Frame Length: 12.40 in Shaft Diameter Shaft Diameter: 1.750 in
Shaft Extension Shaft Extension: 8.12 in
Service Factor Service Factor: 1.15 Frame Suffix Frame Suffix: JP
Current Current: 34.0/17.0 A Synchronous RPM Synchronous RPM: 3600 rpm
Frequency Frequency: 60 Hz Speed Speed: 3510 rpm
Connection Drawing Connection Drawing: A-EE7308-CY Outline Drawing Outline Drawing: SS86594CY
Voltage Voltage: 230/460 V Output KW Output KW: 11.2 kW
Output HP Output HP: 15 Hp Frame Size Frame Size: 215
Packaged Length Packaged Length: 28.38 IN Weight Weight: 144.00 LB
UPC UPC: 786674066985 Packaged Width Packaged Width: 14.50 IN
Country of Origin Country of Origin: Mexico Packaged Height Packaged Height: 12.88 IN

Efficiency

Information not available at the moment. Please check back later!
