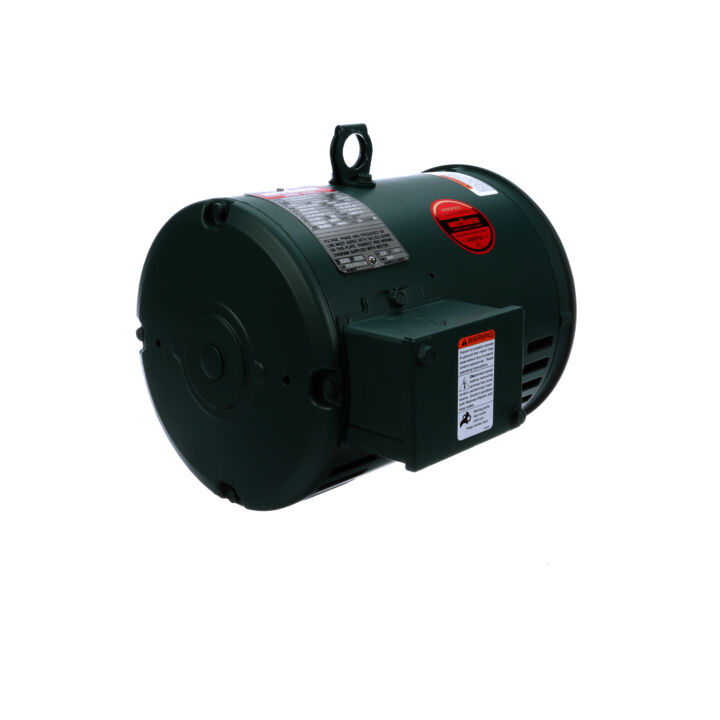

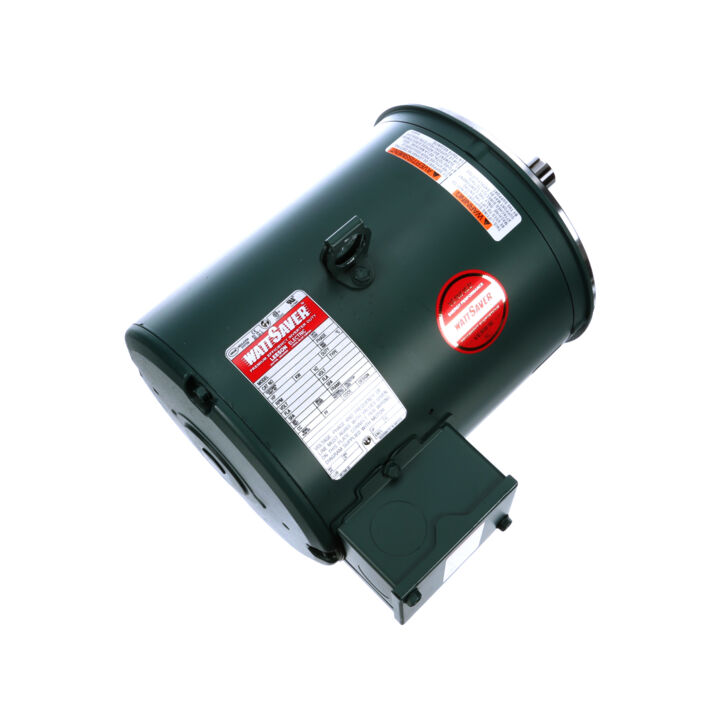

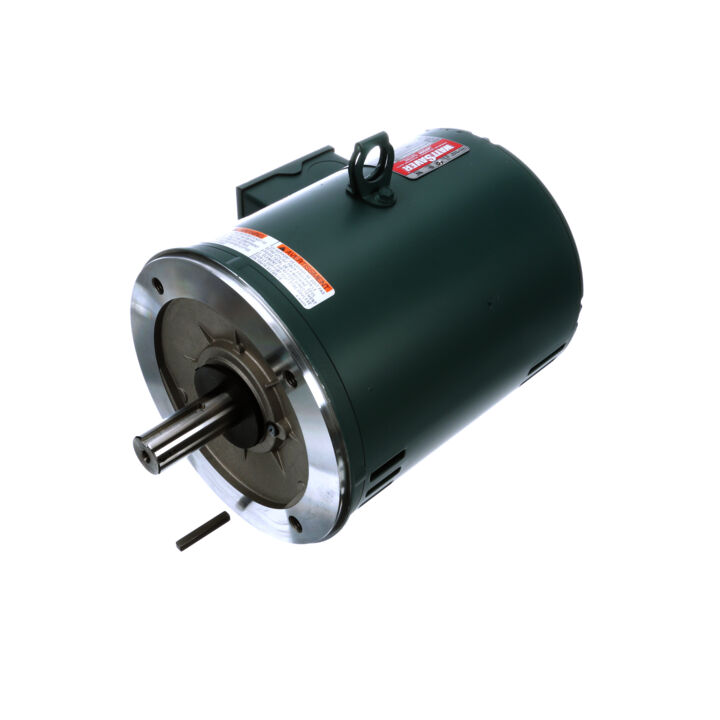

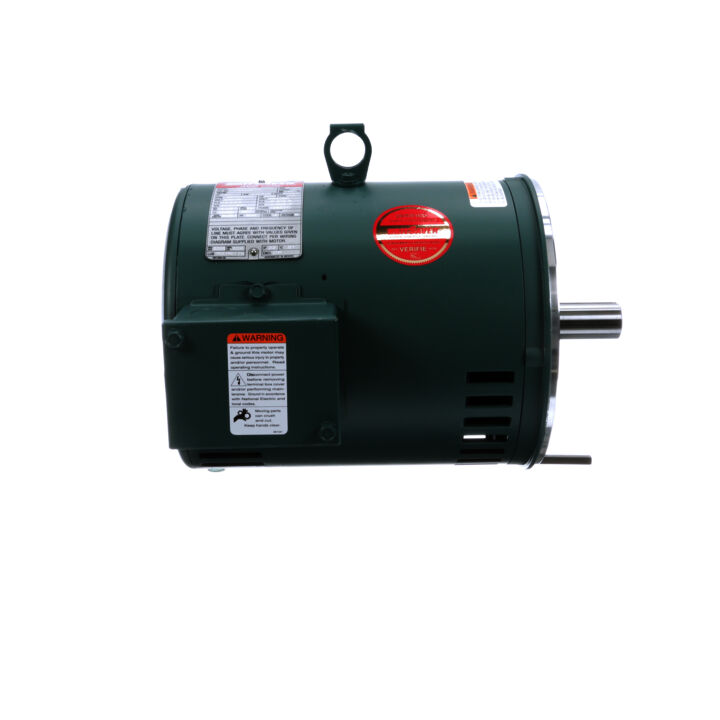

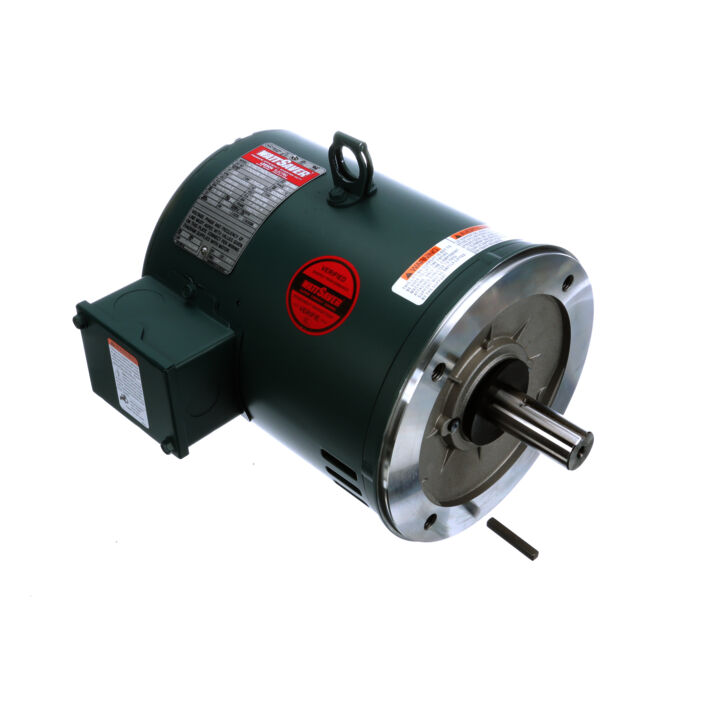

OBSOLETE REPLACED BY 132426.00 - ..5HP..3500RPM.182TC.DP.230/460V.3PH.60HZ.CONTINUOUS.40C.1.15 S.F..C FACE.C182T34DC11A.............

Part#: G131779.00

Catalog#: G131779.00

Model#: C182T34DC11A A

Weight: 63 lb

location_on Where to Buy

Compare Product

Specifications

Phase	Phase: 3	Output HP	Output HP: 5 & 3 Hp
Output KW	Output KW: 3.7 & 2.2 kW	Voltage	Voltage: 230/460 & 190/380 V
Speed	Speed: 3500 & 2920 rpm	Service Factor	Service Factor: 1.15 & 1.15
Frame	Frame: 182TC	Enclosure	Enclosure: Drip Proof
Thermal Protection	Thermal Protection: No Protection	Efficiency	Efficiency: 85.5 %
Ambient Temperature	Ambient Temperature: 40 °C	Frequency	Frequency: 60 & 50 Hz
Current	Current: 12.2/6.1 & 9.4/4.7 A	Power Factor	Power Factor: 90
Duty	Duty: Continuous	Insulation Class	Insulation Class: F
Design Code	Design Code: B	KVA Code	KVA Code: J
Drive End Bearing Size	Drive End Bearing Size: 6206	Opp Drive End Bearing Size	Opp Drive End Bearing Size: 6205
UL	UL: Recognized	CSA	CSA: Y
CE	CE: Y	IP Code	IP Code: 22
Number of Speeds	Number of Speeds: 1

Electrical Type	Electrical Type: Squirrel Cage Induction Run	Starting Method	Starting Method: Across The Line
Poles	Poles: 2	Rotation	Rotation: Reversible
Resistance Main	Resistance Main: 2.74 Ohms	Mounting	Mounting: Round
Drive End Bearing	Drive End Bearing: Ball	Opp Drive End Bearing	Opp Drive End Bearing: Ball
Frame Material	Frame Material: Rolled Steel	Shaft Type	Shaft Type: T
Assembly/Box Mounting	Assembly/Box Mounting: VERIFY

Service Factor	Service Factor: 1.15	Frame Suffix	Frame Suffix: TC
Current	Current: 12.2/6.1 A	Synchronous RPM	Synchronous RPM: 3600 & 3000 rpm
Frequency	Frequency: 60 Hz	Speed	Speed: 3500 rpm
Connection Drawing	Connection Drawing: 005010.01	Outline Drawing	Outline Drawing: 035344-900
Voltage	Voltage: 230/460 V	Output KW	Output KW: 3.7 kW
Output HP	Output HP: 5 Hp	Frame Size	Frame Size: 182
Efficiency	Efficiency: 85.5 %	Weight	Weight: 63.00 LB
UPC	UPC: 691720000441	Country of Origin	Country of Origin: Mexico

% of Rated Load	0%	25%	50%	75%	100%	125%	150%
% of Rated Load: Current (Amps)	0%: 2.45	25%: 2.54	50%: 3.51	75%: 4.71	100%: 6.02	125%: 7.59	150%: 9.05
% of Rated Load: Rated Output (KW)	0%: 0.29	25%: 1.24	50%: 2.24	75%: 3.29	100%: 4.33	125%: 5.45	150%: 6.56
% of Rated Load: Efficiency (%)	0%: 0.0	25%: 77.6	50%: 85.6	75%: 85.2	100%: 85.9	125%: 84.8	150%: 83.8
% of Rated Load: Power Factor (%)	0%: 14.9	25%: 61.4	50%: 80.1	75%: 87.6	100%: 90.3	125%: 90.1	150%: 90.9
% of Rated Load: Speed (RPM)	0%: 3,598	25%: 3,572	50%: 3,548	75%: 3,519	100%: 3,491	125%: 3,460	150%: 3,423
% of Rated Load: Temp. Rise @ FL	0%: 0.0	25%: 0.0	50%: 0.0	75%: 0.0	100%: 42.0	125%: 0.0	150%: 0.0
% of Rated Load: Torque (ft-lbs)	0%: 0.00	25%: 1.90	50%: 3.80	75%: 5.60	100%: 7.50	125%: 9.40	150%: 11.30

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Curvepoint: Break-Down	Current (Amps): 0.00	Current (%):	Torque (ft-lbs): 25.60	Torque (%): 341.0	Speed (RPM): 0	Rated Output (KW):	Power Factor (%):	Rated Output (Hp): 5.00
Curvepoint: Full Load	Current (Amps): 6.10	Current (%):	Torque (ft-lbs): 7.50	Torque (%): 100.0	Speed (RPM): 0	Rated Output (KW):	Power Factor (%):	Rated Output (Hp): 5.00
Curvepoint: Locked-Rotor	Current (Amps): 49.00	Current (%):	Torque (ft-lbs): 19.60	Torque (%): 261.0	Speed (RPM): 0	Rated Output (KW):	Power Factor (%):	Rated Output (Hp): 5.00
Curvepoint: Pull-Up	Current (Amps): 0.00	Current (%):	Torque (ft-lbs): 19.20	Torque (%): 256.0	Speed (RPM): 0	Rated Output (KW):	Power Factor (%):	Rated Output (Hp): 5.00
