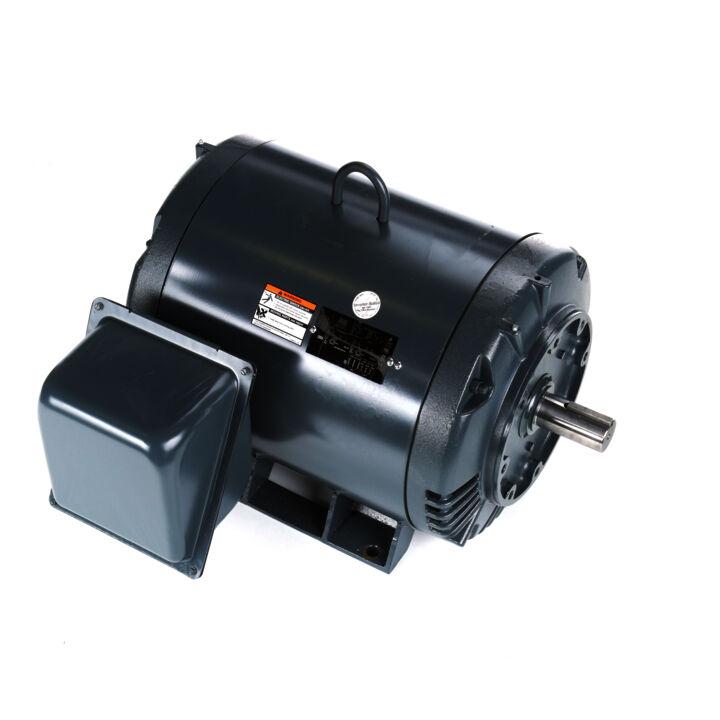

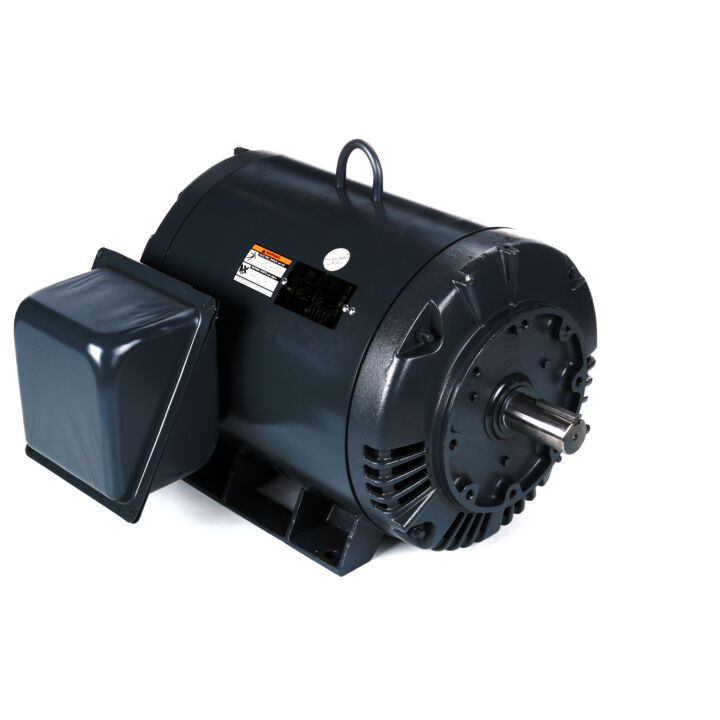

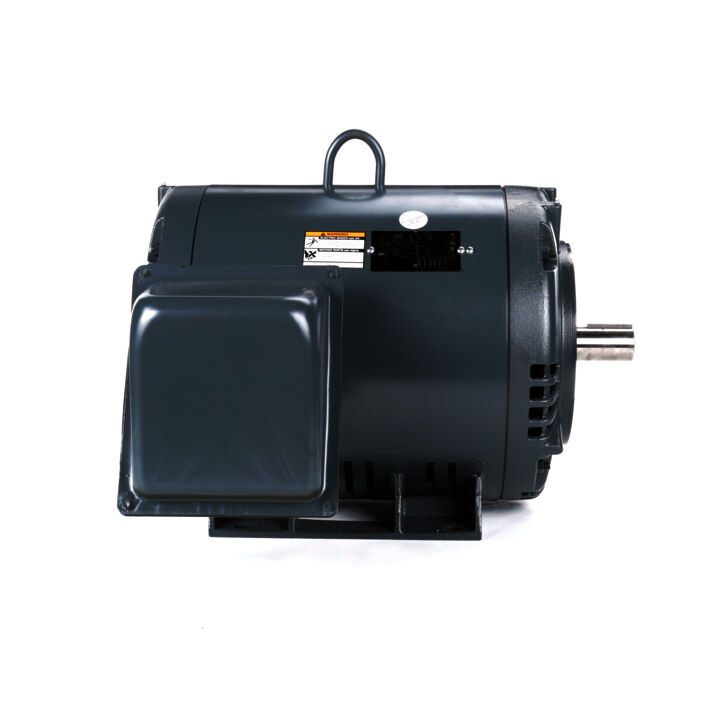

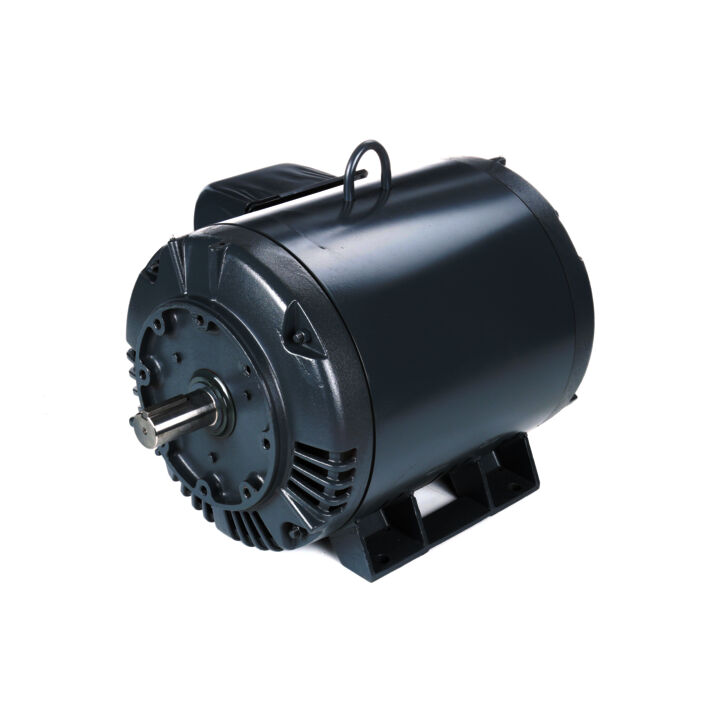

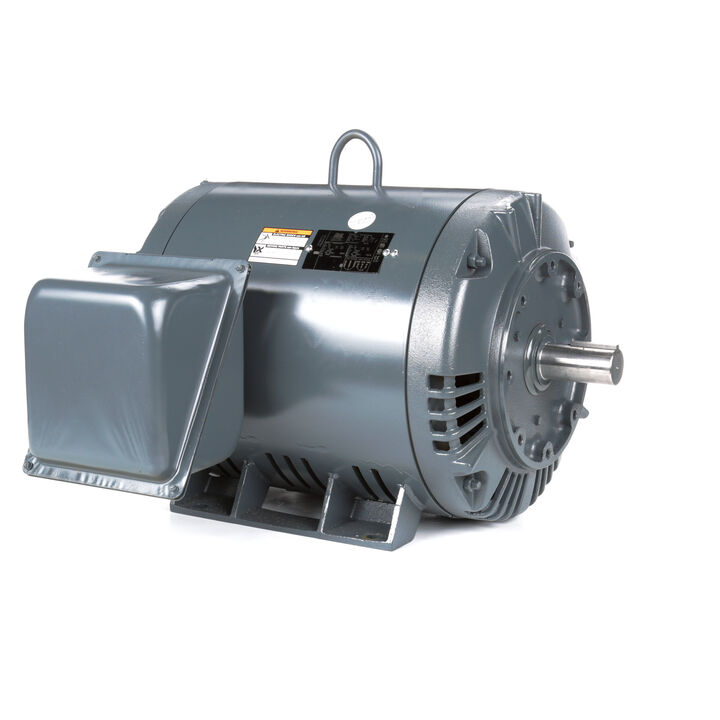

General Purpose Motor, 100 & 75 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 404TSC Frame, DP
Resource Center

General Purpose Motor, 100 & 75 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 404TSC Frame, DP

Part#: LM32788

Catalog#: LM32788

Model#: SD4B100TSC61Y

Weight: 898 lb

List Price: $24,548.00

location_on Where to Buy

Key Features

  • Premium efficient ratings
  • Inverter-rated; Nameplated for 50 Hz operation
  • Class B insulation systems, Class F 140 frame and higher
  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
  • Rolled steel and cast iron designs
  • UL recognized and CSA certified

Specifications

Phase Phase: 3 Output HP Output HP: 100 & 75 Hp
Output KW Output KW: 75.0 & 56.0 kW Voltage Voltage: 230/460 & 190/380 V
Speed Speed: 1784 & 1485 rpm Service Factor Service Factor: 1.25 & 1.15
Frame Frame: 404TSC Enclosure Enclosure: Drip Proof
Thermal Protection Thermal Protection: No Protection Efficiency Efficiency: 95.4 & 94.1 %
Ambient Temperature Ambient Temperature: 40 °C Frequency Frequency: 60 & 50 Hz
Current Current: 260/130 & 240/120 A Power Factor Power Factor: 75
Duty Duty: Continuous Insulation Class Insulation Class: F
Design Code Design Code: B KVA Code KVA Code: F
Drive End Bearing Size Drive End Bearing Size: 315 Opp Drive End Bearing Size Opp Drive End Bearing Size: 313
UL UL: Recognized CSA CSA: Y
CE CE: Y IP Code IP Code: 22
Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: Squirrel Cage Induction Run Starting Method Starting Method: Wye Start Delta Run
Poles Poles: 4 Rotation Rotation: Reversible
Resistance Main Resistance Main: .0449 Ohms Mounting Mounting: Rigid Base
Motor Orientation Motor Orientation: Horizontal Drive End Bearing Drive End Bearing: Ball
Opp Drive End Bearing Opp Drive End Bearing: Ball Frame Material Frame Material: Rolled Steel
Shaft Type Shaft Type: TS Overall Length Overall Length: 29.16 in
Frame Length Frame Length: 17.35 in Shaft Diameter Shaft Diameter: 2.125 in
Shaft Extension Shaft Extension: 4.25 in Assembly/Box Mounting Assembly/Box Mounting: F1 ONLY
Service Factor Service Factor: 1.25 Frame Suffix Frame Suffix: TSC
Current Current: 260.0/130.0 A Synchronous RPM Synchronous RPM: 1800 & 1500 rpm
Frequency Frequency: 60 Hz Speed Speed: 1784 rpm
Connection Drawing Connection Drawing: EE7308AA-LN Outline Drawing Outline Drawing: XJ2D1SC2-1735
Voltage Voltage: 230/460 V Output KW Output KW: 75 kW
Output HP Output HP: 100 Hp Frame Size Frame Size: 404
Torque UOM Torque UOM: LB-FT Efficiency Efficiency: 95.4 %
Packaged Length Packaged Length: 33.00 IN Weight Weight: 898.00 LB
UPC UPC: 691720019122 Packaged Width Packaged Width: 32.00 IN
Country of Origin Country of Origin: United States of America Packaged Height Packaged Height: 26.10 IN
% of Rated Load0%25%50%75%100%115%125%
% of Rated Load: Current (Amps) 0%: 58.00 25%: 64.00 50%: 80.00 75%: 102.00 100%: 126.00 115%: 144.00 125%: 154.00
% of Rated Load: Rated Output (KW) 0%: 1.70 25%: 20.50 50%: 39.50 75%: 59.00 100%: 78.50 115%: 90.50 125%: 98.50
% of Rated Load: Efficiency (%) 0%: 0.0 25%: 90.2 50%: 94.1 75%: 95.0 100%: 95.4 115%: 95.0 125%: 95.0
% of Rated Load: Power Factor (%) 0%: 3.5 25%: 40.0 50%: 62.0 75%: 72.0 100%: 78.0 115%: 79.0 125%: 80.0
% of Rated Load: Speed (RPM) 0%: 1,800 25%: 1,796 50%: 1,792 75%: 1,788 100%: 1,785 115%: 1,782 125%: 1,780
% of Rated Load: Temp. Rise @ FL 0%: 0.0 25%: 0.0 50%: 0.0 75%: 0.0 100%: 45.0 115%: 65.0 125%: 80.0
% of Rated Load: Torque (ft-lbs) 0%: 0.00 25%: 73.00 50%: 147.00 75%: 220.00 100%: 294.00 115%: 339.00 125%: 369.00
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Curvepoint: 2/3 Current (Amps): 550.00 Current (%): 423.0 Torque (ft-lbs): 525.00 Torque (%): 178.0 Speed (RPM): 1,200 Rated Output (KW): Power Factor (%): Rated Output (Hp): 100.00
Curvepoint: Break-Down Current (Amps): 397.00 Current (%): 305.0 Torque (ft-lbs): 718.00 Torque (%): 244.0 Speed (RPM): 1,700 Rated Output (KW): Power Factor (%): 61.0 Rated Output (Hp): 100.00
Curvepoint: 1/3 Current (Amps): 680.00 Current (%): 523.0 Torque (ft-lbs): 425.00 Torque (%): 144.0 Speed (RPM): 600 Rated Output (KW): Power Factor (%): Rated Output (Hp): 100.00
Curvepoint: No Load Current (Amps): 56.00 Current (%): 51.0 Torque (ft-lbs): 0.00 Torque (%): 0.0 Speed (RPM): 1,800 Rated Output (KW): Power Factor (%): 4.0 Rated Output (Hp): 100.00
Curvepoint: Pull-Up Current (Amps): 600.00 Current (%): 461.0 Torque (ft-lbs): 450.00 Torque (%): 153.0 Speed (RPM): 900 Rated Output (KW): Power Factor (%): Rated Output (Hp): 100.00
Curvepoint: Locked-Rotor Current (Amps): 725.00 Current (%): 570.0 Torque (ft-lbs): 578.00 Torque (%): 196.0 Speed (RPM): 0 Rated Output (KW): Power Factor (%): 30.0 Rated Output (Hp): 100.00
Curvepoint: Full Load Current (Amps): 126.00 Current (%): 100.0 Torque (ft-lbs): 294.00 Torque (%): 100.0 Speed (RPM): 1,785 Rated Output (KW): Power Factor (%): 78.0 Rated Output (Hp): 100.00
