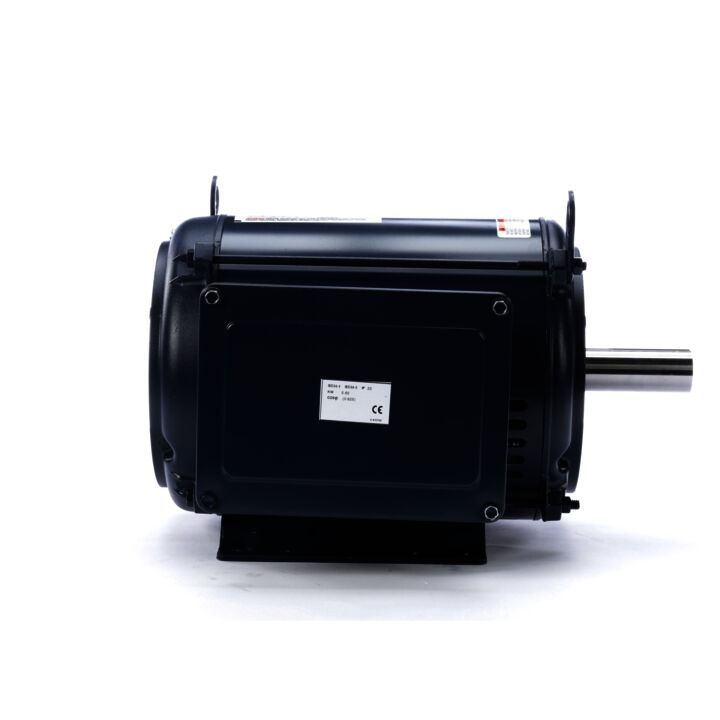

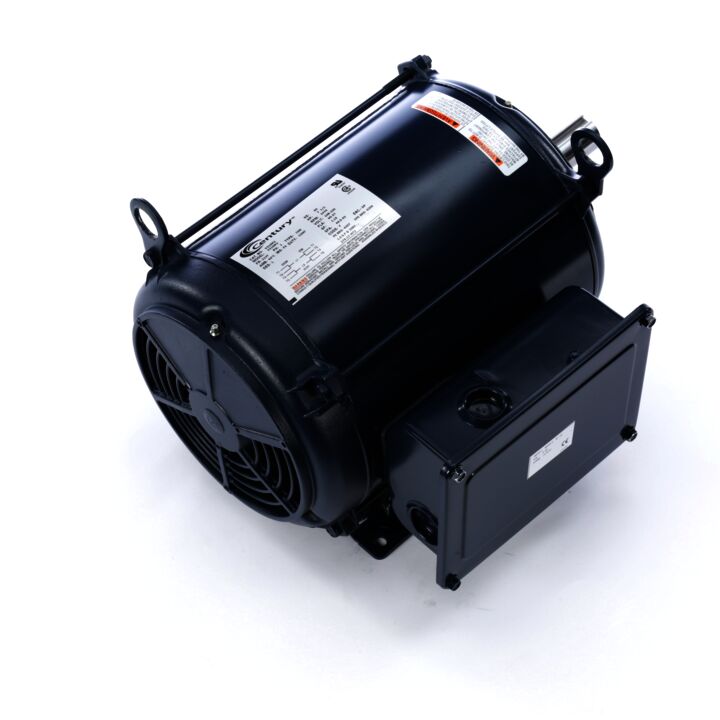

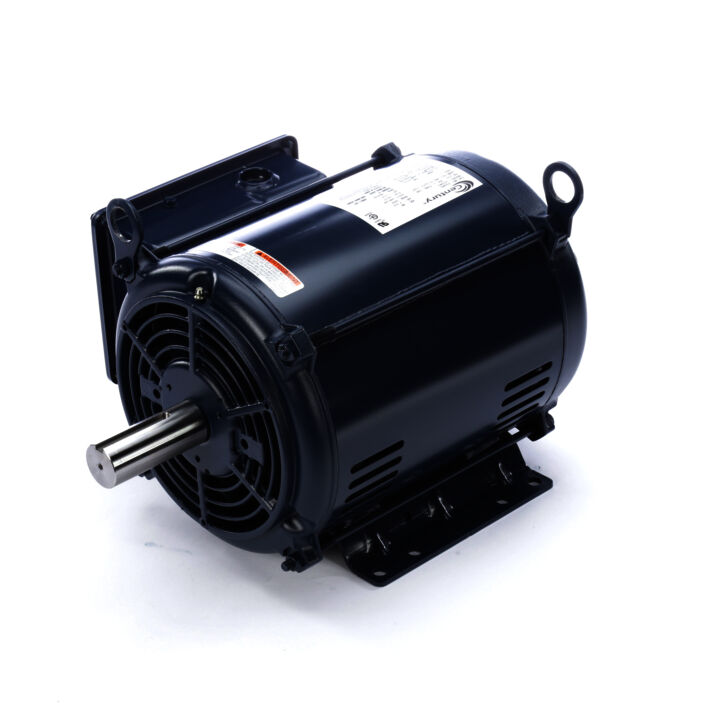

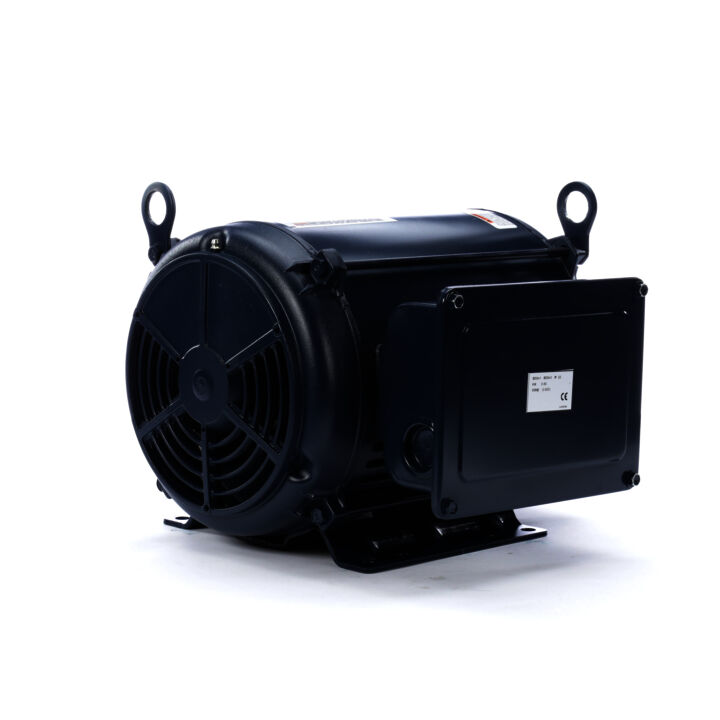

General Purpose Motor, 7.5 HP, 1 Ph, 60 Hz, 208-230 V, 3600 RPM, 213T Frame, ODP

Part#: V310M2

Catalog#: V310M2

Weight: 87 lb

location_on Where to Buy

Key Features

  • Heavy gauge steel frame and base

Specifications

Phase Phase: 1 Output HP Output HP: 7.5 Hp
Output KW Output KW: 5.6 kW Voltage Voltage: 208-230 V
Speed Speed: 3470 rpm Service Factor Service Factor: 1.15
Frame Frame: 213T Enclosure Enclosure: Open Drip Proof
Thermal Protection Thermal Protection: No Protection Ambient Temperature Ambient Temperature: 40 °C
Frequency Frequency: 60 Hz Duty Duty: Continuous
Insulation Class Insulation Class: F UL UL: Recognized
CSA CSA: Y CE CE: Y
Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: Capacitor Start Starting Method Starting Method: Across The Line
Poles Poles: 2 Rotation Rotation: Counterclockwise
Mounting Mounting: Rigid Base Drive End Bearing Drive End Bearing: Ball
Opp Drive End Bearing Opp Drive End Bearing: Ball Frame Material Frame Material: Rolled Steel
Shaft Type Shaft Type: Keyed Overall Length Overall Length: 16.55 in
Frame Length Frame Length: 9.65 in Shaft Diameter Shaft Diameter: 1.375 in
Shaft Extension Shaft Extension: 3.47 in
Service Factor Service Factor: 1.15 Frame Suffix Frame Suffix: T
Current Current: 40.0-37.0 A Synchronous RPM Synchronous RPM: 3600 rpm
Frequency Frequency: 60 Hz Speed Speed: 3470 rpm
Connection Drawing Connection Drawing: A-EE7090JR-CY Outline Drawing Outline Drawing: 037642CY
Voltage Voltage: 208-230 V Output KW Output KW: 5.6 kW
Output HP Output HP: 7.50 Hp Frame Size Frame Size: 213
Packaged Length Packaged Length: 22.19 IN Weight Weight: 87.00 LB
UPC UPC: 786674067074 Packaged Width Packaged Width: 16.50 IN
Country of Origin Country of Origin: Mexico Packaged Height Packaged Height: 14.00 IN

Efficiency

Information not available at the moment. Please check back later!
