Cast Iron Motor, 3 & 2 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 1800 & 1500 RPM, 100L Frame, TEFC
Resource Center

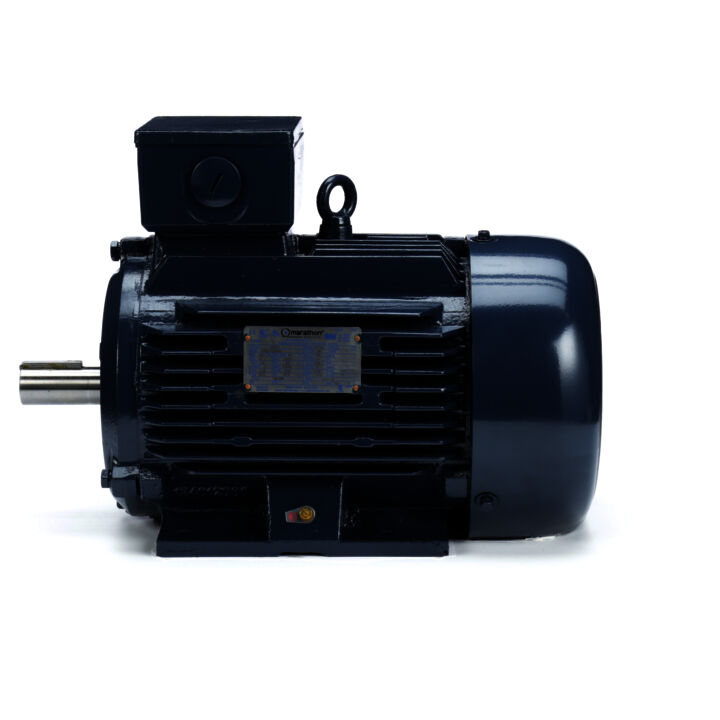

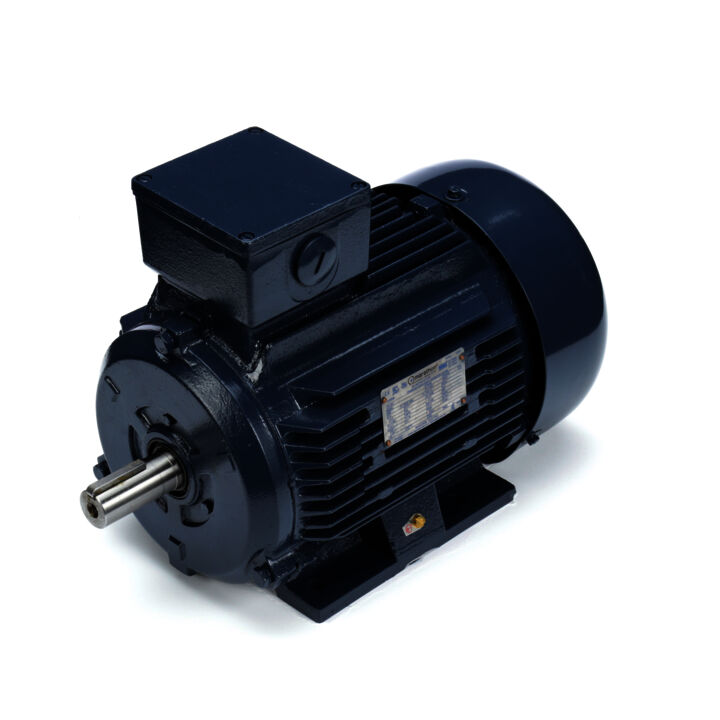

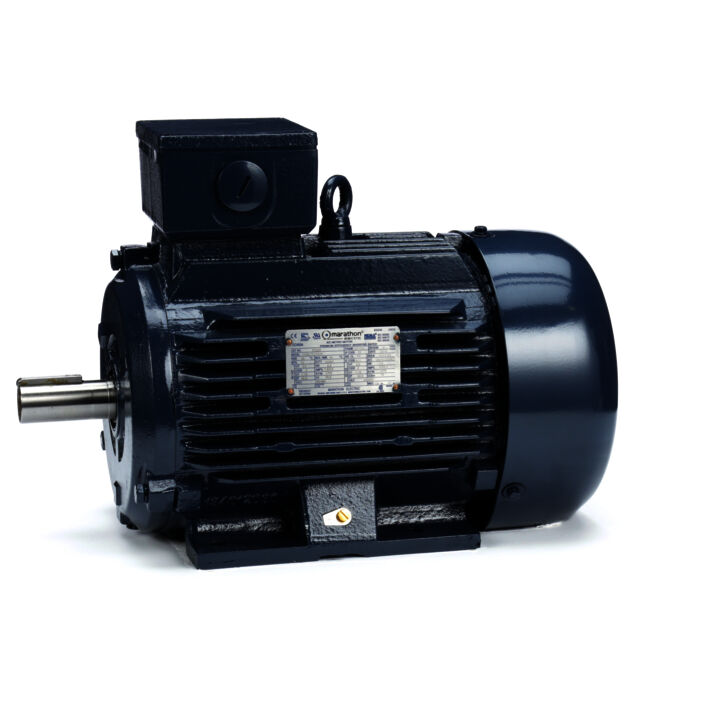

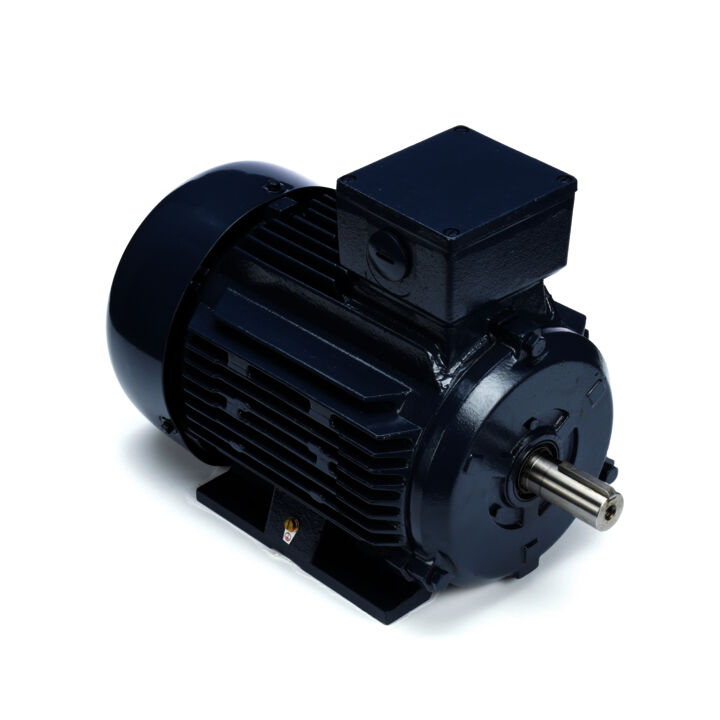

Cast Iron Motor, 3 & 2 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 1800 & 1500 RPM, 100L Frame, TEFC

Part#: 100LTFC6526

Catalog#: R322A

Model#: 100LTFC6526AA

Weight: 107 lb

 Sorry, this item is no longer available find_replace View Replacement

Key Features

  • Meets IE3 European and NEMA Premium® efficiencies
  • MAX GUARD® Class F Insulation, Class B rise @ rated KW
  • Wye Start-Delta Run on 160 Frame and larger
  • 10:1 Variable Torque, Constant Torque speed range as noted
  • Top Mounted/Oversized gasketed terminal box

Specifications

Phase Phase: 3 Output HP Output HP: 3 & 2 Hp
Output KW Output KW: 2.2 & 1.5 kW Voltage Voltage: 230/460 & 200/400 V
Speed Speed: 1770 & 1475 rpm Service Factor Service Factor: 1.15 & 1.0
Frame Frame: 100L Thermal Protection Thermal Protection: No Protection
Efficiency Efficiency: 90.2 & 89.5 % Ambient Temperature Ambient Temperature: 40 °C
Frequency Frequency: 60 & 50 Hz Current Current: 8/4 & 6.6/3.3 A
Power Factor Power Factor: 79.2 Duty Duty: Continuous
Insulation Class Insulation Class: F Design Code Design Code: B
KVA Code KVA Code: J Drive End Bearing Size Drive End Bearing Size: 6206
Opp Drive End Bearing Size Opp Drive End Bearing Size: 6205 Enclosure Enclosure: Totally Enclosed Fan Cooled
UL UL: No CSA CSA: Y
CE CE: Y IP Code IP Code: 55
Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: Squirrel Cage Inverter Rated Starting Method Starting Method: Line Or Inverter
Poles Poles: 4 Rotation Rotation: Reversible
Mounting Mounting: Rigid Base Motor Orientation Motor Orientation: Horizontal
Drive End Bearing Drive End Bearing: Ball Opp Drive End Bearing Opp Drive End Bearing: Ball
Frame Material Frame Material: Cast Iron Shaft Type Shaft Type: IEC
Overall Length Overall Length: 16.33 in Shaft Diameter Shaft Diameter: 1.111 in
Shaft Extension Shaft Extension: 2.36 in Assembly/Box Mounting Assembly/Box Mounting: F3
Inverter Load Inverter Load: CONSTANT 20:1
Output HP Output HP: 3 Hp Output KW Output KW: 2.2 kW
Frame Size Frame Size: 100 Frame Suffix Frame Suffix: L
Synchronous RPM Synchronous RPM: 1800 & 1500 rpm Frequency Frequency: 60 Hz
Voltage Voltage: 230/460 V Current Current: 8.0/4.0 A
Efficiency Efficiency: 90.2 % Service Factor Service Factor: 1.15
Speed Speed: 1770 rpm Connection Drawing Connection Drawing: 005010.01
Outline Drawing Outline Drawing: B-SS622236-DF100L1-4R Packaged Length Packaged Length: 22.50 IN
Weight Weight: 107.00 LB UPC UPC: 722856026514
Packaged Width Packaged Width: 16.81 IN HTC HTC: 8501.52.4000
Country of Origin Country of Origin: China Packaged Height Packaged Height: 14.00 IN
