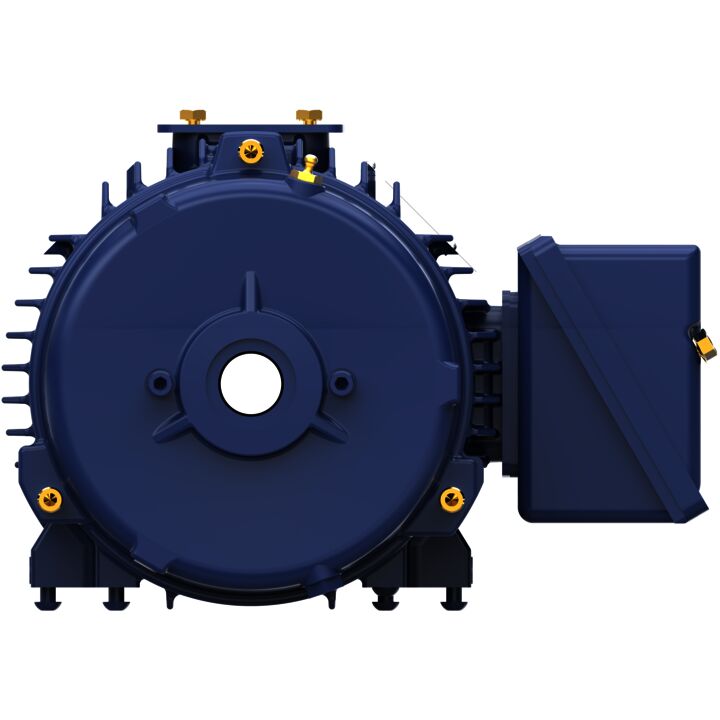

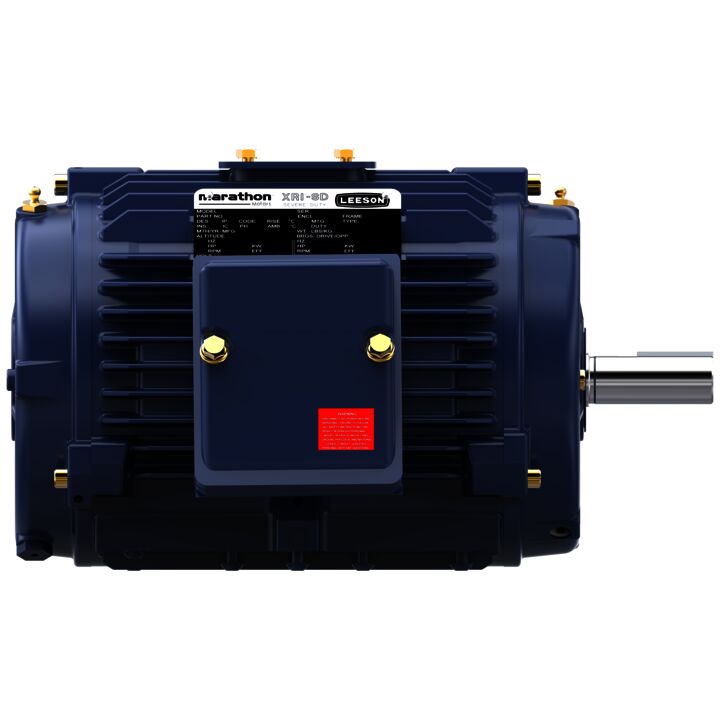

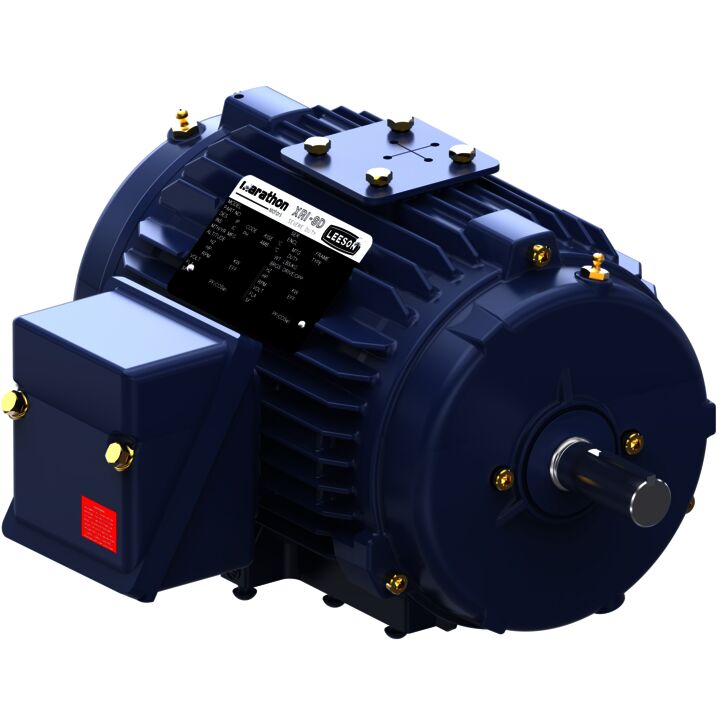

TENV Motors, TENV, 2 HP, 3Ph, 60Hz, 460V, 1800 RPM, 145T Frame
Resource Center

TENV Motors, TENV, 2 HP, 3Ph, 60Hz, 460V, 1800 RPM, 145T Frame

Part#: 145THTCD9070

Catalog#: W513B-P

Weight: 108 lb

location_on Where to Buy

Key Features

  • Meets IEEE-841 standard for severe duty motor applications; Bearing current protection (BCP); Meets General Motors® GM® 7E-TA automotive duty specification and Meets IEEE45 USCG marine duty, API RPI4F for offshore platforms
  • IP-56 cast iron, Meets or exceeds NEMA Premium® efficiencies, NEMA Premium models are in compliance with EISA2007; Actual test and vibration data supplied with each motor
  • MAX GUARD® Class F Insulation System, Inverter duty 10:1 variable torque and 10:1 constant torque & 1.15 service factor on Sine Wave Power 1.0 SF on Inverter Power
  • F1/F2 capable, Precision balanced to .08”/sec, Steel conduit box
  • Inpro/Seal® VBX® bearing isolators on drive end shaft extension TENV and on both ends of TEFC
  • Modifications and Kits are available
  • 40°C Ambient 1.15SF Sine Wave Power and 1.0SF inverter power; NOTE: BCP (-P) models are not Hazardous Duty® motors certified for Division 2 locations
  • Provisions to add stub shaft for an encoder (182-449T, TEFC only, Modifications and Kits are available
  • UL® Recognized & CSA certified and CE® Mark

Specifications

Connection Drawing Connection Drawing: EE7300 Outline Drawing Outline Drawing: SS621242
Packaged Length Packaged Length: 17.00 IN Weight Weight: 108.00 LB
UPC UPC: 722856190819 Packaged Width Packaged Width: 13.00 IN
Country of Origin Country of Origin: Mexico Packaged Height Packaged Height: 10.00 IN

Efficiency

Information not available at the moment. Please check back later!
