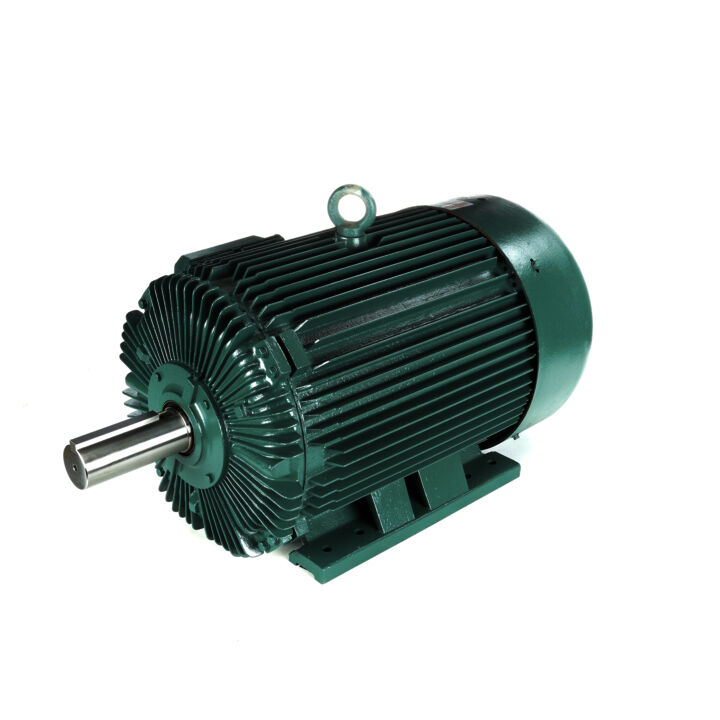

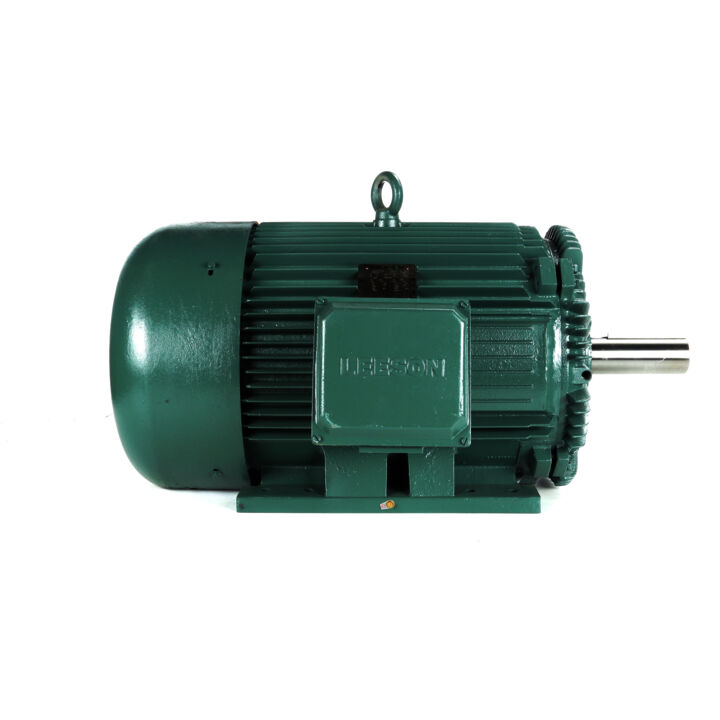

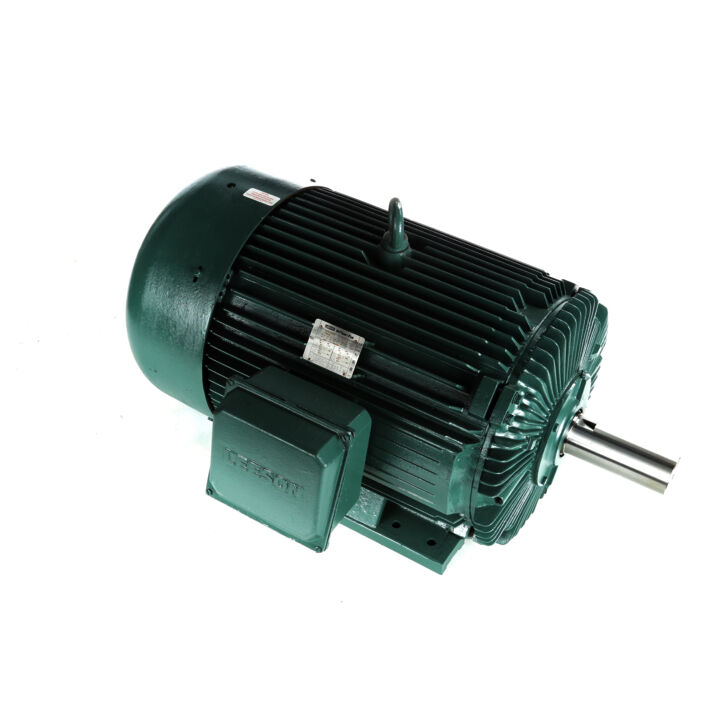

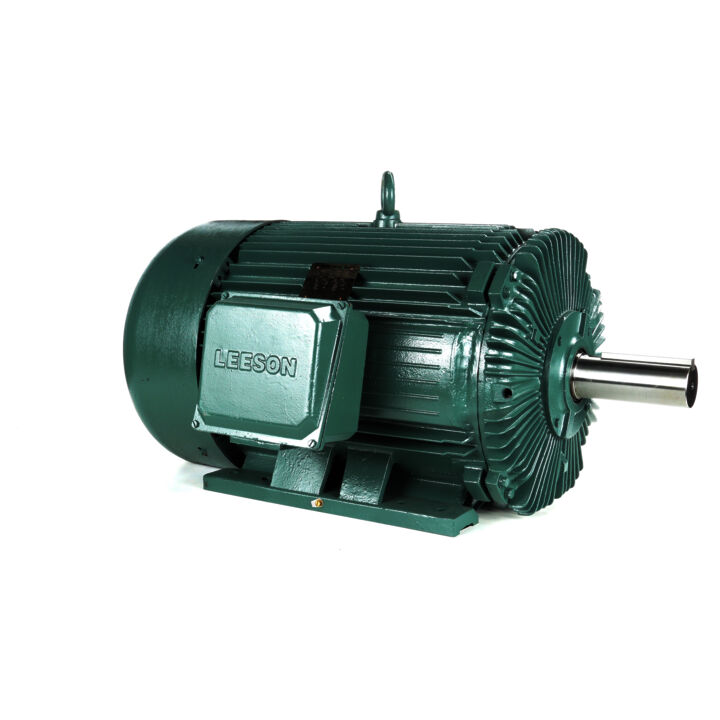

Severe Duty Motor, 150 & 125 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 1200 & 1000 RPM, 447T Frame, TEFC
Resource Center

Severe Duty Motor, 150 & 125 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 1200 & 1000 RPM, 447T Frame, TEFC

Part#: 171804.60

Catalog#: 171804.60

Model#: C447T11FWIA

Weight: 2118 lb

location_on Where to Buy

Key Features

  • Full cast iron construction
  • Inverter rated insulation system
  • Epoxy painted
  • Shaft seals both ends
  • Internal corrosion protection
  • IP 55 enclosure protection
  • Division 2 CSA certification for hazardous locations, Class 1 Groups A, B, C, D, temperature Code T2B
  • Provisions for Shaft Grounding Rings - Removes Div II when installed

Specifications

Phase Phase: 3 Output HP Output HP: 150 & 125 Hp
Output KW Output KW: 112.0 & 93.0 kW Voltage Voltage: 460 & 380 V
Speed Speed: 1195 & 995 rpm Service Factor Service Factor: 1.15 & 1.15
Frame Frame: 447T Enclosure Enclosure: Totally Enclosed Fan Cooled
Thermal Protection Thermal Protection: No Protection Efficiency Efficiency: 96.2 & 95.8 %
Ambient Temperature Ambient Temperature: 40 °C Frequency Frequency: 60 & 50 Hz
Current Current: 186 & 187 A Power Factor Power Factor: 78.5
Duty Duty: Continuous Insulation Class Insulation Class: F
Design Code Design Code: B KVA Code KVA Code: G
Drive End Bearing Size Drive End Bearing Size: 6319 Opp Drive End Bearing Size Opp Drive End Bearing Size: 6317
UL UL: Recognized CSA CSA: Y
CE CE: Y IP Code IP Code: 55
Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: Squirrel Cage Inverter Rated Starting Method Starting Method: Wye Start Delta Run Or Inverter
Poles Poles: 6 Rotation Rotation: Reversible
Resistance Main Resistance Main: .0201 Ohms Mounting Mounting: Rigid Base
Motor Orientation Motor Orientation: Horizontal Drive End Bearing Drive End Bearing: Ball
Opp Drive End Bearing Opp Drive End Bearing: Ball Frame Material Frame Material: Cast Iron
Shaft Type Shaft Type: T Overall Length Overall Length: 48.05 in
Shaft Diameter Shaft Diameter: 3.375 in Shaft Extension Shaft Extension: 8.5 in
Assembly/Box Mounting Assembly/Box Mounting: F1/F2 CAPABLE
Service Factor Service Factor: 1.15 Frame Suffix Frame Suffix: T
Current Current: 186 A Synchronous RPM Synchronous RPM: 1200 & 1000 rpm
Frequency Frequency: 60 Hz Speed Speed: 1195 rpm
Connection Drawing Connection Drawing: 00519001 Outline Drawing Outline Drawing: 16983360
Voltage Voltage: 460 V Output KW Output KW: 112 kW
Output HP Output HP: 150 Hp Frame Size Frame Size: 447
Torque UOM Torque UOM: LB-FT Efficiency Efficiency: 96.2 %
Packaged Length Packaged Length: 51.00 IN Weight Weight: 2118.00 LB
UPC UPC: 691720045664 Packaged Width Packaged Width: 41.50 IN
Country of Origin Country of Origin: China Packaged Height Packaged Height: 30.00 IN
% of Rated Load0%25%50%75%100%115%125%
% of Rated Load: Current (Amps) 0%: 67.00 25%: 83.00 50%: 111.00 75%: 146.00 100%: 186.00 115%: 212.00 125%: 230.00
% of Rated Load: Rated Output (KW) 0%: 2.20 25%: 30.50 50%: 58.50 75%: 87.50 100%: 116.00 115%: 134.00 125%: 146.00
% of Rated Load: Efficiency (%) 0%: 0.0 25%: 91.7 50%: 95.4 75%: 95.8 100%: 96.2 115%: 95.8 125%: 95.8
% of Rated Load: Power Factor (%) 0%: 4.0 25%: 46.0 50%: 66.5 75%: 75.0 100%: 78.5 115%: 79.0 125%: 79.5
% of Rated Load: Speed (RPM) 0%: 1,200 25%: 1,199 50%: 1,198 75%: 1,196 100%: 1,195 115%: 1,192 125%: 1,190
% of Rated Load: Temp. Rise @ FL 0%: 0.0 25%: 0.0 50%: 0.0 75%: 0.0 100%: 55.0 115%: 75.0 125%: 90.0
% of Rated Load: Torque (ft-lbs) 0%: 0.00 25%: 164.00 50%: 329.00 75%: 494.00 100%: 660.00 115%: 759.00 125%: 827.00
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Curvepoint: Full Load Current (Amps): 186.00 Current (%): 100.0 Torque (ft-lbs): 662.00 Torque (%): 100.0 Speed (RPM): 1,190 Rated Output (KW): Power Factor (%): Rated Output (Hp): 150.00
Curvepoint: No Load Current (Amps): 67.00 Current (%): 36.0 Torque (ft-lbs): 0.00 Torque (%): 0.0 Speed (RPM): 1,200 Rated Output (KW): Power Factor (%): Rated Output (Hp): 150.00
Curvepoint: 1/3 Current (Amps): 1,050.00 Current (%): 565.0 Torque (ft-lbs): 800.00 Torque (%): 121.0 Speed (RPM): 400 Rated Output (KW): Power Factor (%): Rated Output (Hp): 150.00
Curvepoint: 2/3 Current (Amps): 950.00 Current (%): 511.0 Torque (ft-lbs): 1,000.00 Torque (%): 152.0 Speed (RPM): 900 Rated Output (KW): Power Factor (%): Rated Output (Hp): 150.00
Curvepoint: Locked-Rotor Current (Amps): 1,085.00 Current (%): 591.0 Torque (ft-lbs): 950.00 Torque (%): 144.0 Speed (RPM): 0 Rated Output (KW): Power Factor (%): 23.5 Rated Output (Hp): 150.00
Curvepoint: Break-Down Current (Amps): 625.00 Current (%): 336.0 Torque (ft-lbs): 1,450.00 Torque (%): 220.0 Speed (RPM): 1,150 Rated Output (KW): Power Factor (%): 58.0 Rated Output (Hp): 150.00
Curvepoint: Pull-Up Current (Amps): 1,000.00 Current (%): 538.0 Torque (ft-lbs): 850.00 Torque (%): 129.0 Speed (RPM): 600 Rated Output (KW): Power Factor (%): Rated Output (Hp): 150.00
