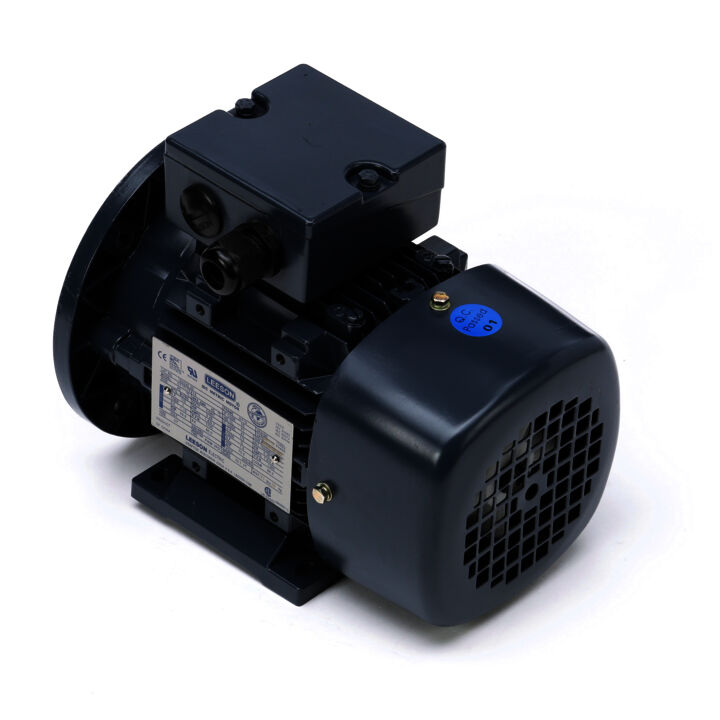

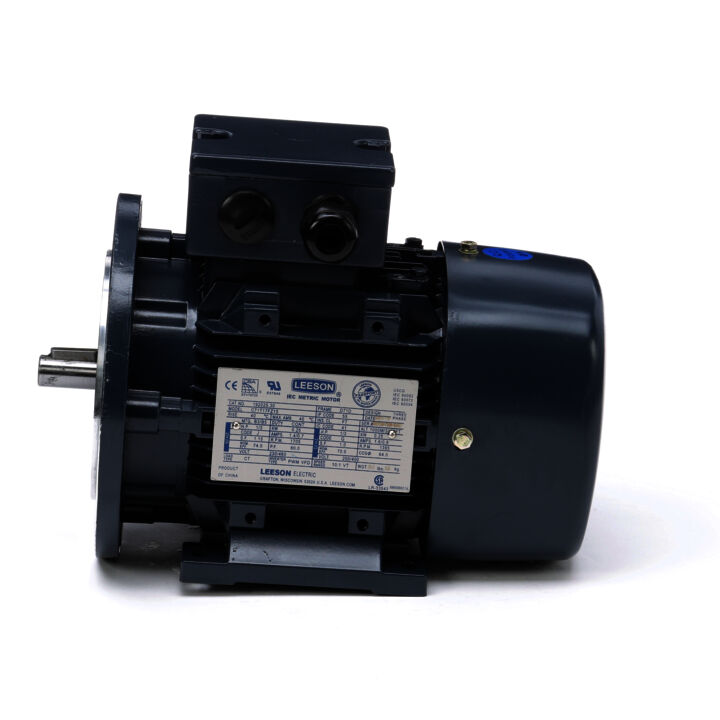

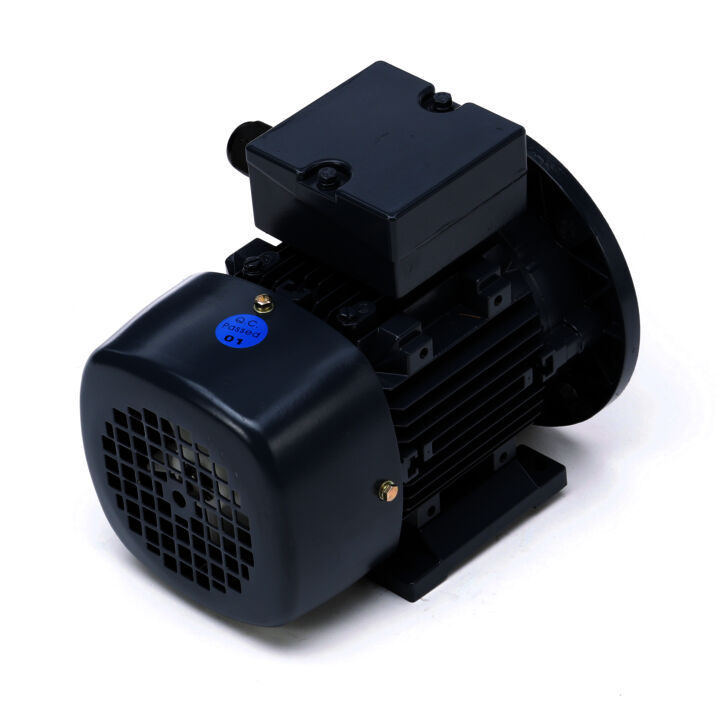

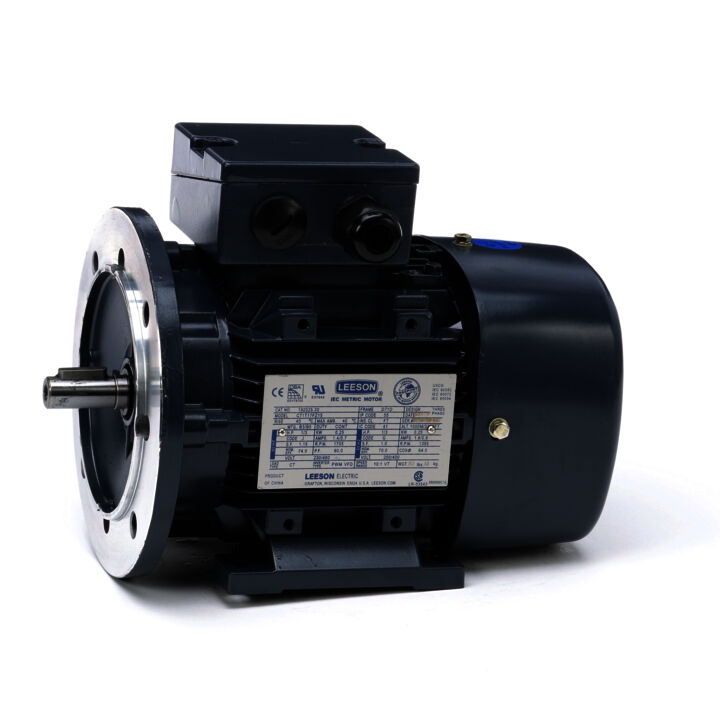

Obsolete, replaced by 192025.00 -..1/3HP-0.25kW..1800RPM.D71D.TEFC.230/460V.3PH.60HZ.CONT.40C..B3 / B5..............

Part#: 192025.30

Catalog#: 192025.30

Weight: 13.8 lb

location_on Where to Buy

Compare Product

Specifications

Phase	Phase: 3	Output HP	Output HP: 0.33 & 0.33 Hp
Output KW	Output KW: 0.25 & 0.25 kW	Voltage	Voltage: 230/460 & 200/400 V
Speed	Speed: 1705 & 1395 rpm	Service Factor	Service Factor: 1.15 & 1.0
Frame	Frame: D71D	Enclosure	Enclosure: Totally Enclosed Fan Cooled
Thermal Protection	Thermal Protection: No Protection	Efficiency	Efficiency: 72 & 70 %
Ambient Temperature	Ambient Temperature: 40 °C	Frequency	Frequency: 60 & 50 Hz
Current	Current: 1.4/0.7 & 1.6/0.8 A	Power Factor	Power Factor: 60
Duty	Duty: Continuous	Insulation Class	Insulation Class: F
Design Code	Design Code: NO DESIGN CODE	KVA Code	KVA Code: J
Drive End Bearing Size	Drive End Bearing Size: 6202	Opp Drive End Bearing Size	Opp Drive End Bearing Size: 6202
UL	UL: Recognized	CSA	CSA: Y
CE	CE: Y	IP Code	IP Code: 55
Number of Speeds	Number of Speeds: 1

Electrical Type	Electrical Type: Squirrel Cage Inverter Rated	Starting Method	Starting Method: Line Or Inverter
Poles	Poles: 4	Rotation	Rotation: Reversible
Resistance Main	Resistance Main: 0 Ohms	Mounting	Mounting: B3
Motor Orientation	Motor Orientation: Horizontal Or Up Or Down	Drive End Bearing	Drive End Bearing: Ball
Opp Drive End Bearing	Opp Drive End Bearing: Ball	Frame Material	Frame Material: Aluminum
Shaft Type	Shaft Type: IEC	Assembly/Box Mounting	Assembly/Box Mounting: F3
Inverter Load	Inverter Load: CONSTANT 20:1

Service Factor	Service Factor: 1.15	Frame Suffix	Frame Suffix: D
Current	Current: 1.4/0.70 A	Synchronous RPM	Synchronous RPM: 1800 & 1500 rpm
Frequency	Frequency: 60 Hz	Speed	Speed: 1705 rpm
Connection Drawing	Connection Drawing: 00546505	Outline Drawing	Outline Drawing: OL19202530
Voltage	Voltage: 230/460 V	Output KW	Output KW: 0.25 kW
Output HP	Output HP: 0.33 Hp	Frame Size	Frame Size: 71
Efficiency	Efficiency: 72 %	Frame Prefix	Frame Prefix: D
Weight	Weight: 13.80 LB	UPC	UPC: 691720099360
Country of Origin	Country of Origin: China

% of Rated Load	0%	25%	50%	75%	100%	125%	150%
% of Rated Load: Current (Amps)	0%: 0.53	25%: 0.55	50%: 0.58	75%: 0.63	100%: 0.69	125%: 0.78	150%: 0.90
% of Rated Load: Rated Output (KW)	0%: 0.05	25%: 0.11	50%: 0.18	75%: 0.26	100%: 0.34	125%: 0.43	150%: 0.54
% of Rated Load: Efficiency (%)	0%: 0.0	25%: 55.5	50%: 66.9	75%: 71.9	100%: 72.6	125%: 69.2	150%: 68.9
% of Rated Load: Power Factor (%)	0%: 12.1	25%: 24.9	50%: 39.6	75%: 51.4	100%: 61.7	125%: 69.4	150%: 75.0
% of Rated Load: Speed (RPM)	0%: 1,795	25%: 1,793	50%: 1,767	75%: 1,741	100%: 1,712	125%: 1,679	150%: 1,638
% of Rated Load: Temp. Rise @ FL	0%: 0.0	25%: 0.0	50%: 0.0	75%: 0.0	100%: 35.0	125%: 0.0	150%: 0.0
% of Rated Load: Torque (ft-lbs)	0%: 0.00	25%: 3.80	50%: 7.80	75%: 12.00	100%: 16.20	125%: 20.00	150%: 25.50

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Curvepoint: Pull-Up	Current (Amps): 0.00	Current (%): 0.0	Torque (ft-lbs): 32.50	Torque (%): 201.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 0.33
Curvepoint: Break-Down	Current (Amps): 0.00	Current (%): 0.0	Torque (ft-lbs): 56.00	Torque (%): 346.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 0.33
Curvepoint: Full Load	Current (Amps): 0.69	Current (%): 100.0	Torque (ft-lbs): 16.20	Torque (%): 100.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 0.33
Curvepoint: Locked-Rotor	Current (Amps): 3.10	Current (%): 449.0	Torque (ft-lbs): 47.00	Torque (%): 290.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 0.33

Efficiency

Information not available at the moment. Please check back later!
