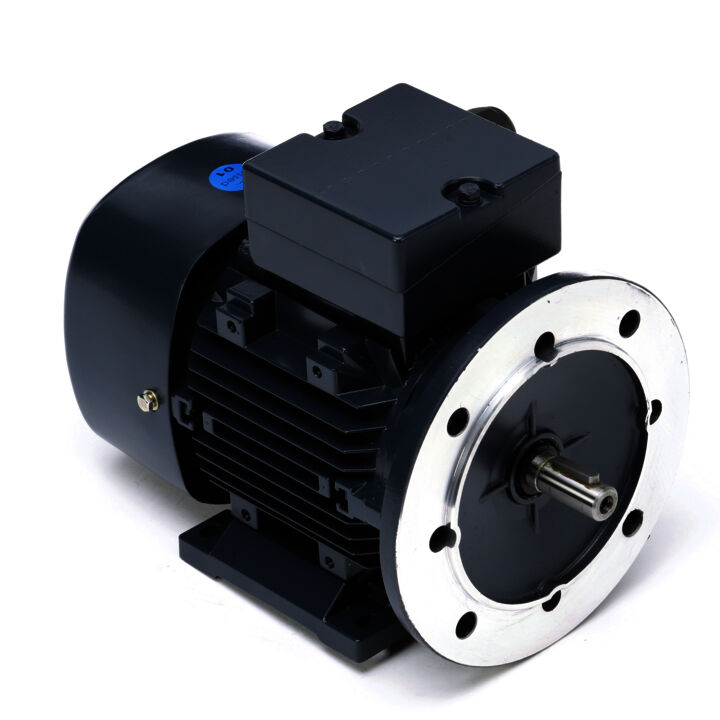

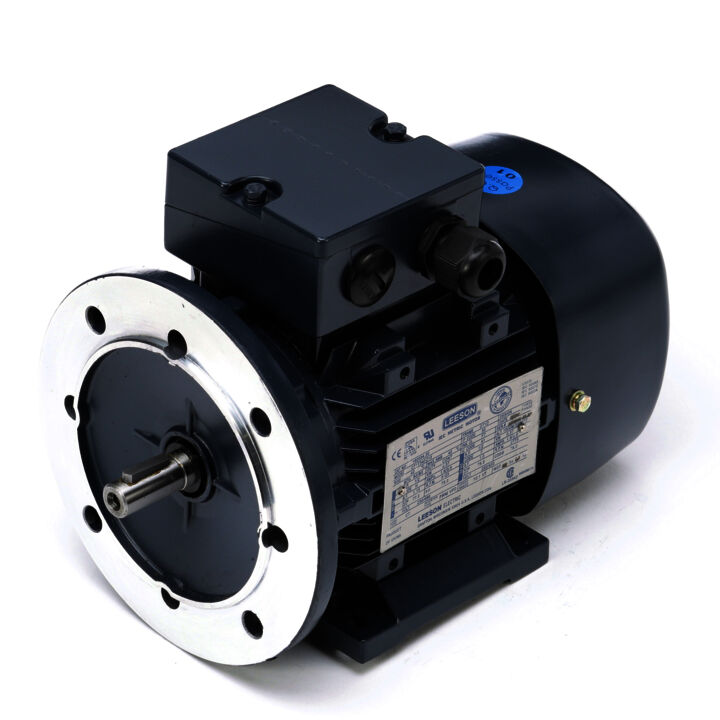

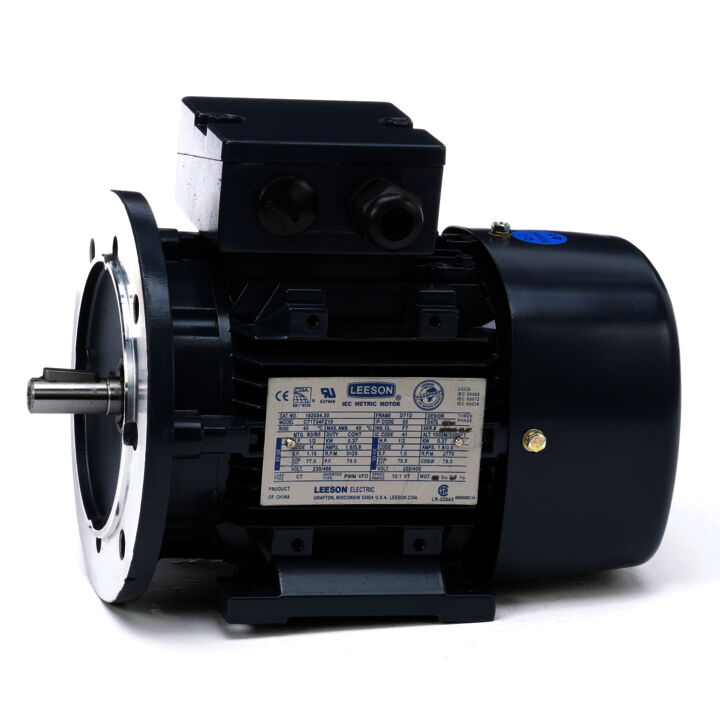

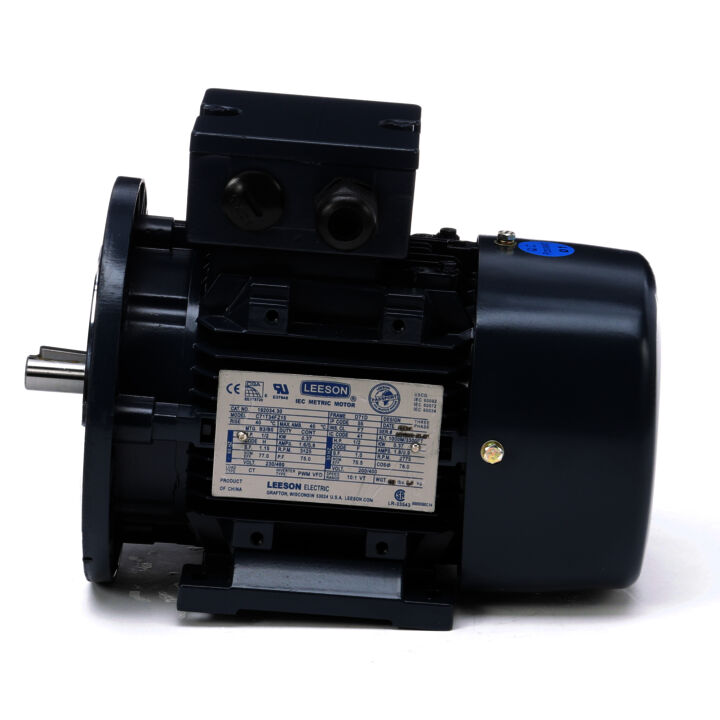

Obsolete Replaced by 192034.00..1/2HP-0.37kW..3600RPM.D71D.TEFC.230/460V.3PH.60HZ.CONT.40C..B3 / B5..............

Part#: 192034.30

Catalog#: 192034.30

Model#: C71T34FZ15A

Weight: 13 lb

location_on Where to Buy

Compare Product

Specifications

Phase	Phase: 3	Output HP	Output HP: 0.50 & 0.50 Hp
Output KW	Output KW: 0.37 & 0.37 kW	Voltage	Voltage: 230/460 & 200/400 V
Speed	Speed: 3435 & 2775 rpm	Service Factor	Service Factor: 1.15 & 1.0
Frame	Frame: D71D	Enclosure	Enclosure: Totally Enclosed Fan Cooled
Thermal Protection	Thermal Protection: No Protection	Efficiency	Efficiency: 77 & 75 %
Ambient Temperature	Ambient Temperature: 40 °C	Frequency	Frequency: 60 & 50 Hz
Current	Current: 1.6/0.8 & 1.8/0.9 A	Power Factor	Power Factor: 75
Duty	Duty: Continuous	Insulation Class	Insulation Class: F
Design Code	Design Code: NO DESIGN CODE	KVA Code	KVA Code: H
Drive End Bearing Size	Drive End Bearing Size: 6202	Opp Drive End Bearing Size	Opp Drive End Bearing Size: 6202
UL	UL: Recognized	CSA	CSA: Y
CE	CE: Y	IP Code	IP Code: 55
Number of Speeds	Number of Speeds: 1

Electrical Type	Electrical Type: Squirrel Cage Inverter Rated	Starting Method	Starting Method: Line Or Inverter
Poles	Poles: 4	Rotation	Rotation: Reversible
Resistance Main	Resistance Main: 12.5 Ohms	Mounting	Mounting: B3
Motor Orientation	Motor Orientation: Horizontal Or Up Or Down	Drive End Bearing	Drive End Bearing: Ball
Opp Drive End Bearing	Opp Drive End Bearing: Ball	Frame Material	Frame Material: Aluminum
Shaft Type	Shaft Type: IEC	Assembly/Box Mounting	Assembly/Box Mounting: F3
Inverter Load	Inverter Load: CONSTANT 10:1

Service Factor	Service Factor: 1.15	Frame Suffix	Frame Suffix: D
Current	Current: 1.6/0.80 A	Synchronous RPM	Synchronous RPM: 1800 & 1500 rpm
Frequency	Frequency: 60 Hz	Speed	Speed: 3435 rpm
Connection Drawing	Connection Drawing: 00546505	Outline Drawing	Outline Drawing: OL19203430
Voltage	Voltage: 230/460 V	Output KW	Output KW: 0.37 kW
Output HP	Output HP: 0.50 Hp	Frame Size	Frame Size: 71
Efficiency	Efficiency: 77 %	Frame Prefix	Frame Prefix: D
Weight	Weight: 13.00 LB	UPC	UPC: 691720099384
Country of Origin	Country of Origin: China

% of Rated Load	0%	25%	50%	75%	100%	125%	150%
% of Rated Load: Current (Amps)	0%: 0.57	25%: 0.57	50%: 0.65	75%: 0.70	100%: 0.80	125%: 0.94	150%: 1.13
% of Rated Load: Rated Output (KW)	0%: 0.06	25%: 0.15	50%: 0.26	75%: 0.37	100%: 0.49	125%: 0.62	150%: 0.78
% of Rated Load: Efficiency (%)	0%: 0.0	25%: 59.6	50%: 71.1	75%: 76.6	100%: 76.7	125%: 75.1	150%: 72.6
% of Rated Load: Power Factor (%)	0%: 13.0	25%: 33.9	50%: 50.0	75%: 65.8	100%: 76.1	125%: 82.8	150%: 86.3
% of Rated Load: Speed (RPM)	0%: 3,595	25%: 3,565	50%: 3,518	75%: 3,478	100%: 3,436	125%: 3,382	150%: 3,309
% of Rated Load: Temp. Rise @ FL	0%: 0.0	25%: 0.0	50%: 0.0	75%: 0.0	100%: 40.0	125%: 0.0	150%: 0.0
% of Rated Load: Torque (ft-lbs)	0%: 0.00	25%: 2.90	50%: 5.90	75%: 9.10	100%: 12.20	125%: 15.50	150%: 19.20

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Curvepoint: Locked-Rotor	Current (Amps): 4.94	Current (%): 618.0	Torque (ft-lbs): 35.90	Torque (%): 294.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 0.50
Curvepoint: Full Load	Current (Amps): 0.80	Current (%): 100.0	Torque (ft-lbs): 12.20	Torque (%): 100.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 0.50
Curvepoint: Break-Down	Current (Amps): 0.00	Current (%): 0.0	Torque (ft-lbs): 41.70	Torque (%): 342.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 0.50
Curvepoint: Pull-Up	Current (Amps): 0.00	Current (%): 0.0	Torque (ft-lbs): 24.50	Torque (%): 201.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 0.50
