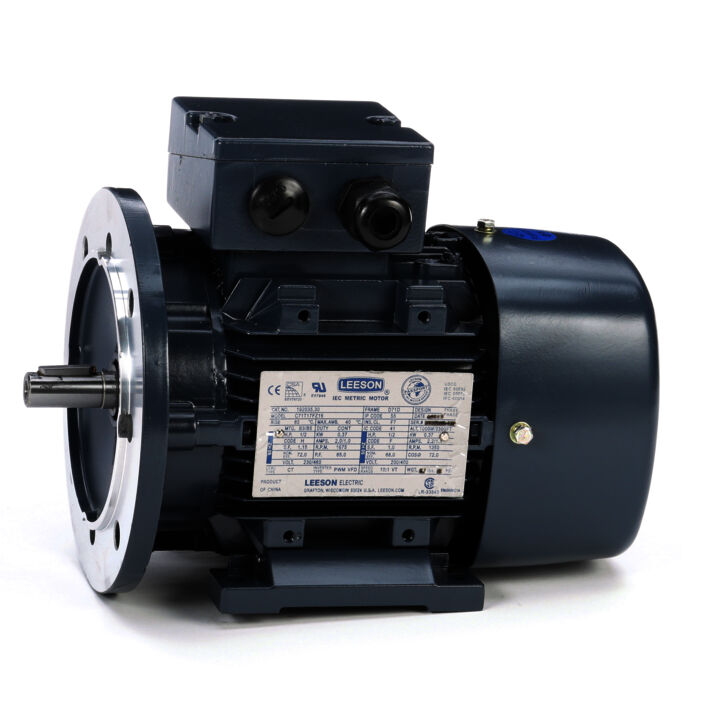

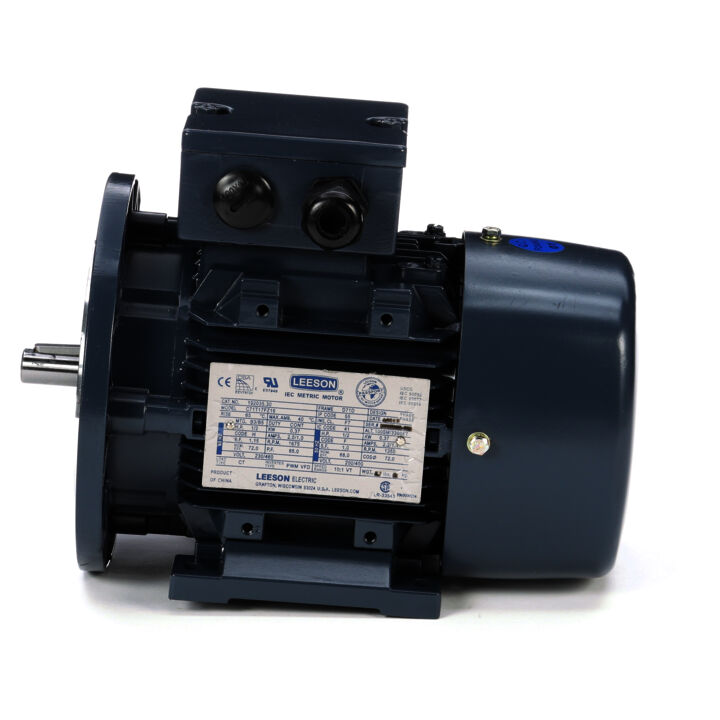

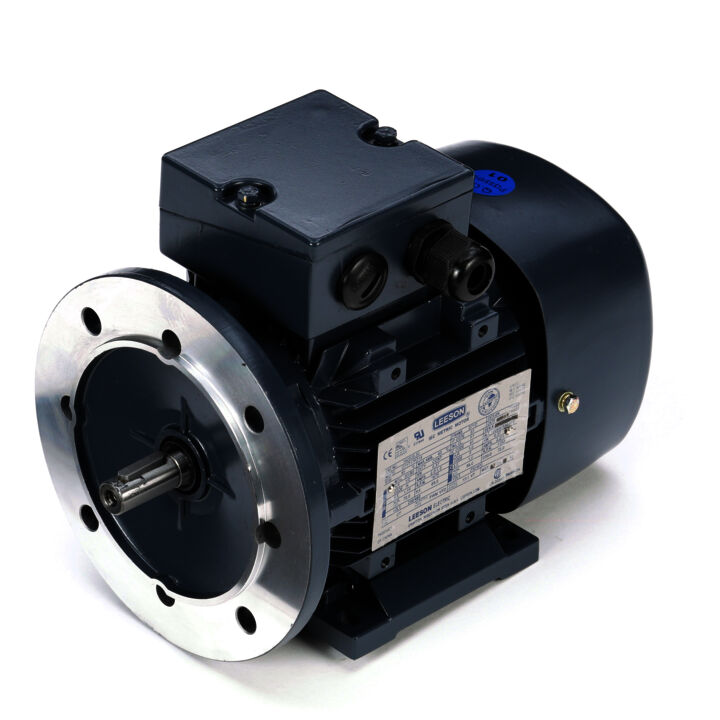

Obsolete Replaced by 192035.00..1/2HP-0.37kW..1800RPM.D71D.TEFC.230/460V.3PH.60HZ.CONT.40C..B3 / B5..............

Part#: 192035.30

Catalog#: 192035.30

Weight: 15 lb

location_on Where to Buy

Compare Product

Specifications

Phase	Phase: 3	Output HP	Output HP: 0.50 & 0.50 Hp
Output KW	Output KW: 0.37 & 0.37 kW	Voltage	Voltage: 230/460 & 200/400 V
Speed	Speed: 1675 & 1350 rpm	Service Factor	Service Factor: 1.15 & 1.0
Frame	Frame: D71D	Enclosure	Enclosure: Totally Enclosed Fan Cooled
Thermal Protection	Thermal Protection: No Protection	Efficiency	Efficiency: 72 & 68 %
Ambient Temperature	Ambient Temperature: 40 °C	Frequency	Frequency: 60 & 50 Hz
Current	Current: 2.0/1.0 & 2.2/1.1 A	Power Factor	Power Factor: 65
Duty	Duty: Continuous	Insulation Class	Insulation Class: F
Design Code	Design Code: NO DESIGN CODE	KVA Code	KVA Code: H
Drive End Bearing Size	Drive End Bearing Size: 6202	Opp Drive End Bearing Size	Opp Drive End Bearing Size: 6202
UL	UL: Recognized	CSA	CSA: Y
CE	CE: Y	IP Code	IP Code: 55
Number of Speeds	Number of Speeds: 1

Electrical Type	Electrical Type: Squirrel Cage Inverter Rated	Starting Method	Starting Method: Line Or Inverter
Poles	Poles: 4	Rotation	Rotation: Reversible
Resistance Main	Resistance Main: 11.5 Ohms	Mounting	Mounting: B3
Motor Orientation	Motor Orientation: Horizontal Or Up Or Down	Drive End Bearing	Drive End Bearing: Ball
Opp Drive End Bearing	Opp Drive End Bearing: Ball	Frame Material	Frame Material: Aluminum
Shaft Type	Shaft Type: IEC	Assembly/Box Mounting	Assembly/Box Mounting: F3
Inverter Load	Inverter Load: CONSTANT 20:1

Service Factor	Service Factor: 1.15	Frame Suffix	Frame Suffix: D
Current	Current: 2.0/1.0 A	Synchronous RPM	Synchronous RPM: 1800 & 1500 rpm
Frequency	Frequency: 60 Hz	Speed	Speed: 1675 rpm
Connection Drawing	Connection Drawing: 00546505	Outline Drawing	Outline Drawing: OL19203530
Voltage	Voltage: 230/460 V	Output KW	Output KW: 0.37 kW
Output HP	Output HP: 0.50 Hp	Frame Size	Frame Size: 71
Efficiency	Efficiency: 72 %	Frame Prefix	Frame Prefix: D
Weight	Weight: 15.00 LB	UPC	UPC: 691720099391
Country of Origin	Country of Origin: China

% of Rated Load	0%	25%	50%	75%	100%	125%	150%
% of Rated Load: Current (Amps)	0%: 0.79	25%: 0.79	50%: 0.81	75%: 0.86	100%: 0.96	125%: 1.10	150%: 1.40
% of Rated Load: Rated Output (KW)	0%: 0.17	25%: 0.16	50%: 0.27	75%: 0.38	100%: 0.51	125%: 0.67	150%: 0.90
% of Rated Load: Efficiency (%)	0%: 0.0	25%: 57.7	50%: 69.3	75%: 72.8	100%: 73.7	125%: 68.7	150%: 63.2
% of Rated Load: Power Factor (%)	0%: 27.3	25%: 26.1	50%: 41.7	75%: 55.2	100%: 66.3	125%: 76.9	150%: 80.2
% of Rated Load: Speed (RPM)	0%: 1,795	25%: 1,775	50%: 1,749	75%: 1,721	100%: 1,683	125%: 1,629	150%: 1,553
% of Rated Load: Temp. Rise @ FL	0%: 0.0	25%: 0.0	50%: 0.0	75%: 0.0	100%: 55.0	125%: 0.0	150%: 0.0
% of Rated Load: Torque (ft-lbs)	0%: 0.00	25%: 6.00	50%: 12.00	75%: 18.00	100%: 25.00	125%: 32.00	150%: 41.00

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Curvepoint: Locked-Rotor	Current (Amps): 4.00	Current (%): 417.0	Torque (ft-lbs): 74.00	Torque (%): 296.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 0.50
Curvepoint: Pull-Up	Current (Amps): 0.00	Current (%): 0.0	Torque (ft-lbs): 49.00	Torque (%): 196.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 0.50
Curvepoint: Full Load	Current (Amps): 0.96	Current (%): 100.0	Torque (ft-lbs): 25.00	Torque (%): 100.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 0.50
Curvepoint: Break-Down	Current (Amps): 0.00	Current (%): 0.0	Torque (ft-lbs): 79.00	Torque (%): 316.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 0.50
