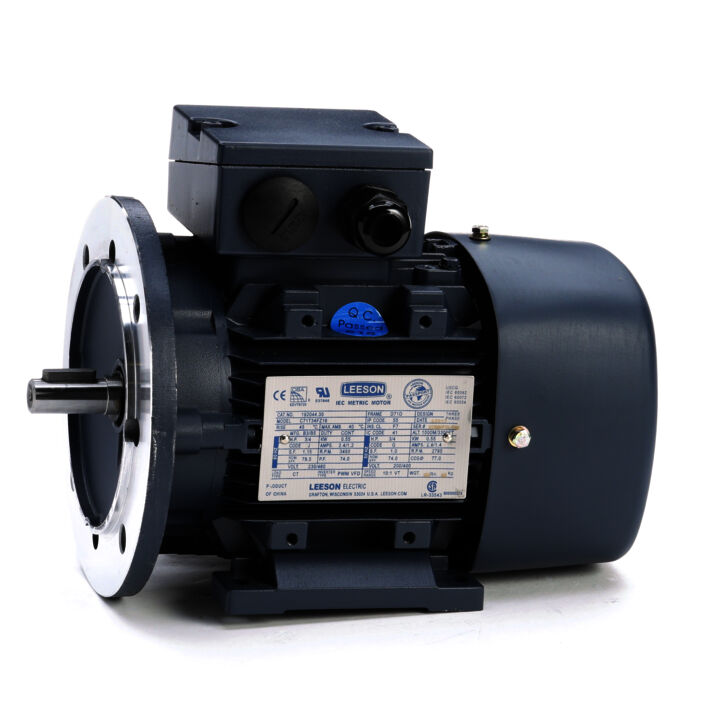

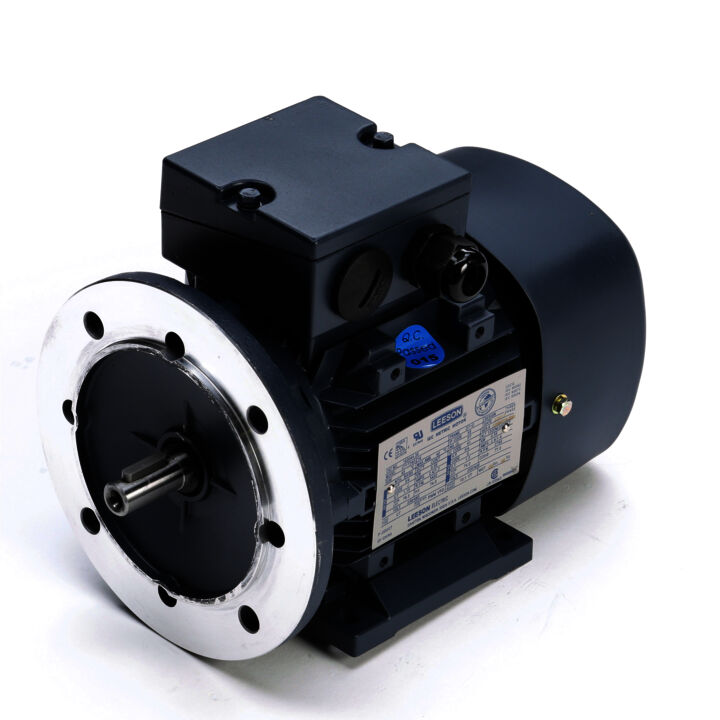

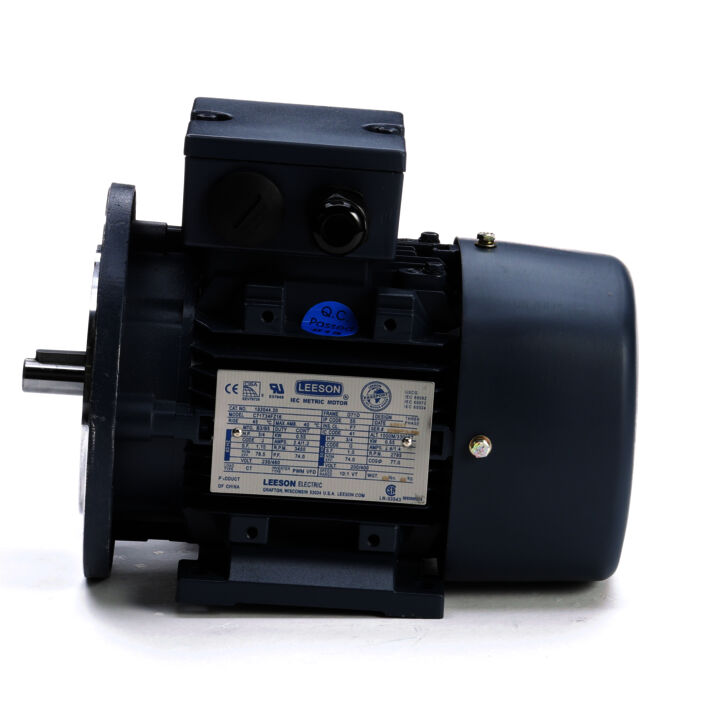

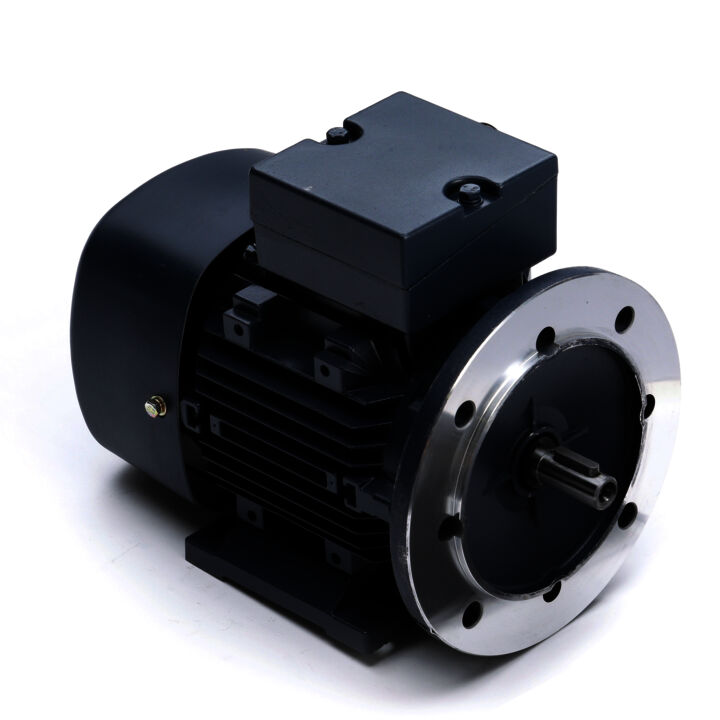

Obsolete Replaced by 192044.00..3/4HP-0.55kW..3600RPM.D71D.TEFC.230/460V.3PH.60HZ.CONT.40C..B3 / B5..............

Part#: 192044.30

Catalog#: 192044.30

Weight: 15.8 lb

location_on Where to Buy

Compare Product

Specifications

Phase	Phase: 3	Output HP	Output HP: 0.75 & 0.75 Hp
Output KW	Output KW: 0.56 & 0.56 kW	Voltage	Voltage: 230/460 & 200/400 V
Speed	Speed: 3455 & 2795 rpm	Service Factor	Service Factor: 1.15 & 1.0
Frame	Frame: D71D	Enclosure	Enclosure: Totally Enclosed Fan Cooled
Thermal Protection	Thermal Protection: No Protection	Efficiency	Efficiency: 78 & 74 %
Ambient Temperature	Ambient Temperature: 40 °C	Frequency	Frequency: 60 & 50 Hz
Current	Current: 2.4/1.2 & 2.8/1.4 A	Power Factor	Power Factor: 74
Duty	Duty: Continuous	Insulation Class	Insulation Class: F
Design Code	Design Code: NO DESIGN CODE	KVA Code	KVA Code: J
Drive End Bearing Size	Drive End Bearing Size: 6202	Opp Drive End Bearing Size	Opp Drive End Bearing Size: 6202
UL	UL: Recognized	CSA	CSA: Y
CE	CE: Y	IP Code	IP Code: 55
Number of Speeds	Number of Speeds: 1

Electrical Type	Electrical Type: Squirrel Cage Inverter Rated	Starting Method	Starting Method: Line Or Inverter
Poles	Poles: 2	Rotation	Rotation: Reversible
Resistance Main	Resistance Main: 7.7 Ohms	Mounting	Mounting: B3
Motor Orientation	Motor Orientation: Horizontal Or Up Or Down	Drive End Bearing	Drive End Bearing: Ball
Opp Drive End Bearing	Opp Drive End Bearing: Ball	Frame Material	Frame Material: Aluminum
Shaft Type	Shaft Type: IEC	Assembly/Box Mounting	Assembly/Box Mounting: F3
Inverter Load	Inverter Load: CONSTANT 20:1

Service Factor	Service Factor: 1.15	Frame Suffix	Frame Suffix: D
Current	Current: 2.4/1.2 A	Synchronous RPM	Synchronous RPM: 3600 & 3000 rpm
Frequency	Frequency: 60 Hz	Speed	Speed: 3455 rpm
Connection Drawing	Connection Drawing: 00546505	Outline Drawing	Outline Drawing: OL19204430
Voltage	Voltage: 230/460 V	Output KW	Output KW: 0.56 kW
Output HP	Output HP: 0.75 Hp	Frame Size	Frame Size: 71
Efficiency	Efficiency: 78 %	Frame Prefix	Frame Prefix: D
Weight	Weight: 15.80 LB	UPC	UPC: 691720099414
Country of Origin	Country of Origin: China

% of Rated Load	0%	25%	50%	75%	100%	125%	150%
% of Rated Load: Current (Amps)	0%: 0.90	25%: 0.85	50%: 0.90	75%: 1.00	100%: 1.15	125%: 1.35	150%: 1.65
% of Rated Load: Rated Output (KW)	0%: 0.08	25%: 0.23	50%: 0.37	75%: 0.53	100%: 0.75	125%: 0.89	150%: 1.10
% of Rated Load: Efficiency (%)	0%: 0.0	25%: 66.1	50%: 69.8	75%: 76.0	100%: 77.6	125%: 76.7	150%: 75.9
% of Rated Load: Power Factor (%)	0%: 11.2	25%: 33.2	50%: 52.0	75%: 66.6	100%: 82.1	125%: 82.6	150%: 83.4
% of Rated Load: Speed (RPM)	0%: 3,595	25%: 3,565	50%: 3,534	75%: 3,499	100%: 3,458	125%: 3,409	150%: 3,348
% of Rated Load: Temp. Rise @ FL	0%: 0.0	25%: 0.0	50%: 0.0	75%: 0.0	100%: 40.0	125%: 0.0	150%: 0.0
% of Rated Load: Torque (ft-lbs)	0%: 0.00	25%: 4.70	50%: 8.30	75%: 13.00	100%: 19.00	125%: 22.50	150%: 28.00

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Curvepoint: Locked-Rotor	Current (Amps): 7.50	Current (%): 652.0	Torque (ft-lbs): 74.00	Torque (%): 389.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 0.75
Curvepoint: Pull-Up	Current (Amps): 0.00	Current (%): 0.0	Torque (ft-lbs): 53.00	Torque (%): 279.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 0.75
Curvepoint: Break-Down	Current (Amps): 0.00	Current (%): 0.0	Torque (ft-lbs): 139.00	Torque (%): 732.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 0.75
Curvepoint: Full Load	Current (Amps): 1.15	Current (%): 100.0	Torque (ft-lbs): 19.00	Torque (%): 100.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 0.75

Efficiency

Information not available at the moment. Please check back later!
