Obsolete Replaced by 192206.00..2HP-1.5kW..1800RPM.D90LD.TEFC.230/460V.3PH.60HZ.CONT...B3 / B5..............

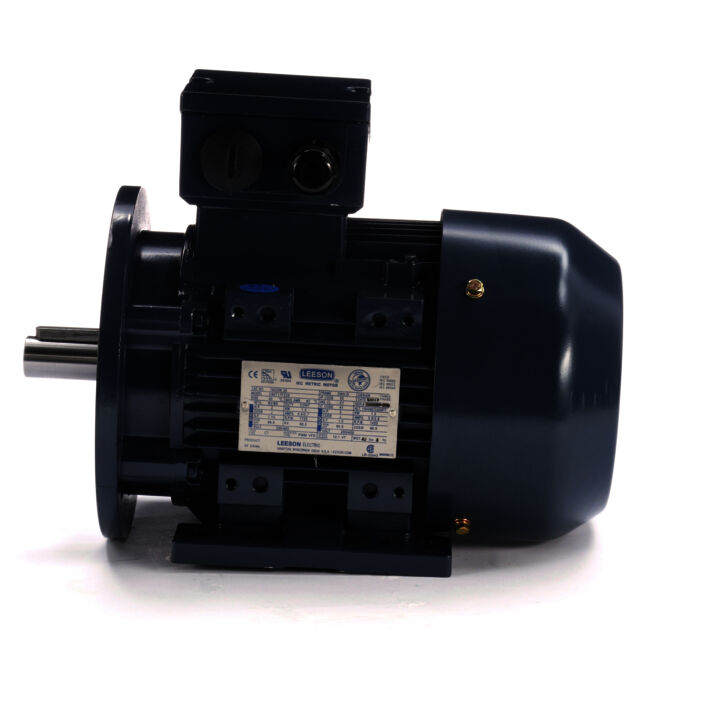

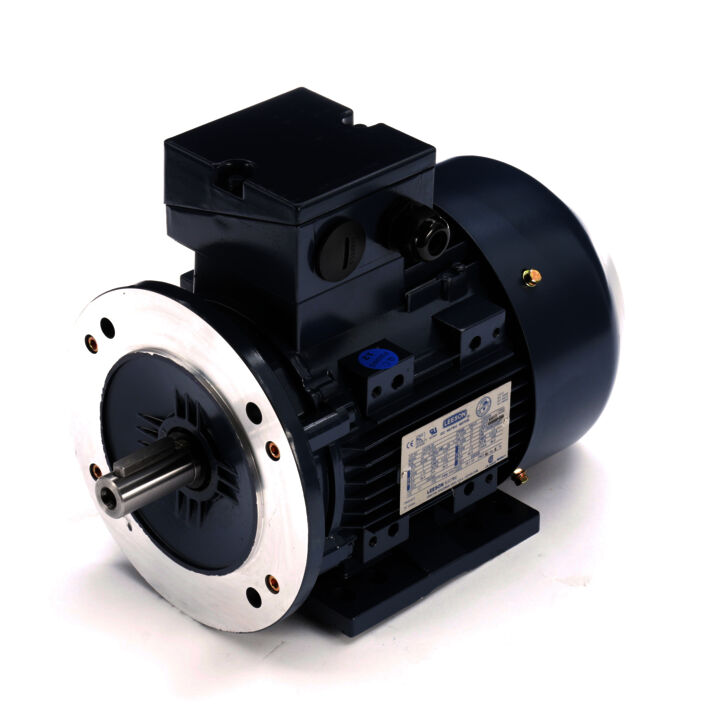

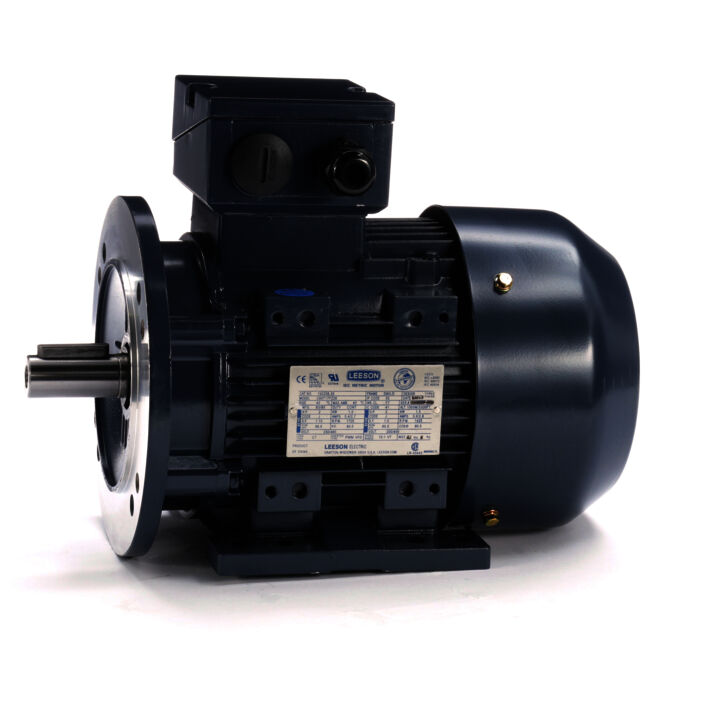

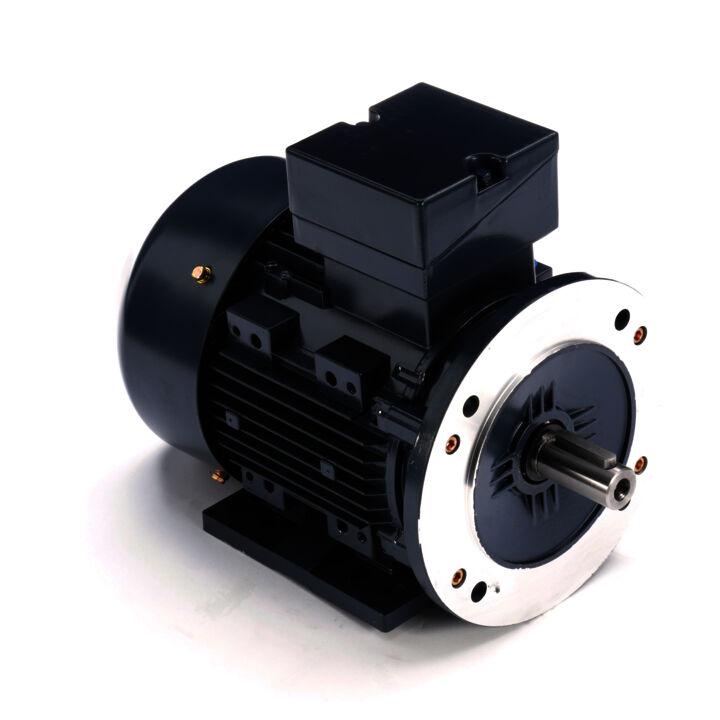

Part#: 192206.30

Catalog#: 192206.30

Model#: C90T17FZ26A

Weight: 48.4 lb

location_on Where to Buy

Compare Product

Specifications

Phase	Phase: 3	Output HP	Output HP: 2 & 2 Hp
Output KW	Output KW: 1.5 & 1.5 kW	Voltage	Voltage: 230/460 & 200/400 V
Speed	Speed: 1725 & 1425 rpm	Service Factor	Service Factor: 1.15 & 1.0
Frame	Frame: D90LD	Enclosure	Enclosure: Totally Enclosed Fan Cooled
Thermal Protection	Thermal Protection: No Protection	Efficiency	Efficiency: 86.5 & 85.5 %
Ambient Temperature	Ambient Temperature: 40 °C	Frequency	Frequency: 60 & 50 Hz
Current	Current: 5.4/2.7 & 5.6/2.8 A	Power Factor	Power Factor: 80.5
Duty	Duty: Continuous	Insulation Class	Insulation Class: F
Design Code	Design Code: NO DESIGN CODE	KVA Code	KVA Code: J
Drive End Bearing Size	Drive End Bearing Size: 6205	Opp Drive End Bearing Size	Opp Drive End Bearing Size: 6205
UL	UL: Recognized	CSA	CSA: Y
CE	CE: Y	IP Code	IP Code: 55
Number of Speeds	Number of Speeds: 1

Electrical Type	Electrical Type: Squirrel Cage Inverter Rated	Starting Method	Starting Method: Line Or Inverter
Poles	Poles: 4	Rotation	Rotation: Reversible
Resistance Main	Resistance Main: 0 Ohms	Mounting	Mounting: B3
Motor Orientation	Motor Orientation: Horizontal Or Up Or Down	Drive End Bearing	Drive End Bearing: Ball
Opp Drive End Bearing	Opp Drive End Bearing: Ball	Frame Material	Frame Material: Aluminum
Shaft Type	Shaft Type: IEC	Assembly/Box Mounting	Assembly/Box Mounting: F3
Inverter Load	Inverter Load: CONSTANT 20:1

Service Factor	Service Factor: 1.15	Frame Suffix	Frame Suffix: LD
Current	Current: 5.4/2.7 A	Synchronous RPM	Synchronous RPM: 1800 & 1500 rpm
Frequency	Frequency: 60 Hz	Speed	Speed: 1725 rpm
Connection Drawing	Connection Drawing: 00546505	Outline Drawing	Outline Drawing: OL19220630
Voltage	Voltage: 230/460 V	Output KW	Output KW: 1.5 kW
Output HP	Output HP: 2 Hp	Frame Size	Frame Size: 90
Efficiency	Efficiency: 86.5 %	Frame Prefix	Frame Prefix: D
Weight	Weight: 48.40 LB	UPC	UPC: 691720099490
Country of Origin	Country of Origin: China

% of Rated Load	0%	25%	50%	75%	100%	115%	125%
% of Rated Load: Current (Amps)	0%: 1.10	25%: 1.25	50%: 1.60	75%: 2.05	100%: 2.70	115%: 3.10	125%: 3.20
% of Rated Load: Rated Output (KW)	0%: 0.08	25%: 0.46	50%: 0.86	75%: 1.27	100%: 1.71	115%: 1.99	125%: 2.18
% of Rated Load: Efficiency (%)	0%: 0.0	25%: 82.3	50%: 87.8	75%: 88.1	100%: 87.9	115%: 86.4	125%: 86.4
% of Rated Load: Power Factor (%)	0%: 9.1	25%: 46.4	50%: 67.4	75%: 78.0	100%: 79.6	115%: 80.5	125%: 85.3
% of Rated Load: Speed (RPM)	0%: 1,798	25%: 1,785	50%: 1,770	75%: 1,755	100%: 1,737	115%: 1,726	125%: 1,718
% of Rated Load: Temp. Rise @ FL	0%: 0.0	25%: 0.0	50%: 0.0	75%: 0.0	100%: 0.0	115%: 0.0	125%: 0.0
% of Rated Load: Torque (ft-lbs)	0%: 0.00	25%: 1.50	50%: 3.00	75%: 4.50	100%: 6.10	115%: 7.00	125%: 7.70

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Curvepoint: Full Load	Current (Amps): 2.70	Current (%): 100.0	Torque (ft-lbs): 6.10	Torque (%): 100.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 2.00
Curvepoint: Locked-Rotor	Current (Amps): 18.10	Current (%): 670.0	Torque (ft-lbs): 17.10	Torque (%): 280.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 2.00
Curvepoint: Break-Down	Current (Amps): 14.20	Current (%): 526.0	Torque (ft-lbs): 20.20	Torque (%): 331.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 2.00
Curvepoint: Pull-Up	Current (Amps): 0.00	Current (%): 0.0	Torque (ft-lbs): 15.40	Torque (%): 252.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 2.00
