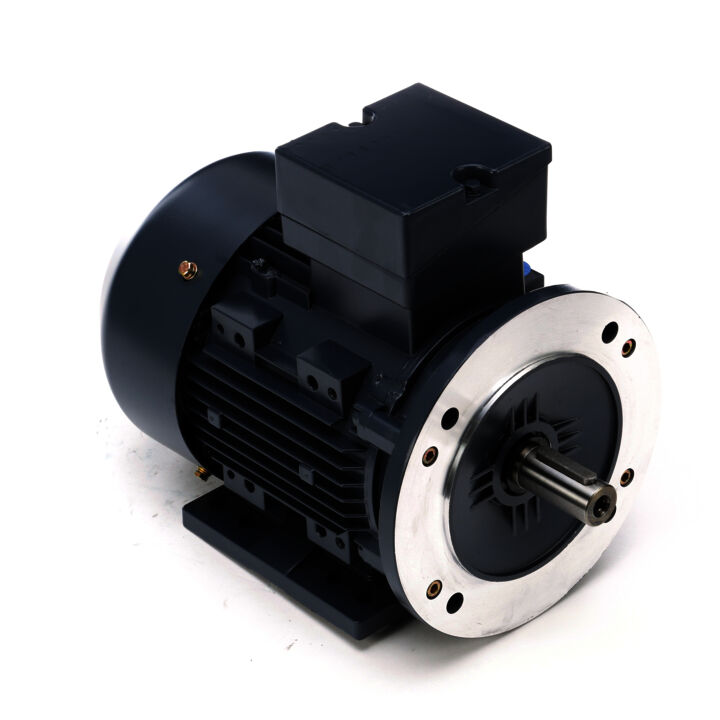

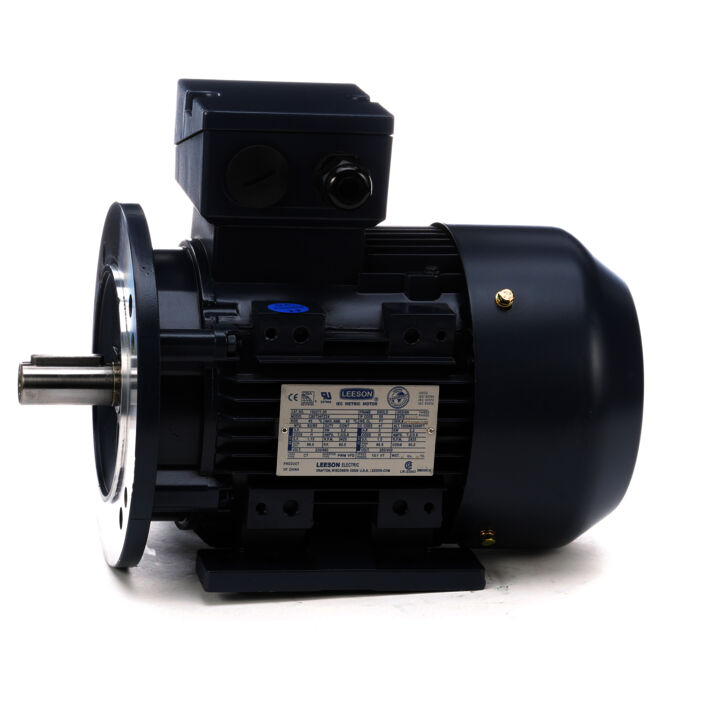

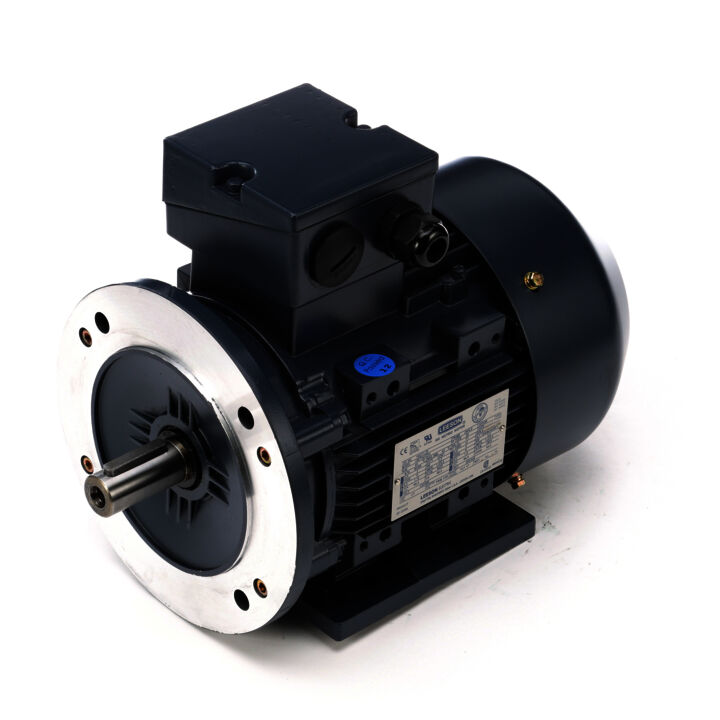

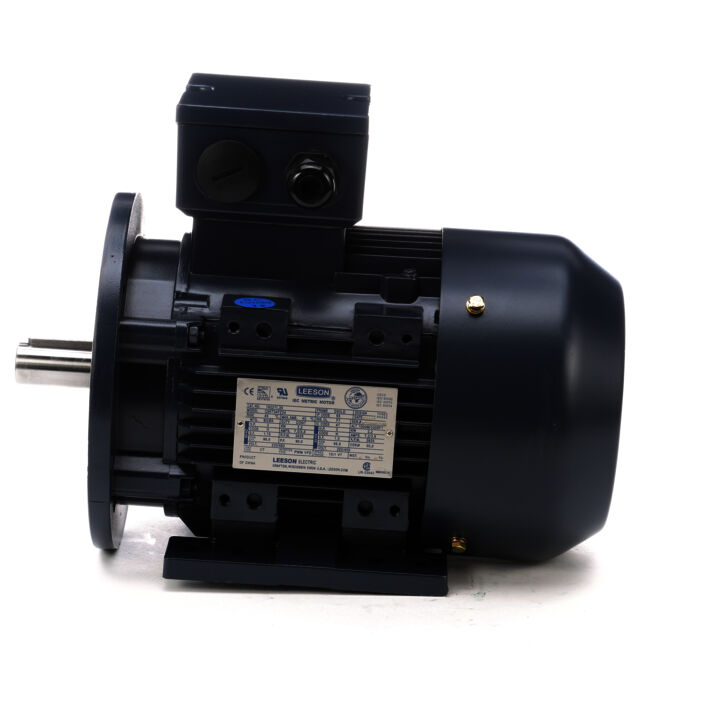

Obsolete Replaced by 192211.00..3HP-2.2kW..3600RPM.D90LD.TEFC.230/460V.3PH.60HZ.CONT.40C..B3 / B5..............

Part#: 192211.30

Catalog#: 192211.30

Weight: 46 lb

location_on Where to Buy

Compare Product

Specifications

Phase	Phase: 3	Output HP	Output HP: 3 & 3 Hp
Output KW	Output KW: 2.2 & 2.2 kW	Voltage	Voltage: 230/460 & 200/400 V
Speed	Speed: 3425 & 2825 rpm	Service Factor	Service Factor: 1.15 & 1.0
Frame	Frame: D90LD	Enclosure	Enclosure: Totally Enclosed Fan Cooled
Thermal Protection	Thermal Protection: No Protection	Efficiency	Efficiency: 86.5 & 85.5 %
Ambient Temperature	Ambient Temperature: 40 °C	Frequency	Frequency: 60 & 50 Hz
Current	Current: 7.0/3.5 & 7.2/3.6 A	Power Factor	Power Factor: 90
Duty	Duty: Continuous	Insulation Class	Insulation Class: F
Design Code	Design Code: NO DESIGN CODE	KVA Code	KVA Code: H
Drive End Bearing Size	Drive End Bearing Size: 6205	Opp Drive End Bearing Size	Opp Drive End Bearing Size: 6205
UL	UL: Recognized	CSA	CSA: Y
CE	CE: Y	IP Code	IP Code: 55
Number of Speeds	Number of Speeds: 1

Electrical Type	Electrical Type: Squirrel Cage Inverter Rated	Starting Method	Starting Method: Line Or Inverter
Poles	Poles: 2	Rotation	Rotation: Reversible
Resistance Main	Resistance Main: 1.47 Ohms	Mounting	Mounting: B3
Motor Orientation	Motor Orientation: Horizontal Or Up Or Down	Drive End Bearing	Drive End Bearing: Ball
Opp Drive End Bearing	Opp Drive End Bearing: Ball	Frame Material	Frame Material: Aluminum
Shaft Type	Shaft Type: IEC	Assembly/Box Mounting	Assembly/Box Mounting: F3
Inverter Load	Inverter Load: CONSTANT 10:1

Service Factor	Service Factor: 1.15	Frame Suffix	Frame Suffix: LD
Current	Current: 7.0/3.5 A	Synchronous RPM	Synchronous RPM: 3600 & 3000 rpm
Frequency	Frequency: 60 Hz	Speed	Speed: 3425 rpm
Connection Drawing	Connection Drawing: 00546505	Outline Drawing	Outline Drawing: OL19221130
Voltage	Voltage: 230/460 V	Output KW	Output KW: 2.2 kW
Output HP	Output HP: 3 Hp	Frame Size	Frame Size: 90
Efficiency	Efficiency: 86.5 %	Frame Prefix	Frame Prefix: D
Weight	Weight: 46.00 LB	UPC	UPC: 691720099513
Country of Origin	Country of Origin: China

% of Rated Load	0%	25%	50%	75%	100%	125%	150%
% of Rated Load: Current (Amps)	0%: 1.15	25%: 1.40	50%: 1.95	75%: 2.65	100%: 3.45	125%: 4.35	150%: 5.40
% of Rated Load: Rated Output (KW)	0%: 0.09	25%: 0.65	50%: 1.25	75%: 1.87	100%: 2.53	125%: 3.25	150%: 4.03
% of Rated Load: Efficiency (%)	0%: 0.0	25%: 85.4	50%: 88.3	75%: 90.2	100%: 88.9	125%: 85.9	150%: 83.0
% of Rated Load: Power Factor (%)	0%: 10.2	25%: 58.6	50%: 80.4	75%: 88.5	100%: 92.0	125%: 93.7	150%: 93.8
% of Rated Load: Speed (RPM)	0%: 3,595	25%: 3,574	50%: 3,530	75%: 3,487	100%: 3,441	125%: 3,386	150%: 3,320
% of Rated Load: Temp. Rise @ FL	0%: 0.0	25%: 0.0	50%: 0.0	75%: 0.0	100%: 32.0	125%: 0.0	150%: 0.0
% of Rated Load: Torque (ft-lbs)	0%: 0.00	25%: 1.10	50%: 2.20	75%: 3.40	100%: 4.60	125%: 5.80	150%: 7.10

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Curvepoint: Pull-Up	Current (Amps): 0.00	Current (%): 0.0	Torque (ft-lbs): 8.10	Torque (%): 176.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 3.00
Curvepoint: Break-Down	Current (Amps): 0.00	Current (%): 0.0	Torque (ft-lbs): 14.30	Torque (%): 311.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 3.00
Curvepoint: Full Load	Current (Amps): 3.45	Current (%): 100.0	Torque (ft-lbs): 4.60	Torque (%): 100.0	Speed (RPM): 3,441	Rated Output (KW): 2.53	Power Factor (%): 0.0	Rated Output (Hp): 3.00
Curvepoint: Locked-Rotor	Current (Amps): 51.00	Current (%): 1,478.0	Torque (ft-lbs): 11.60	Torque (%): 252.0	Speed (RPM): 0	Rated Output (KW): 0.00	Power Factor (%): 0.0	Rated Output (Hp): 3.00
