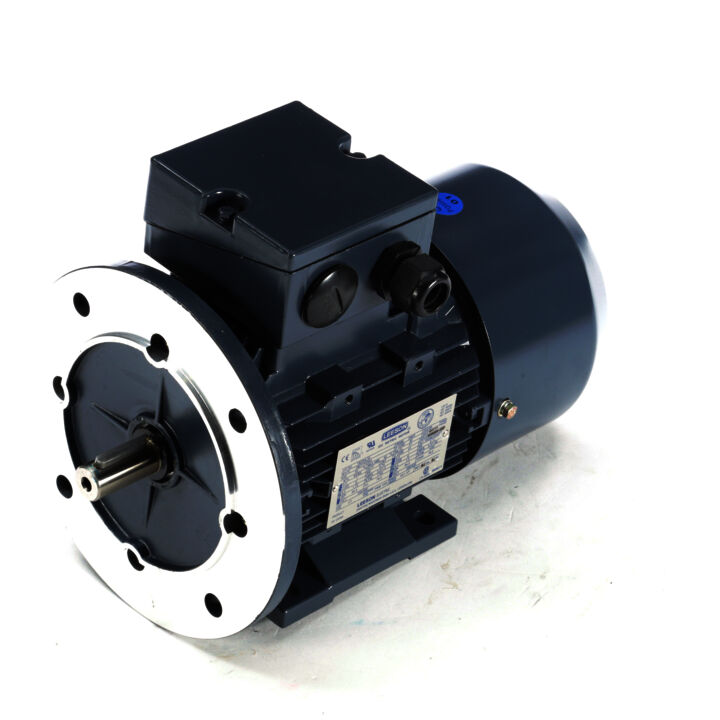

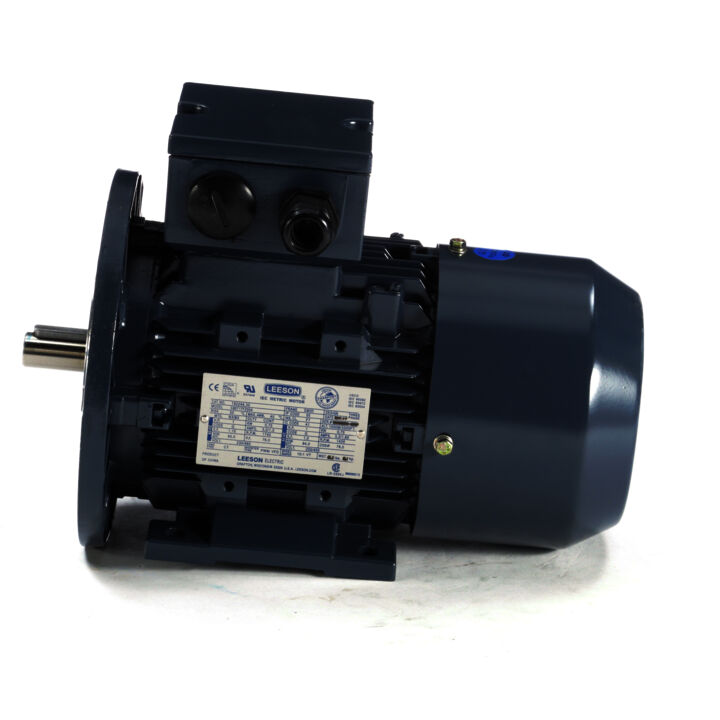

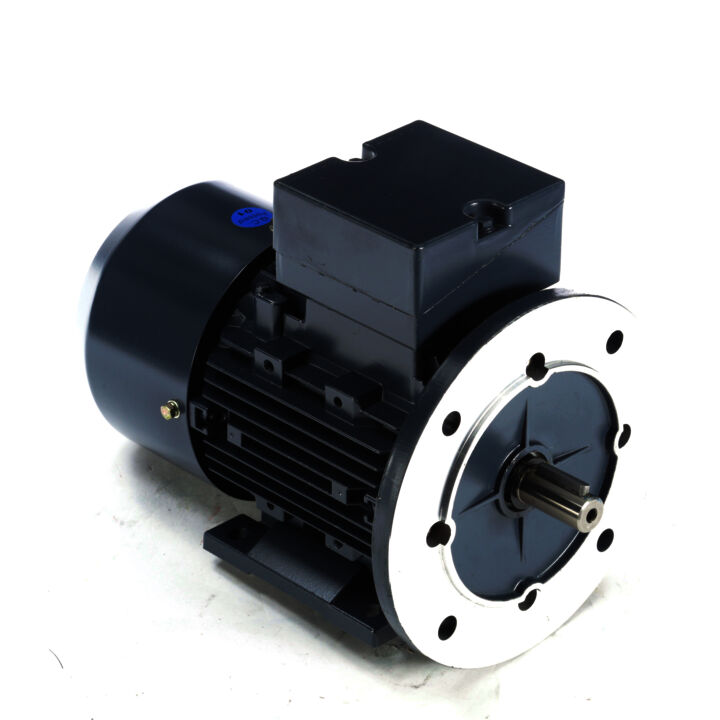

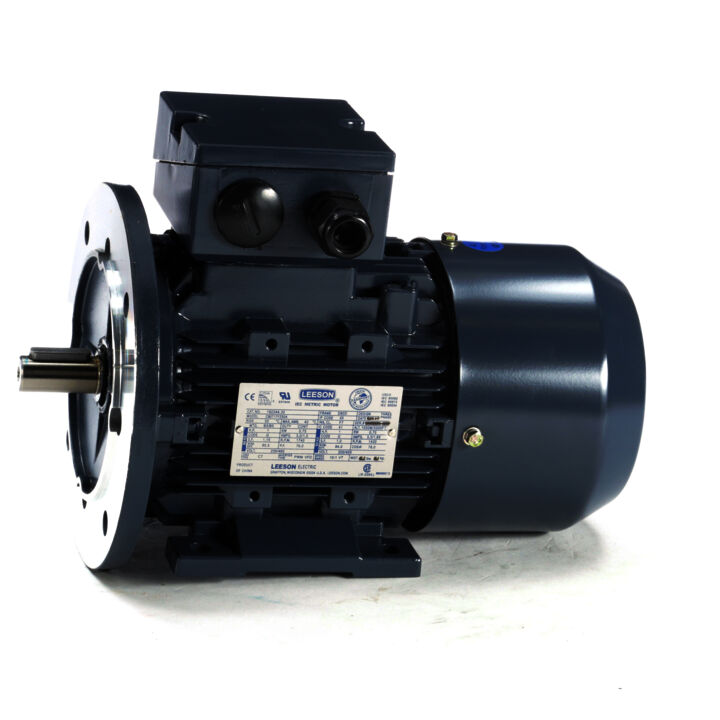

Obsolete, replaced by 192244.00 -.1HP-0.75kW..1800RPM.D80D.TEFC.230/460V.3PH.60HZ.CONT.40C..B3 / B5..............
Resource Center

Obsolete, replaced by 192244.00 -.1HP-0.75kW..1800RPM.D80D.TEFC.230/460V.3PH.60HZ.CONT.40C..B3 / B5..............

Part#: 192244.30

Catalog#: 192244.30

Weight: 33.07 lb

location_on Where to Buy

Specifications

Phase Phase: 3 Output HP Output HP: 1 & 1 Hp
Output KW Output KW: 0.75 & 0.75 kW Voltage Voltage: 230/460 & 200/400 V
Speed Speed: 1740 & 1430 rpm Service Factor Service Factor: 1.15 & 1.0
Frame Frame: D80D Enclosure Enclosure: Totally Enclosed Fan Cooled
Thermal Protection Thermal Protection: No Protection Efficiency Efficiency: 85.5 & 84 %
Ambient Temperature Ambient Temperature: 40 °C Frequency Frequency: 60 & 50 Hz
Current Current: 3.0/1.5 & 3.3/1.65 A Power Factor Power Factor: 76
Duty Duty: Continuous Insulation Class Insulation Class: F
Design Code Design Code: NO DESIGN CODE KVA Code KVA Code: G
Drive End Bearing Size Drive End Bearing Size: 6204 Opp Drive End Bearing Size Opp Drive End Bearing Size: 6204
UL UL: Recognized CSA CSA: Y
CE CE: Y IP Code IP Code: 55
Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: Squirrel Cage Induction Run Starting Method Starting Method: Across The Line
Poles Poles: 4 Rotation Rotation: Reversible
Resistance Main Resistance Main: 14 Ohms Mounting Mounting: B3
Motor Orientation Motor Orientation: Horizontal Or Up Or Down Drive End Bearing Drive End Bearing: Ball
Opp Drive End Bearing Opp Drive End Bearing: Ball Frame Material Frame Material: Aluminum
Shaft Type Shaft Type: IEC Assembly/Box Mounting Assembly/Box Mounting: F3
Service Factor Service Factor: 1.15 Frame Suffix Frame Suffix: D
Current Current: 3.0/1.5 A Synchronous RPM Synchronous RPM: 1800 & 1500 rpm
Frequency Frequency: 60 Hz Speed Speed: 1740 rpm
Connection Drawing Connection Drawing: 00546505 Outline Drawing Outline Drawing: 0208000272
Voltage Voltage: 230/460 V Output KW Output KW: 0.75 kW
Output HP Output HP: 1 Hp Frame Size Frame Size: 80
Efficiency Efficiency: 85.5 % Frame Prefix Frame Prefix: D
Weight Weight: 15.00 KG UPC UPC: 691720099520
Country of Origin Country of Origin: China
% of Rated Load0%25%50%75%100%115%125%
% of Rated Load: Current (Amps) 0%: 0.80 25%: 0.80 50%: 1.00 75%: 1.20 100%: 1.40 115%: 1.60 125%: 1.70
% of Rated Load: Rated Output (KW) 0%: 0.05 25%: 0.24 50%: 0.44 75%: 0.65 100%: 0.87 115%: 1.02 125%: 1.11
% of Rated Load: Efficiency (%) 0%: 0.0 25%: 78.0 50%: 85.3 75%: 87.5 100%: 86.5 115%: 85.6 125%: 84.1
% of Rated Load: Power Factor (%) 0%: 7.7 25%: 37.7 50%: 55.2 75%: 68.0 100%: 78.4 115%: 79.6 125%: 82.1
% of Rated Load: Speed (RPM) 0%: 1,798 25%: 1,780 50%: 1,761 75%: 1,740 100%: 1,716 115%: 1,700 125%: 1,689
% of Rated Load: Temp. Rise @ FL 0%: 0.0 25%: 0.0 50%: 0.0 75%: 0.0 100%: 0.0 115%: 0.0 125%: 0.0
% of Rated Load: Torque (ft-lbs) 0%: 0.00 25%: 0.74 50%: 1.50 75%: 2.30 100%: 3.10 115%: 3.60 125%: 3.90
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Curvepoint: Locked-Rotor Current (Amps): 10.10 Current (%): 721.0 Torque (ft-lbs): 13.10 Torque (%): 423.0 Speed (RPM): 0 Rated Output (KW): 0.00 Power Factor (%): 0.0 Rated Output (Hp): 1.00
Curvepoint: Break-Down Current (Amps): 0.00 Current (%): 0.0 Torque (ft-lbs): 13.10 Torque (%): 423.0 Speed (RPM): 0 Rated Output (KW): 0.00 Power Factor (%): 0.0 Rated Output (Hp): 1.00
Curvepoint: Pull-Up Current (Amps): 0.00 Current (%): 0.0 Torque (ft-lbs): 11.80 Torque (%): 381.0 Speed (RPM): 0 Rated Output (KW): 0.00 Power Factor (%): 0.0 Rated Output (Hp): 1.00
Curvepoint: Full Load Current (Amps): 1.40 Current (%): 100.0 Torque (ft-lbs): 3.10 Torque (%): 100.0 Speed (RPM): 1,716 Rated Output (KW): 0.00 Power Factor (%): 0.0 Rated Output (Hp): 1.00
