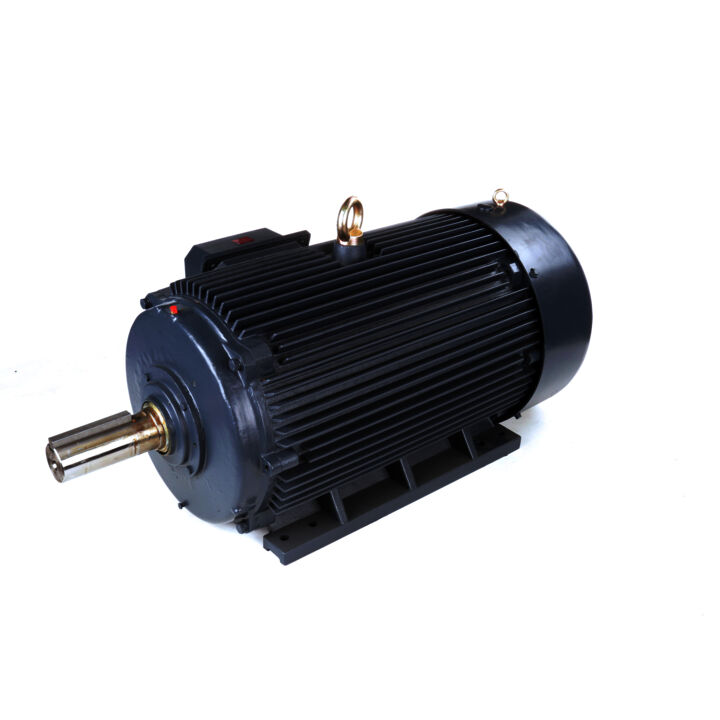

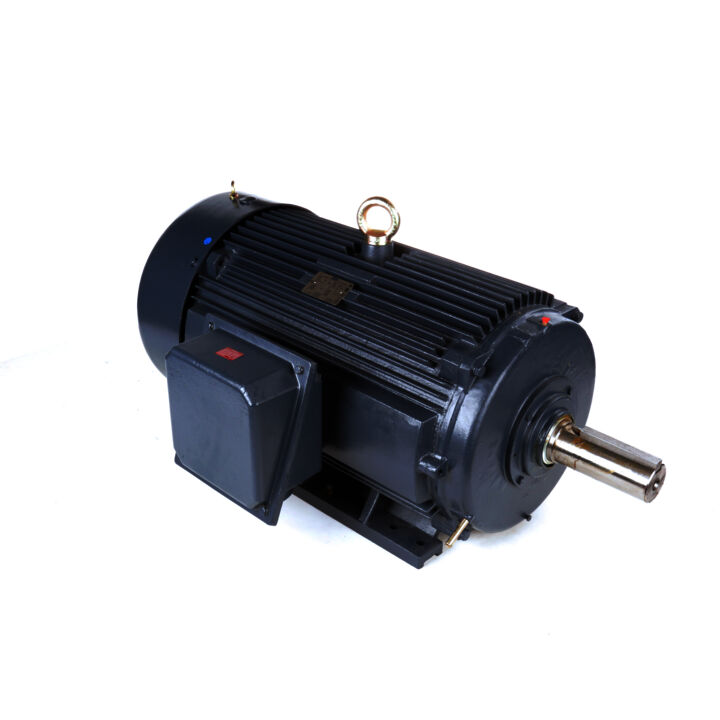

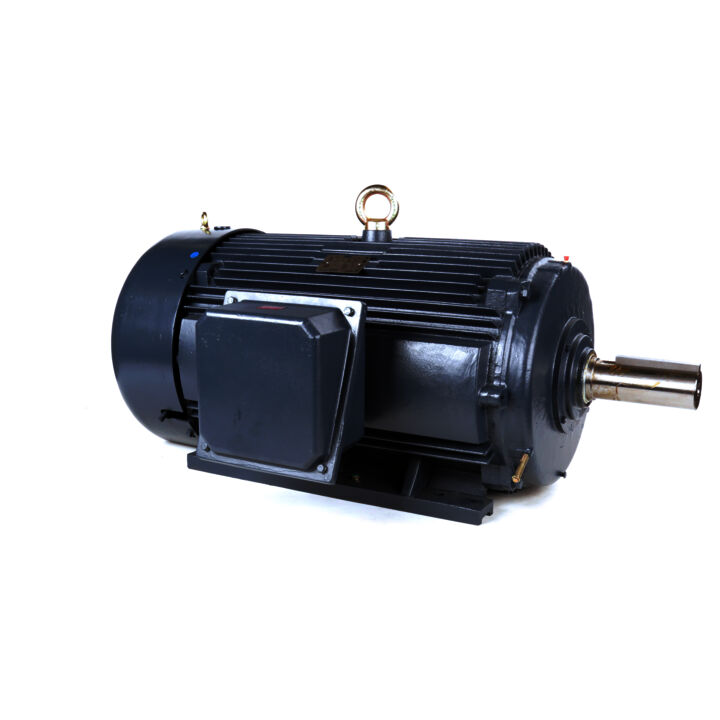

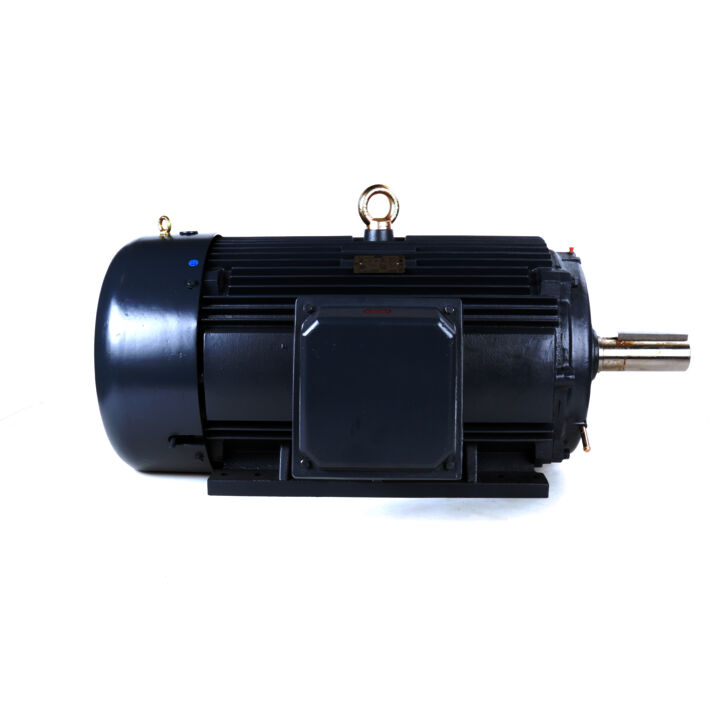

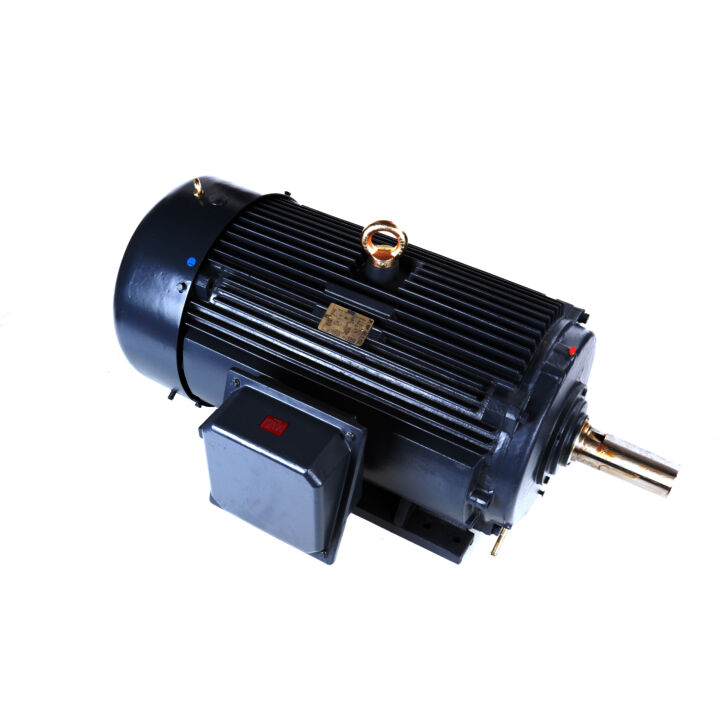

Other Purpose Motor, 250 & 200 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 1800 & 1500 RPM, 447/449T Frame, TEFC
Resource Center

Other Purpose Motor, 250 & 200 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 1800 & 1500 RPM, 447/449T Frame, TEFC

Part#: 194195.00

Catalog#: 194195.00

Model#: C449T17WB1A

Weight: 2200 lb

location_on Where to Buy

Key Features

  • NEMA® Design C
  • NEMA Premium efficient
  • Inverter-rated
  • Roller bearing - drive end only for belted load applications only
  • Shaft seals - both ends
  • 4140 grade high strength shaft material
  • Full cast iron construction
  • Inverter rated insulation system
  • Epoxy painted
  • N/C thermostats

Specifications

Phase Phase: 3 Output HP Output HP: 250 & 200 Hp
Output KW Output KW: 187.0 & 149.0 kW Voltage Voltage: 460 & 380 V
Speed Speed: 1790 & 1490 rpm Service Factor Service Factor: 1.15 & 1.15
Frame Frame: 447/449T Enclosure Enclosure: Totally Enclosed Fan Cooled
Thermal Protection Thermal Protection: No Protection Efficiency Efficiency: 96.2 & 95.8 %
Ambient Temperature Ambient Temperature: 40 °C Frequency Frequency: 60 & 50 Hz
Current Current: 280 & 277 A Power Factor Power Factor: 87
Duty Duty: Continuous Insulation Class Insulation Class: F
Design Code Design Code: C KVA Code KVA Code: G
Drive End Bearing Size Drive End Bearing Size: NU319 Opp Drive End Bearing Size Opp Drive End Bearing Size: 6317
UL UL: Recognized CSA CSA: Y
CE CE: Y IP Code IP Code: 55
Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: Squirrel Cage Inverter Rated Starting Method Starting Method: Part Wdg Start & Wye Start Delta Run Or Inverter
Poles Poles: 4 Rotation Rotation: Reversible
Resistance Main Resistance Main: .012 Ohms Mounting Mounting: Rigid Base
Motor Orientation Motor Orientation: Horizontal Drive End Bearing Drive End Bearing: Roller
Opp Drive End Bearing Opp Drive End Bearing: Ball Frame Material Frame Material: Cast Iron
Shaft Type Shaft Type: T Overall Length Overall Length: 55.91 in
Frame Length Frame Length: 31.88 in Shaft Diameter Shaft Diameter: 3.375 in
Shaft Extension Shaft Extension: 8.81 in Assembly/Box Mounting Assembly/Box Mounting: F1/F2 CAPABLE
Inverter Load Inverter Load: CONSTANT 2:1
Service Factor Service Factor: 1.15 Frame Suffix Frame Suffix: T
Current Current: 280 A Synchronous RPM Synchronous RPM: 1800 & 1500 rpm
Frequency Frequency: 60 Hz Speed Speed: 1790 rpm
Connection Drawing Connection Drawing: EE7300CB-LE Outline Drawing Outline Drawing: SS620788-449T
Voltage Voltage: 460 V Output KW Output KW: 187 kW
Output HP Output HP: 250 Hp Frame Size Frame Size: 449
Torque UOM Torque UOM: LB-FT Efficiency Efficiency: 96.2 %
Packaged Length Packaged Length: 56.00 IN Weight Weight: 2200.00 LB
UPC UPC: 691720089453 Packaged Width Packaged Width: 46.00 IN
Country of Origin Country of Origin: China Packaged Height Packaged Height: 30.85 IN
% of Rated Load0%25%50%75%100%115%125%
% of Rated Load: Current (Amps) 0%: 80.00 25%: 105.00 50%: 155.00 75%: 215.00 100%: 280.00 115%: 318.00 125%: 345.00
% of Rated Load: Rated Output (KW) 0%: 5.00 25%: 50.50 50%: 98.00 75%: 146.00 100%: 195.00 115%: 224.00 125%: 244.00
% of Rated Load: Efficiency (%) 0%: 0.0 25%: 93.0 50%: 95.4 75%: 96.2 100%: 96.2 115%: 96.2 125%: 95.8
% of Rated Load: Power Factor (%) 0%: 5.0 25%: 61.0 50%: 80.0 75%: 85.0 100%: 87.0 115%: 88.0 125%: 88.0
% of Rated Load: Speed (RPM) 0%: 1,800 25%: 1,796 50%: 1,794 75%: 1,792 100%: 1,790 115%: 1,788 125%: 1,786
% of Rated Load: Temp. Rise @ FL 0%: 0.0 25%: 0.0 50%: 0.0 75%: 0.0 100%: 80.0 115%: 110.0 125%: 0.0
% of Rated Load: Torque (ft-lbs) 0%: 0.00 25%: 183.00 50%: 366.00 75%: 550.00 100%: 734.00 115%: 845.00 125%: 920.00
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Curvepoint: 1/3 Current (Amps): 1,775.00 Current (%): 625.0 Torque (ft-lbs): 1,450.00 Torque (%): 195.0 Speed (RPM): 600 Rated Output (KW): Power Factor (%): Rated Output (Hp): 250.00
Curvepoint: No Load Current (Amps): 80.00 Current (%): 29.0 Torque (ft-lbs): 0.00 Torque (%): 0.0 Speed (RPM): 1,800 Rated Output (KW): Power Factor (%): 5.0 Rated Output (Hp): 250.00
Curvepoint: 2/3 Current (Amps): 1,600.00 Current (%): 575.0 Torque (ft-lbs): 1,600.00 Torque (%): 215.0 Speed (RPM): 1,200 Rated Output (KW): Power Factor (%): Rated Output (Hp): 250.00
Curvepoint: Full Load Current (Amps): 280.00 Current (%): 100.0 Torque (ft-lbs): 734.00 Torque (%): 100.0 Speed (RPM): 1,790 Rated Output (KW): Power Factor (%): 87.0 Rated Output (Hp): 250.00
Curvepoint: Pull-Up Current (Amps): 1,700.00 Current (%): 600.0 Torque (ft-lbs): 1,450.00 Torque (%): 195.0 Speed (RPM): 900 Rated Output (KW): Power Factor (%): Rated Output (Hp): 250.00
Curvepoint: Break-Down Current (Amps): 1,000.00 Current (%): 360.0 Torque (ft-lbs): 1,800.00 Torque (%): 245.0 Speed (RPM): 1,725 Rated Output (KW): Power Factor (%): 62.0 Rated Output (Hp): 250.00
Curvepoint: Locked-Rotor Current (Amps): 1,825.00 Current (%): 656.0 Torque (ft-lbs): 1,700.00 Torque (%): 230.0 Speed (RPM): 0 Rated Output (KW): Power Factor (%): 39.0 Rated Output (Hp): 250.00

Efficiency

CountryComplies with standards
Country: United States
Complies with standards: check_circle
Country: Canada
Complies with standards: check_circle
Country: Mexico
Complies with standards: check_circle
Country: Australia
Complies with standards: check_circle
Country: Brazil
Complies with standards: check_circle
Country: Chile
Complies with standards: check_circle
Country: China
Complies with standards: check_circle
Country: Europe
Complies with standards: check_circle
Country: Japan
Complies with standards: check_circle
Country: New Zealand
Complies with standards: check_circle
Country: Saudi Arabia
Complies with standards: check_circle
Country: South Korea
Complies with standards: check_circle
