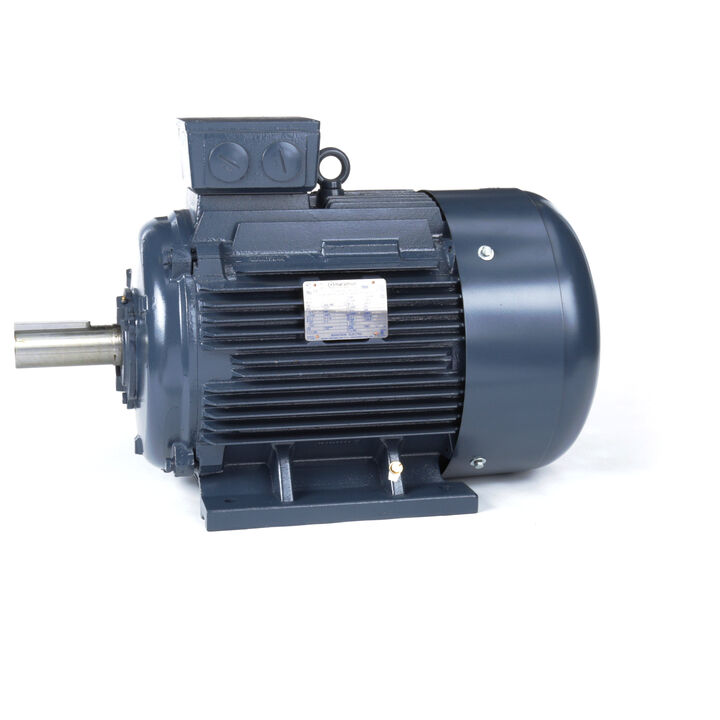

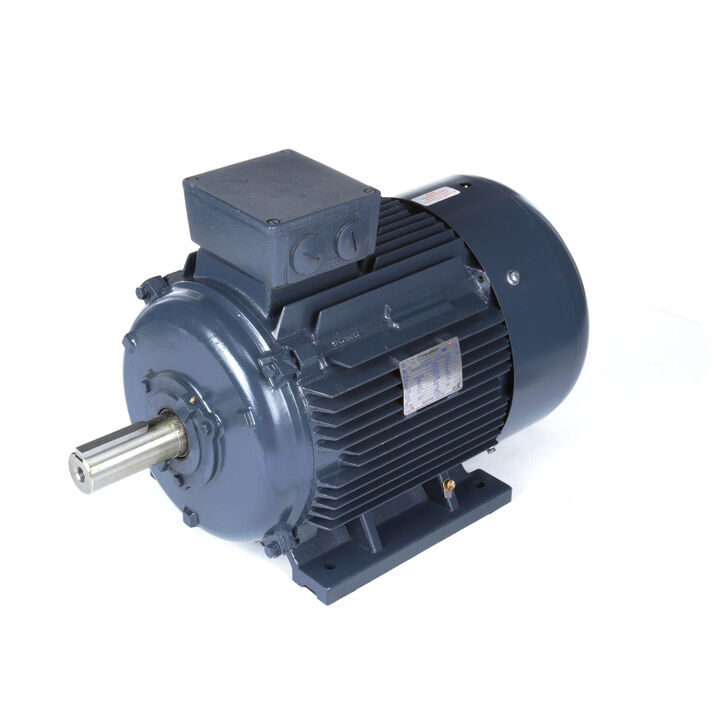

Cast Iron Motor, 40 & 30 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 1200 & 1000 RPM, 225M Frame, TEFC
Cast Iron Motor, 40 & 30 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 1200 & 1000 RPM, 225M Frame, TEFC
Part#: 225MTFC6586
Catalog#: R347A
Model#: 225MTFC6586AA
Weight: 847 lb
List Price: $11,769.00
Your Price: Login is Required
Key Features
- Meets IE3 European and NEMA Premium® efficiencies
- Aluminum (63-90 frame) or Cast Iron (100-315 frame) frame construction
- Nameplated 60/50 hertz at same HP, above 90 frame is 60/50 Hz at next lower HP
- MAX GUARD® Class F Insulation, Class B rise @ rated KW
- IP55 weatherproof enclosure, Rotatable/Removable Base (63-90 frame)
- Wye Start-Delta Run on 160 Frame and larger
- 12 Leads for WYE-DELTA, part winding on low voltage, or across-the-line starting
- Top Mounted/Oversized gasketed terminal box
- Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty (63-90 frame “Below Deck”)
- 1.15 Service Factor on 60 Hz sine wave, 1.0 SF or VFD, IEC Design “N” with NEMA “B” Torques
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 40 & 30 Hp |
| Output KW | Output KW: 30.0 & 22.4 kW | Voltage | Voltage: 230/460 & 200/400 V |
| Speed | Speed: 1190 & 993 rpm | Service Factor | Service Factor: 1.15 & 1.15 |
| Frame | Frame: 225M | Enclosure | Enclosure: Totally Enclosed Fan Cooled |
| Thermal Protection | Thermal Protection: Thermostat | Efficiency | Efficiency: 94.1 & 94.5 % |
| Ambient Temperature | Ambient Temperature: 40 °C | Frequency | Frequency: 60 & 50 Hz |
| Current | Current: 101/50.5 & 90/45 A | Power Factor | Power Factor: 79 |
| Duty | Duty: Continuous | Insulation Class | Insulation Class: F |
| Design Code | Design Code: B | KVA Code | KVA Code: G |
| Drive End Bearing Size | Drive End Bearing Size: 6313 | Opp Drive End Bearing Size | Opp Drive End Bearing Size: 6313 |
| UL | UL: Recognized | CSA | CSA: Y |
| CE | CE: Y | IP Code | IP Code: 55 |
| Number of Speeds | Number of Speeds: 1 |
| Electrical Type | Electrical Type: Squirrel Cage Inverter Rated | Starting Method | Starting Method: Part Wdg Start & Wye Start Delta Run Or Inverter |
| Poles | Poles: 6 | Rotation | Rotation: Reversible |
| Resistance Main | Resistance Main: .152 Ohms | Mounting | Mounting: Rigid Base |
| Motor Orientation | Motor Orientation: Horizontal | Drive End Bearing | Drive End Bearing: Ball |
| Opp Drive End Bearing | Opp Drive End Bearing: Ball | Frame Material | Frame Material: Cast Iron |
| Shaft Type | Shaft Type: IEC | Overall Length | Overall Length: 32.95 in |
| Shaft Diameter | Shaft Diameter: 2.333 in | Shaft Extension | Shaft Extension: 5.51 in |
| Assembly/Box Mounting | Assembly/Box Mounting: F3 | Inverter Load | Inverter Load: CONSTANT 2:1 |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: M |
| Current | Current: 101.0/50.5 A | Synchronous RPM | Synchronous RPM: 1200 & 1000 rpm |
| Frequency | Frequency: 60 Hz | Speed | Speed: 1190 rpm |
| Connection Drawing | Connection Drawing: 004172.01 | Outline Drawing | Outline Drawing: SS622241 |
| Voltage | Voltage: 230/460 V | Output KW | Output KW: 30 kW |
| Output HP | Output HP: 40 Hp | Frame Size | Frame Size: 225 |
| Torque UOM | Torque UOM: LB-FT | Efficiency | Efficiency: 94.1 % |
| Packaged Length | Packaged Length: 35.00 IN | Weight | Weight: 847.00 LB |
| UPC | UPC: 722856026767 | Packaged Width | Packaged Width: 26.00 IN |
| HTC | HTC: 8501.52.8040 | Country of Origin | Country of Origin: China |
| Packaged Height | Packaged Height: 27.00 IN |
| % of Rated Load | 0% | 25% | 50% | 75% | 100% | 115% | 125% |
|---|---|---|---|---|---|---|---|
| % of Rated Load: Current (Amps) | 0%: 19.00 | 25%: 23.50 | 50%: 30.50 | 75%: 39.20 | 100%: 50.50 | 115%: 57.50 | 125%: 63.50 |
| % of Rated Load: Rated Output (KW) | 0%: 0.62 | 25%: 8.20 | 50%: 15.80 | 75%: 23.60 | 100%: 31.60 | 115%: 36.80 | 125%: 39.90 |
| % of Rated Load: Efficiency (%) | 0%: 0.0 | 25%: 91.0 | 50%: 94.1 | 75%: 94.5 | 100%: 94.1 | 115%: 93.6 | 125%: 93.0 |
| % of Rated Load: Power Factor (%) | 0%: 4.0 | 25%: 43.5 | 50%: 63.5 | 75%: 75.5 | 100%: 79.0 | 115%: 79.5 | 125%: 79.0 |
| % of Rated Load: Speed (RPM) | 0%: 1,200 | 25%: 1,197 | 50%: 1,196 | 75%: 1,194 | 100%: 1,190 | 115%: 1,189 | 125%: 1,188 |
| % of Rated Load: Temp. Rise @ FL | 0%: 0.0 | 25%: 0.0 | 50%: 0.0 | 75%: 0.0 | 100%: 43.0 | 115%: 58.0 | 125%: 67.0 |
| % of Rated Load: Torque (ft-lbs) | 0%: 0.00 | 25%: 43.90 | 50%: 87.80 | 75%: 132.00 | 100%: 176.00 | 115%: 203.00 | 125%: 221.00 |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
|---|---|---|---|---|---|---|---|---|
| Curvepoint: Break-Down | Current (Amps): 168.00 | Current (%): 332.0 | Torque (ft-lbs): 420.00 | Torque (%): 238.0 | Speed (RPM): 1,150 | Rated Output (KW): | Power Factor (%): 60.5 | Rated Output (Hp): 40.00 |
| Curvepoint: 1/3 | Current (Amps): 277.00 | Current (%): 548.0 | Torque (ft-lbs): 225.00 | Torque (%): 127.0 | Speed (RPM): 400 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 40.00 |
| Curvepoint: Pull-Up | Current (Amps): 264.00 | Current (%): 522.0 | Torque (ft-lbs): 222.00 | Torque (%): 126.0 | Speed (RPM): 600 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 40.00 |
| Curvepoint: Locked-Rotor | Current (Amps): 290.00 | Current (%): 584.0 | Torque (ft-lbs): 303.00 | Torque (%): 172.0 | Speed (RPM): 0 | Rated Output (KW): | Power Factor (%): 32.0 | Rated Output (Hp): 40.00 |
| Curvepoint: No Load | Current (Amps): 19.00 | Current (%): 37.6 | Torque (ft-lbs): 0.00 | Torque (%): 0.0 | Speed (RPM): 1,200 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 40.00 |
| Curvepoint: Full Load | Current (Amps): 50.50 | Current (%): 100.0 | Torque (ft-lbs): 176.00 | Torque (%): 100.0 | Speed (RPM): 1,190 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 40.00 |
| Curvepoint: 2/3 | Current (Amps): 244.00 | Current (%): 483.0 | Torque (ft-lbs): 217.00 | Torque (%): 123.0 | Speed (RPM): 800 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 40.00 |
Efficiency
| Country | Complies with standards |
|---|---|
| Country: United States | Complies with standards: check_circle |
| Country: Canada | Complies with standards: check_circle |
| Country: Mexico | Complies with standards: check_circle |
| Country: Australia | Complies with standards: check_circle |
| Country: Brazil | Complies with standards: check_circle |
| Country: Chile | Complies with standards: check_circle |
| Country: China | Complies with standards: check_circle |
| Country: Europe | Complies with standards: check_circle |
| Country: Japan | Complies with standards: check_circle |
| Country: New Zealand | Complies with standards: check_circle |
| Country: Saudi Arabia | Complies with standards: check_circle |
| Country: South Korea | Complies with standards: check_circle |
