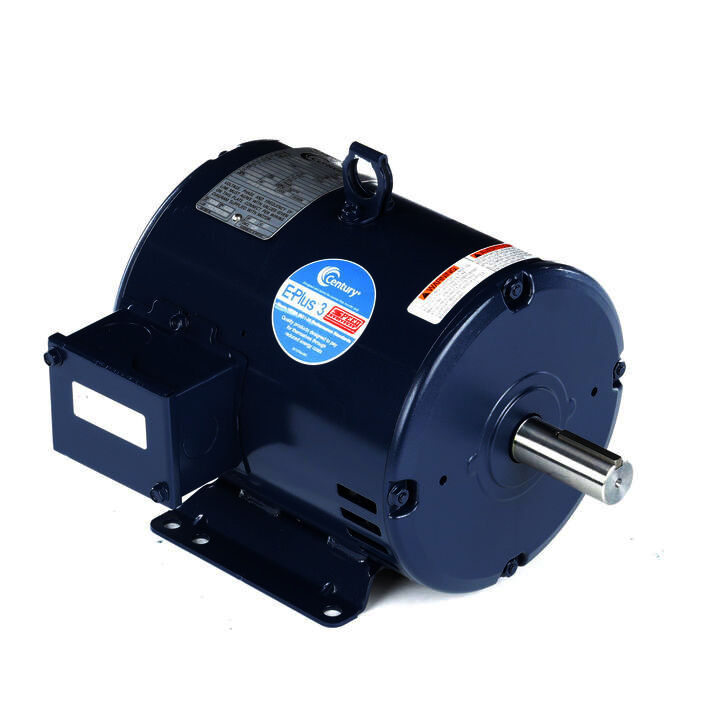

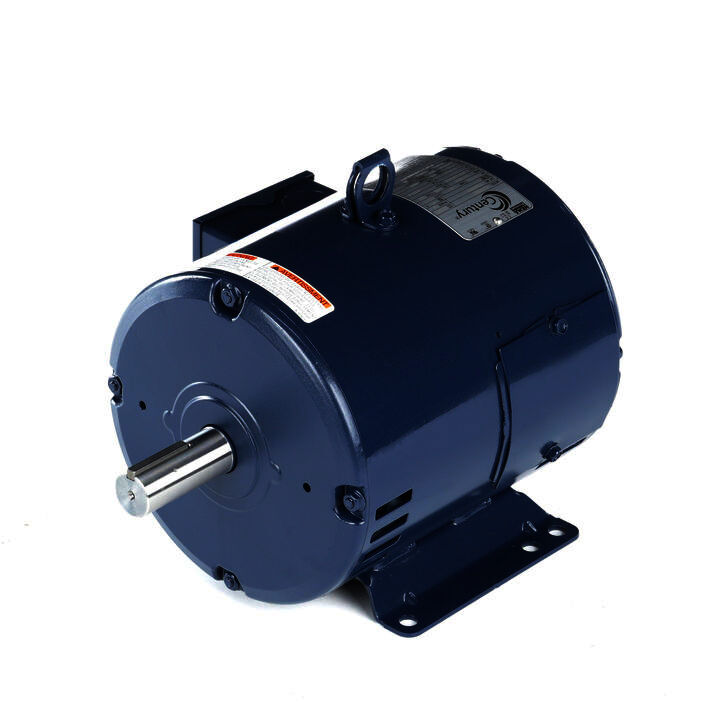

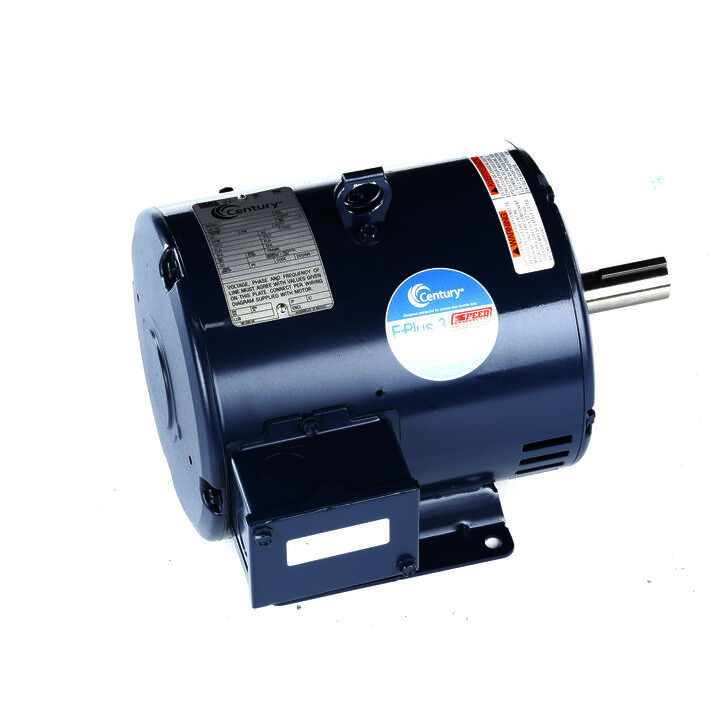

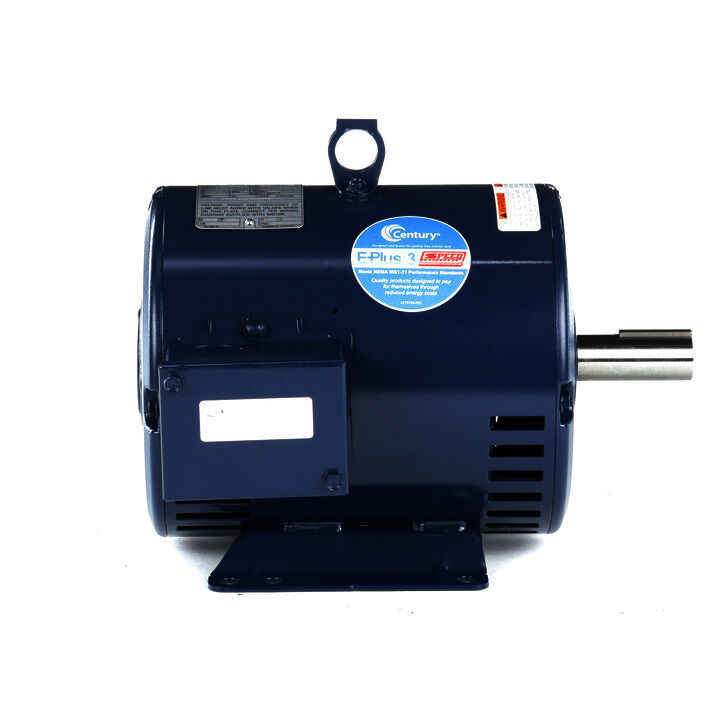

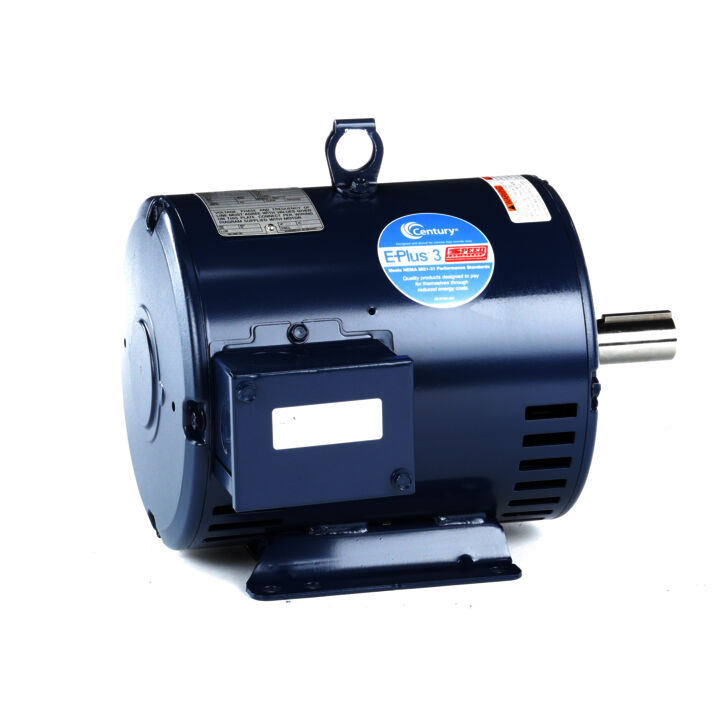

General Purpose Motor, 1 1/2 HP, 3 Ph, 60 Hz, 230/460 V, 1200 RPM, 182T Frame, DP
General Purpose Motor, 1 1/2 HP, 3 Ph, 60 Hz, 230/460 V, 1200 RPM, 182T Frame, DP
Part#: E206M2
Catalog#: E206M2
Weight: 143 lb
List Price: $1,521.00
Your Price: Login is Required
Key Features
- Meets or exceeds all USA mandated efficiencies
- Rolled steel construction
- 6:1 Variable Torque
- 60/50 Hz (50Hz @ next lower HP, 1.15 SF)
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 1 1/2 Hp |
| Output KW | Output KW: 1.1 kW | Voltage | Voltage: 230/460 V |
| Speed | Speed: 1170 rpm | Service Factor | Service Factor: 1.15 |
| Frame | Frame: 182T | Enclosure | Enclosure: Drip Proof |
| Thermal Protection | Thermal Protection: No Protection | Efficiency | Efficiency: 86.5 % |
| Ambient Temperature | Ambient Temperature: 40 °C | Frequency | Frequency: 60 Hz |
| Current | Current: 6.2/3.1 A | Duty | Duty: Continuous |
| Insulation Class | Insulation Class: F | UL | UL: Recognized |
| CSA | CSA: Y | CE | CE: Y |
| Number of Speeds | Number of Speeds: 1 |
| Electrical Type | Electrical Type: Polyphase | Starting Method | Starting Method: Across The Line |
| Poles | Poles: 6 | Rotation | Rotation: Reversible |
| Mounting | Mounting: Rigid Base | Drive End Bearing | Drive End Bearing: Ball |
| Opp Drive End Bearing | Opp Drive End Bearing: Ball | Frame Material | Frame Material: Rolled Steel |
| Shaft Type | Shaft Type: Keyed | Overall Length | Overall Length: 13.19 in |
| Frame Length | Frame Length: 9 in | Shaft Diameter | Shaft Diameter: 1.125 in |
| Shaft Extension | Shaft Extension: 2.81 in |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: T |
| Synchronous RPM | Synchronous RPM: 1200 rpm | Frequency | Frequency: 60 Hz |
| Speed | Speed: 1170 rpm | Connection Drawing | Connection Drawing: 005010.01CY |
| Outline Drawing | Outline Drawing: E206M2-S01 | Voltage | Voltage: 230/460 V |
| Output KW | Output KW: 1.1 kW | Output HP | Output HP: 1.50 Hp |
| Frame Size | Frame Size: 182 | Efficiency | Efficiency: 86.5 % |
| Packaged Length | Packaged Length: 17.94 IN | Weight | Weight: 143.00 LB |
| UPC | UPC: 786674066930 | Packaged Width | Packaged Width: 13.06 IN |
| Country of Origin | Country of Origin: Mexico | Packaged Height | Packaged Height: 12.88 IN |
