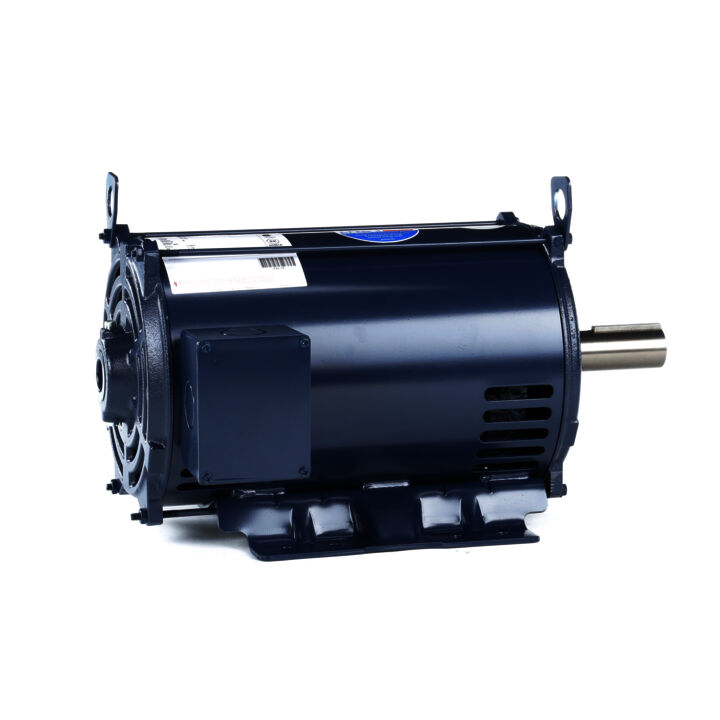

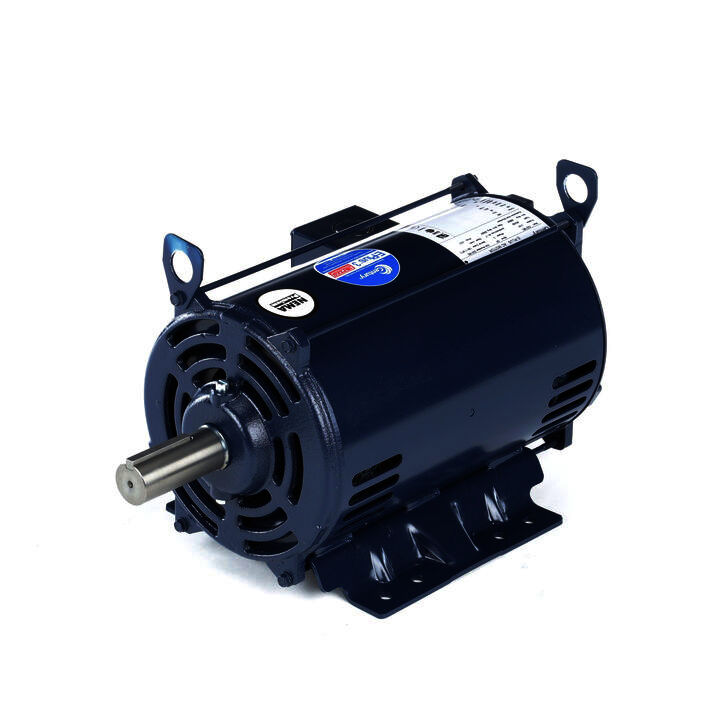

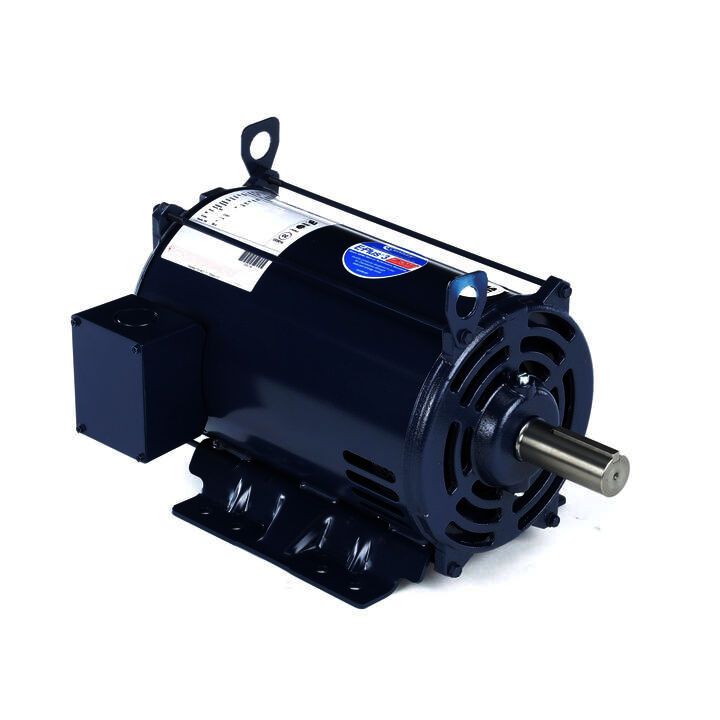

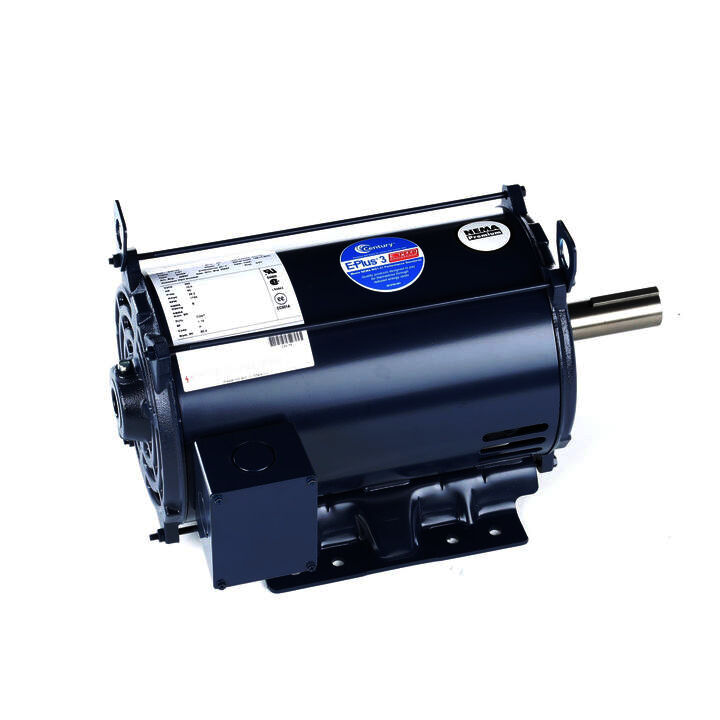

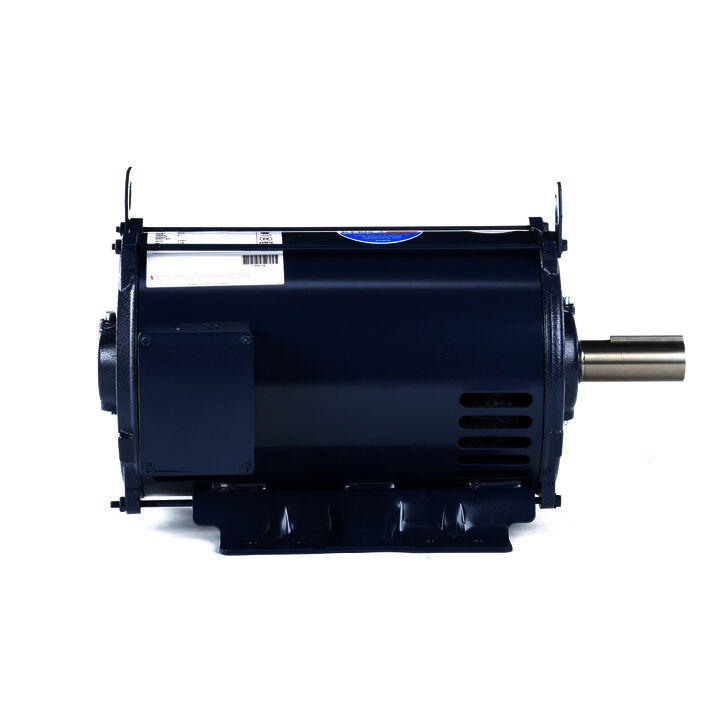

General Purpose Motor, 10.0 HP, 3 Ph, 60 Hz, 200 V, 1800 RPM, 215T Frame, DP

Part#: E331M2

Catalog#: E331M2

Weight: 139 lb

location_on Where to Buy

Key Features

  • Meets or exceeds all USA mandated efficiencies
  • Rolled steel construction
  • 6:1 Variable Torque
  • 60/50 Hz (50Hz @ next lower HP, 1.15 SF)

Specifications

Phase Phase: 3 Output HP Output HP: 10 Hp
Output KW Output KW: 7.5 kW Voltage Voltage: 200 V
Speed Speed: 1755 rpm Service Factor Service Factor: 1.15
Frame Frame: 215T Enclosure Enclosure: Drip Proof
Thermal Protection Thermal Protection: No Protection Ambient Temperature Ambient Temperature: 40 °C
Frequency Frequency: 60 Hz Current Current: 29.2 A
Duty Duty: Continuous Insulation Class Insulation Class: F
UL UL: Recognized CSA CSA: Y
CE CE: N Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: Three Phase Starting Method Starting Method: Across The Line
Poles Poles: 4 Rotation Rotation: Counterclockwise
Mounting Mounting: Rigid Base Drive End Bearing Drive End Bearing: Ball
Opp Drive End Bearing Opp Drive End Bearing: Ball Frame Material Frame Material: Rolled Steel
Shaft Type Shaft Type: Keyed Overall Length Overall Length: 19.01 in
Frame Length Frame Length: 12.50 in Shaft Diameter Shaft Diameter: 1.375 in
Shaft Extension Shaft Extension: 3.47 in
Service Factor Service Factor: 1.15 Frame Suffix Frame Suffix: T
Synchronous RPM Synchronous RPM: 1800 rpm Frequency Frequency: 60 Hz
Speed Speed: 1755 rpm Connection Drawing Connection Drawing: A-EE7300-CY
Outline Drawing Outline Drawing: 18748401-002-S02 Voltage Voltage: 200 V
Output KW Output KW: 7.5 kW Output HP Output HP: 10 Hp
Frame Size Frame Size: 215 Packaged Length Packaged Length: 22.00 IN
Weight Weight: 139.00 LB UPC UPC: 786674064257
Packaged Width Packaged Width: 15.25 IN HTC HTC: 8501.52.4000
Country of Origin Country of Origin: Mexico Packaged Height Packaged Height: 13.38 IN

Efficiency

Information not available at the moment. Please check back later!

Superseded Part
