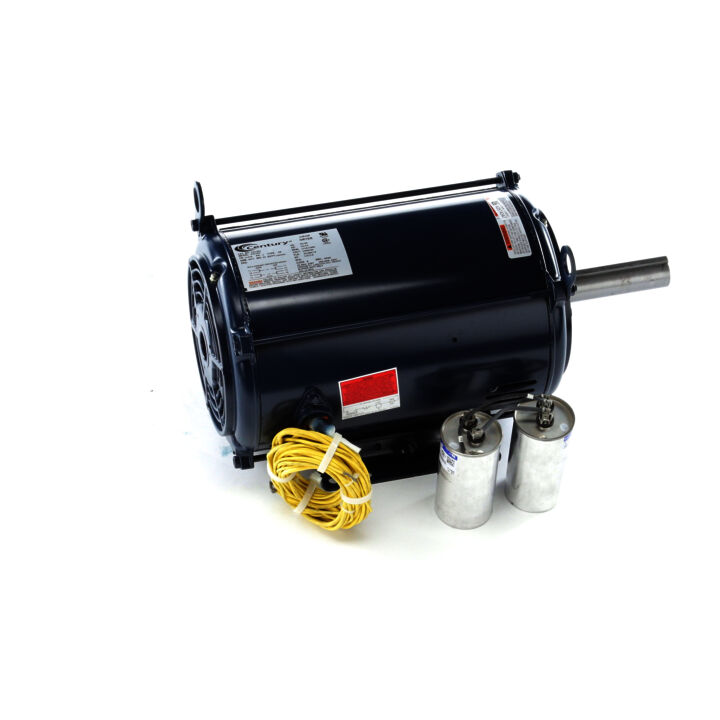

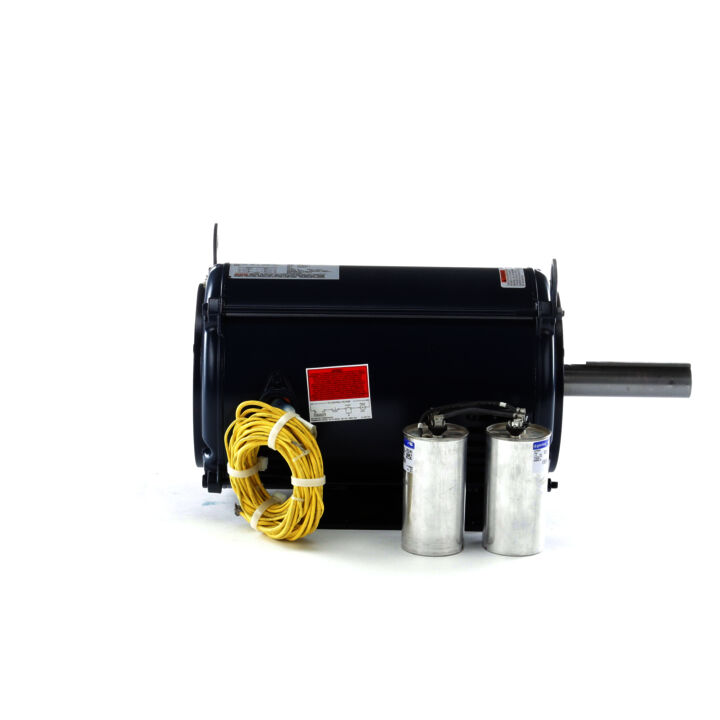

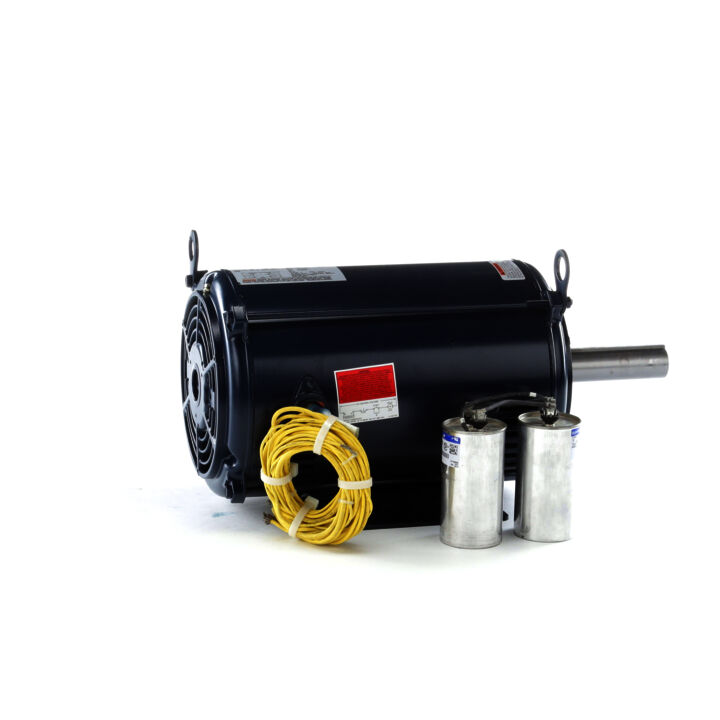

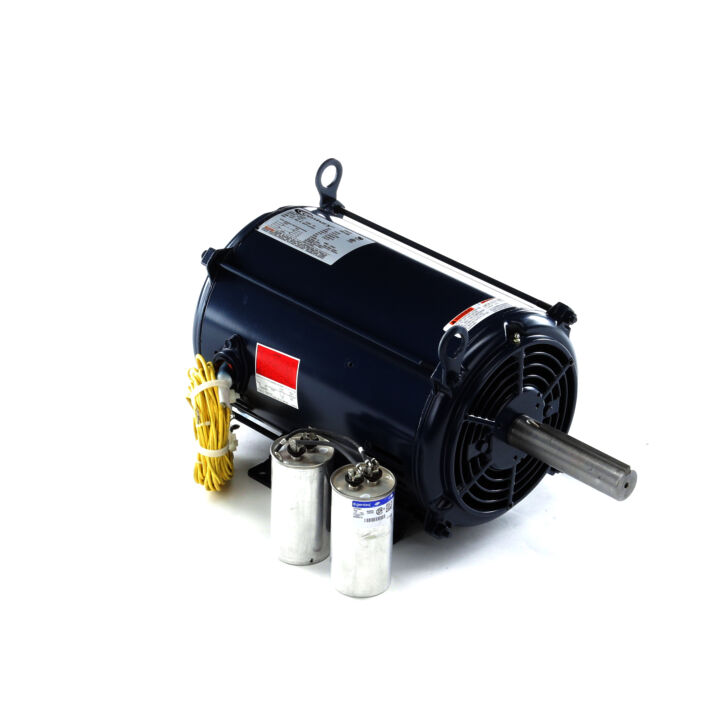

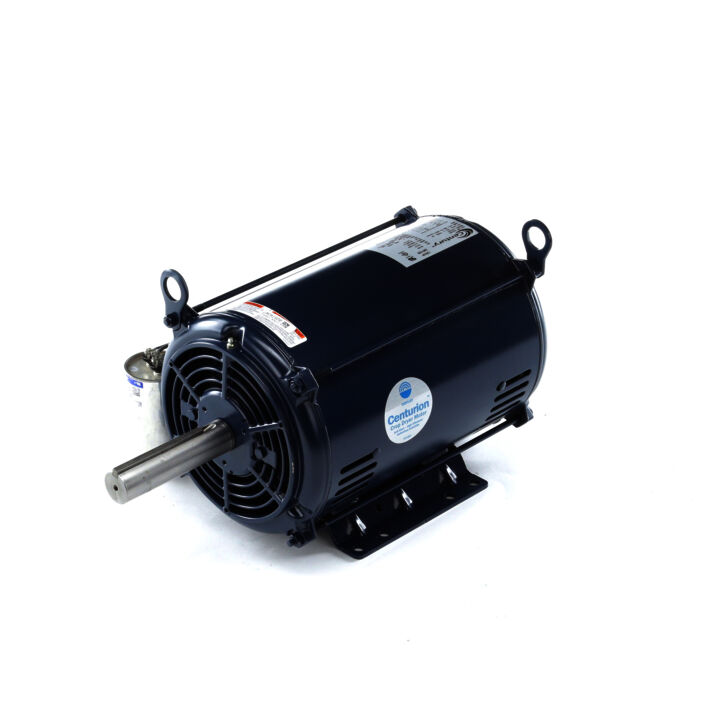

Crop Dryer Motor, 10 HP, 1 Ph, 60 Hz, 230 V, 1800 RPM, 215TZ Frame, ODP

Part#: K327M2

Catalog#: K327M2

Weight: 147 lb

location_on Where to Buy

Key Features

  • Double sealed ball bearings
  • Thermostats for thermal overload protection (auto reset protector on Z304)
  • 34” long leads for ease of installation
  • Keyed shafts with 1/4”-20 UNC tapped hole in end

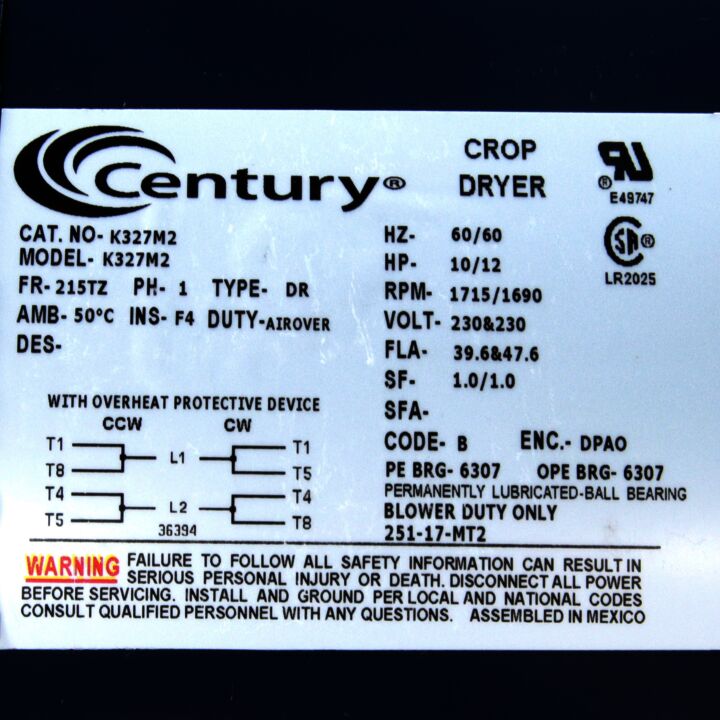

  • Extra nameplate included, loose, for remote mounting

Specifications

Phase Phase: 1 Output HP Output HP: 10 Hp
Output KW Output KW: 7.5 kW Voltage Voltage: 230 V
Speed Speed: 1715 rpm Service Factor Service Factor: 1
Frame Frame: 215TZ Enclosure Enclosure: Open Drip Proof
Thermal Protection Thermal Protection: No Protection Ambient Temperature Ambient Temperature: 50 °C
Frequency Frequency: 60 Hz Current Current: 39 A
Duty Duty: Continuous Air Over Insulation Class Insulation Class: F
UL UL: Recognized CSA CSA: Y
CE CE: N Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: DC Permanent Magnet Starting Method Starting Method: Across The Line
Poles Poles: 4 Rotation Rotation: Selective Counterclockwise
Mounting Mounting: Rigid Base Drive End Bearing Drive End Bearing: Ball
Opp Drive End Bearing Opp Drive End Bearing: Ball Frame Material Frame Material: Rolled Steel
Shaft Type Shaft Type: Keyed Overall Length Overall Length: 21.32 in
Frame Length Frame Length: 12.40 in Shaft Diameter Shaft Diameter: 1.375 in
Shaft Extension Shaft Extension: 5.5 in
Service Factor Service Factor: 1 Frame Suffix Frame Suffix: TZ
Synchronous RPM Synchronous RPM: 1800 rpm Frequency Frequency: 60 Hz
Speed Speed: 1715 rpm Connection Drawing Connection Drawing: D0000445-001
Outline Drawing Outline Drawing: K327M2-S01 Voltage Voltage: 230 V
Output KW Output KW: 7.5 kW Output HP Output HP: 10 Hp
Frame Size Frame Size: 215 Packaged Length Packaged Length: 22.19 IN
Weight Weight: 147.00 LB UPC UPC: 786674069184
Packaged Width Packaged Width: 16.50 IN HTC HTC: 8501.40.6040
Country of Origin Country of Origin: Mexico Packaged Height Packaged Height: 14.00 IN

Efficiency

Information not available at the moment. Please check back later!
