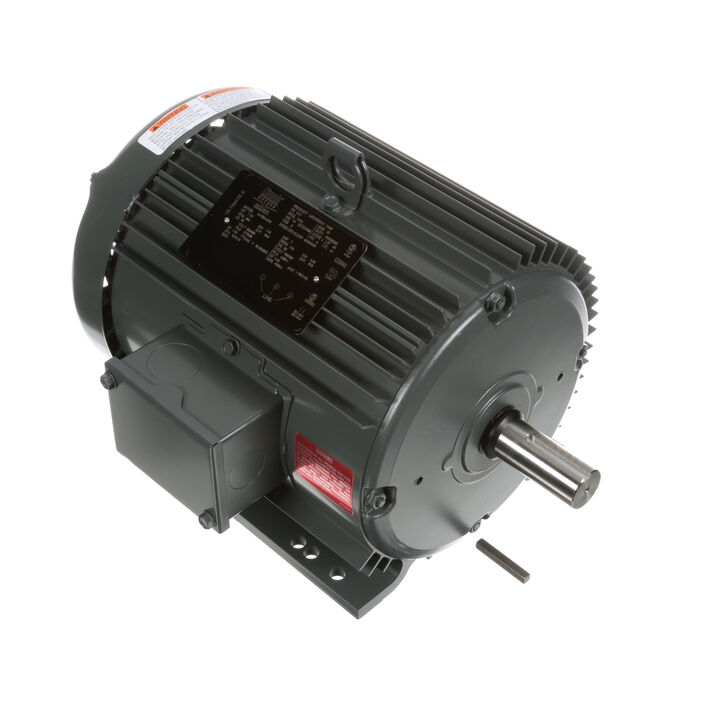

General Purpose Motor, 1.50 & 1 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 900 & 750 RPM, 184T Frame, TEFC
General Purpose Motor, 1.50 & 1 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 900 & 750 RPM, 184T Frame, TEFC
Part#: LM33562
Catalog#: LM33562
Model#: AAF8B1.5T61
Weight: 85 lb
List Price: $1,549.00
Your Price: Login is Required
Key Features
- Premium efficient ratings; Inverter-rated
- Class B insulation systems – 42, 48 and 56 frames
- Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
- Continuous duty; Dynamically balanced rotors
- Torques exceed NEMA performance standards; UL recognized and CSA certified
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 1.50 & 1 Hp |
| Output KW | Output KW: 1.1 & 0.75 kW | Voltage | Voltage: 230/460 & 190/380 V |
| Speed | Speed: 853 & 710 rpm | Service Factor | Service Factor: 1.15 & 1.15 |
| Frame | Frame: 184T | Enclosure | Enclosure: Totally Enclosed Fan Cooled |
| Thermal Protection | Thermal Protection: No Protection | Efficiency | Efficiency: 78.9 & 76.5 % |
| Ambient Temperature | Ambient Temperature: 40 °C | Frequency | Frequency: 60 & 50 Hz |
| Current | Current: 5.7/2.85 & 4.2/2.1 A | Power Factor | Power Factor: 62.7 |
| Duty | Duty: Continuous | Insulation Class | Insulation Class: F |
| Design Code | Design Code: B | KVA Code | KVA Code: L |
| Drive End Bearing Size | Drive End Bearing Size: 6206 | Opp Drive End Bearing Size | Opp Drive End Bearing Size: 6205 |
| UL | UL: Recognized | CSA | CSA: Y |
| CE | CE: Y | IP Code | IP Code: 43 |
| Number of Speeds | Number of Speeds: 1 |
| Electrical Type | Electrical Type: Squirrel Cage Induction Run | Starting Method | Starting Method: Across The Line |
| Poles | Poles: 8 | Rotation | Rotation: Reversible |
| Resistance Main | Resistance Main: 0 Ohms | Mounting | Mounting: Rigid Base |
| Motor Orientation | Motor Orientation: Horizontal | Drive End Bearing | Drive End Bearing: Ball |
| Opp Drive End Bearing | Opp Drive End Bearing: Ball | Frame Material | Frame Material: Aluminum |
| Shaft Type | Shaft Type: T | Overall Length | Overall Length: 14.96 in |
| Frame Length | Frame Length: 9.50 in | Shaft Diameter | Shaft Diameter: 1.125 in |
| Shaft Extension | Shaft Extension: 2.75 in | Assembly/Box Mounting | Assembly/Box Mounting: F1/F2 CAPABLE |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: T |
| Current | Current: 5.7/2.9 A | Synchronous RPM | Synchronous RPM: 900 & 750 rpm |
| Frequency | Frequency: 60 Hz | Speed | Speed: 853 rpm |
| Connection Drawing | Connection Drawing: 005010.01 | Outline Drawing | Outline Drawing: 036121LN-950 |
| Voltage | Voltage: 230/460 V | Output KW | Output KW: 1.1 kW |
| Output HP | Output HP: 1.50 Hp | Frame Size | Frame Size: 184 |
| Torque UOM | Torque UOM: LB-FT | Efficiency | Efficiency: 78.9 % |
| Packaged Length | Packaged Length: 22.19 IN | Weight | Weight: 85.00 LB |
| UPC | UPC: 691720043608 | Packaged Width | Packaged Width: 16.50 IN |
| Country of Origin | Country of Origin: Mexico | Packaged Height | Packaged Height: 14.00 IN |
| % of Rated Load | 0% | 25% | 50% | 75% | 100% | 115% |
|---|---|---|---|---|---|---|
| % of Rated Load: Current (Amps) | 0%: 1.86 | 25%: 1.94 | 50%: 2.14 | 75%: 2.44 | 100%: 2.84 | 115%: 3.14 |
| % of Rated Load: Rated Output (KW) | 0%: 0.16 | 25%: 0.42 | 50%: 0.73 | 75%: 1.06 | 100%: 1.42 | 115%: 1.65 |
| % of Rated Load: Efficiency (%) | 0%: 0.0 | 25%: 67.2 | 50%: 76.8 | 75%: 79.4 | 100%: 78.9 | 115%: 78.0 |
| % of Rated Load: Power Factor (%) | 0%: 11.0 | 25%: 27.0 | 50%: 42.7 | 75%: 54.6 | 100%: 62.7 | 115%: 66.2 |
| % of Rated Load: Speed (RPM) | 0%: 898 | 25%: 889 | 50%: 879 | 75%: 867 | 100%: 853 | 115%: 843 |
| % of Rated Load: Temp. Rise @ FL | 0%: 0.0 | 25%: 0.0 | 50%: 0.0 | 75%: 0.0 | 100%: 60.0 | 115%: 0.0 |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
|---|---|---|---|---|---|---|---|---|
| Curvepoint: Locked-Rotor | Current (Amps): 9.07 | Current (%): 394.0 | Torque (ft-lbs): 14.07 | Torque (%): 153.0 | Speed (RPM): 0 | Rated Output (KW): 4.13 | Power Factor (%): 45.8 | Rated Output (Hp): 1.50 |
| Curvepoint: Full Load | Current (Amps): 2.30 | Current (%): 100.0 | Torque (ft-lbs): 9.17 | Torque (%): 100.0 | Speed (RPM): 863 | Rated Output (KW): 1.40 | Power Factor (%): 61.0 | Rated Output (Hp): 1.50 |
| Curvepoint: Pull-Up | Current (Amps): 8.83 | Current (%): 384.0 | Torque (ft-lbs): 14.64 | Torque (%): 160.0 | Speed (RPM): 0 | Rated Output (KW): 4.19 | Power Factor (%): 47.6 | Rated Output (Hp): 1.50 |
| Curvepoint: Break-Down | Current (Amps): 6.23 | Current (%): 271.0 | Torque (ft-lbs): 21.10 | Torque (%): 230.0 | Speed (RPM): 685 | Rated Output (KW): 4.00 | Power Factor (%): 64.5 | Rated Output (Hp): 1.50 |
Efficiency
| Country | Complies with standards |
|---|---|
| Country: United States | Complies with standards: check_circle |
| Country: Canada | Complies with standards: check_circle |
| Country: Mexico | Complies with standards: check_circle |
| Country: Australia | Complies with standards: check_circle |
| Country: Brazil | Complies with standards: check_circle |
| Country: Chile | Complies with standards: check_circle |
| Country: China | Complies with standards: check_circle |
| Country: Europe | Complies with standards: check_circle |
| Country: Japan | Complies with standards: check_circle |
| Country: New Zealand | Complies with standards: check_circle |
| Country: Saudi Arabia | Complies with standards: check_circle |
| Country: South Korea | Complies with standards: check_circle |
