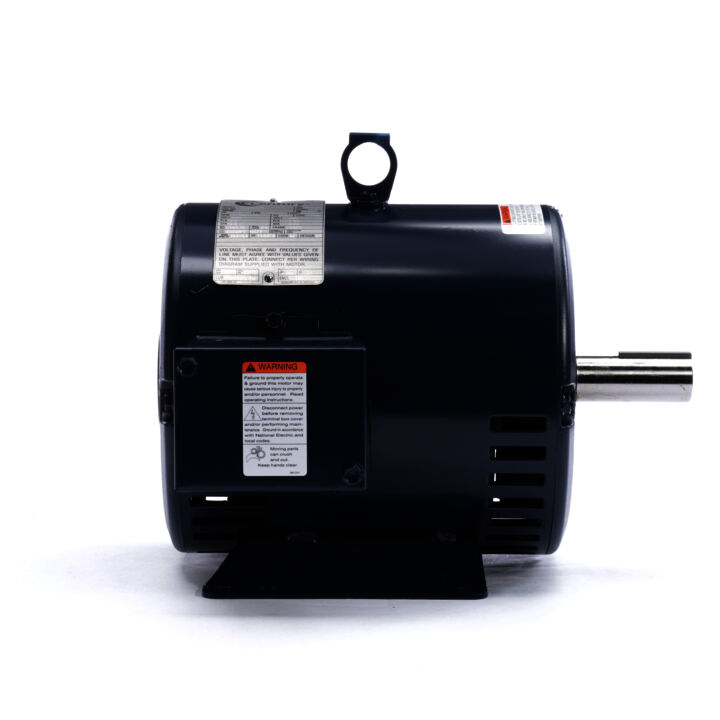

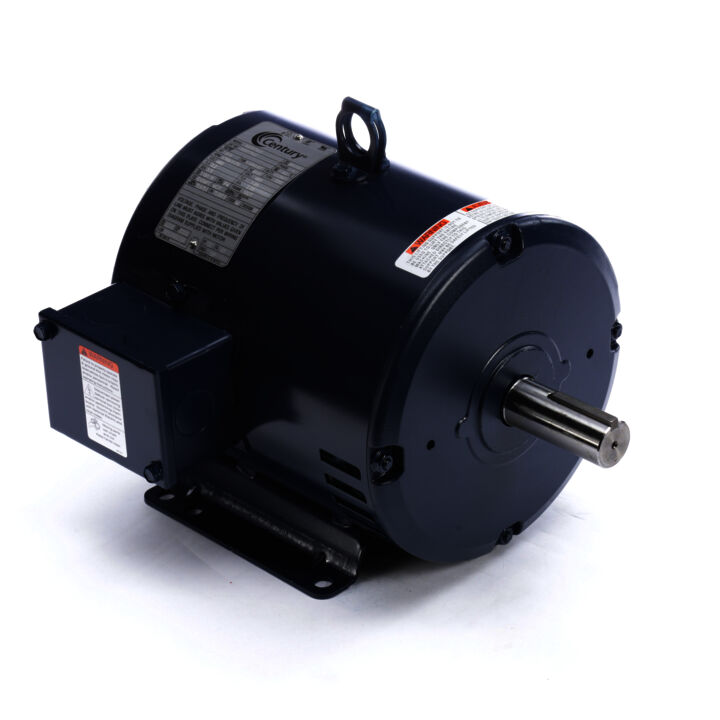

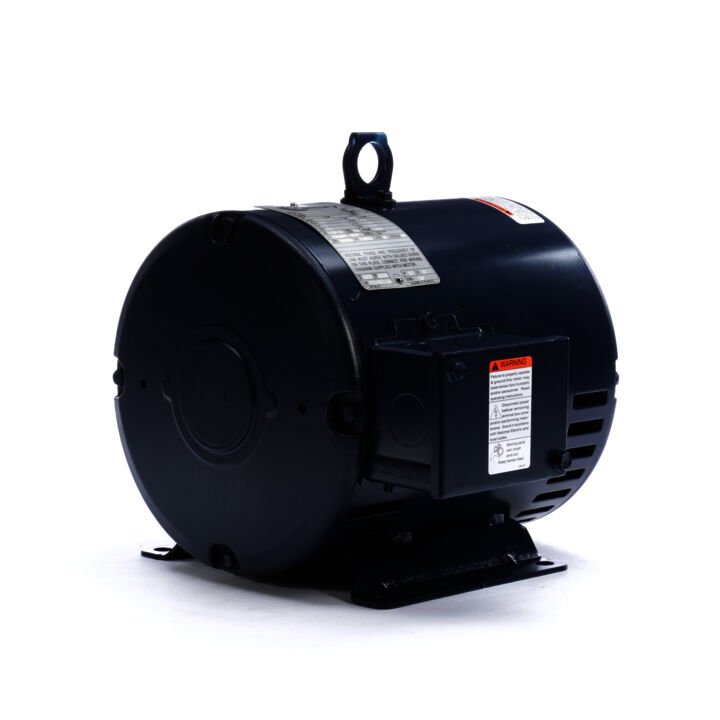

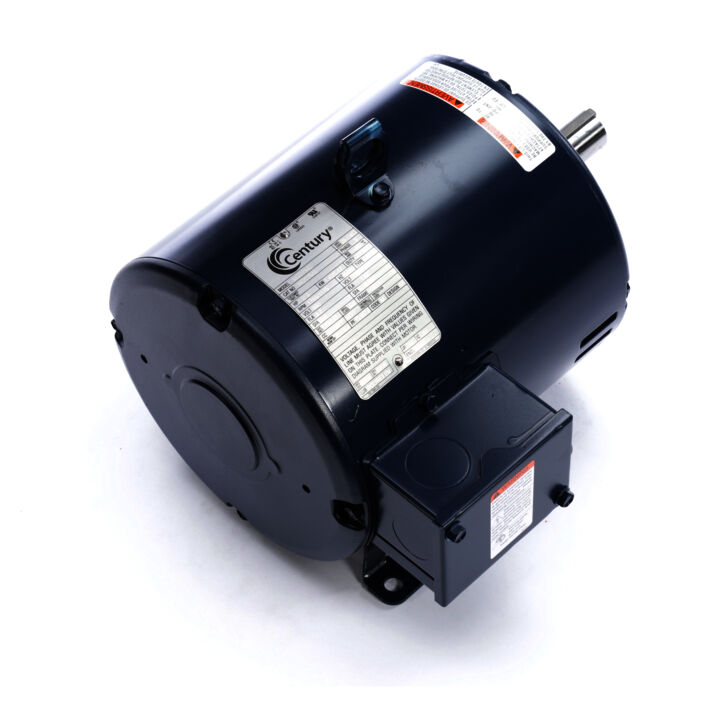

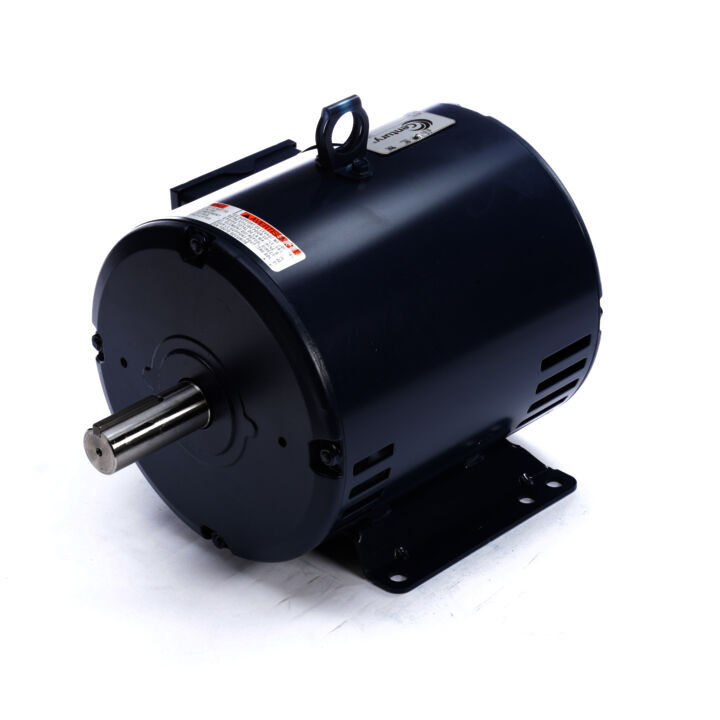

MODEL-IHP
MODEL-IHP
Part#: M207
Catalog#: M207
Weight: 60 lb
Your Price: Login is Required
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 2.0 .88 Hp |
| Voltage | Voltage: 460 V | Speed | Speed: 1760/1175 rpm |
| Service Factor | Service Factor: 1.15 | Frame | Frame: S182T |
| Enclosure | Enclosure: Drip Proof | Efficiency | Efficiency: 80 % |
| Ambient Temperature | Ambient Temperature: 40 °C | Frequency | Frequency: 60 Hz |
| Current | Current: 3.0/2.0 A | Duty | Duty: Continuous |
| Insulation Class | Insulation Class: B | UL | UL: Recognized |
| CSA | CSA: Y | Number of Speeds | Number of Speeds: 2-2-VT |
| Poles | Poles: 4/6 | Rotation | Rotation: Reversible |
| Mounting | Mounting: Rigid Base | Drive End Bearing | Drive End Bearing: 206 |
| Opp Drive End Bearing | Opp Drive End Bearing: 204 | Frame Length | Frame Length: 7.75 in |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: T |
| Frequency | Frequency: 60 Hz | Speed | Speed: 1760 rpm |
| Voltage | Voltage: 460 V | Frame Size | Frame Size: 182 |
| Efficiency | Efficiency: 80 % | Frame Prefix | Frame Prefix: S |
| Weight | Weight: 60.00 LB | UPC | UPC: 786674067210 |
Efficiency
Information not available at the moment. Please check back later!
