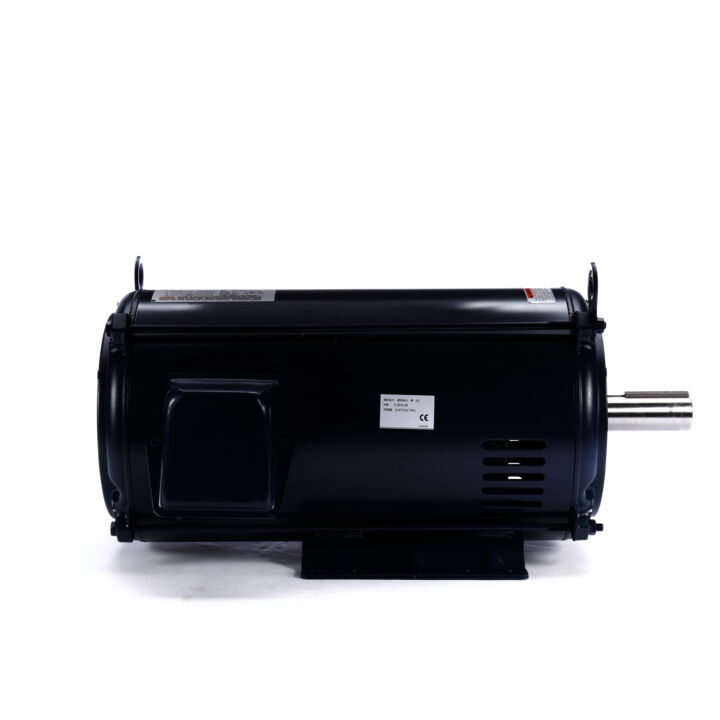

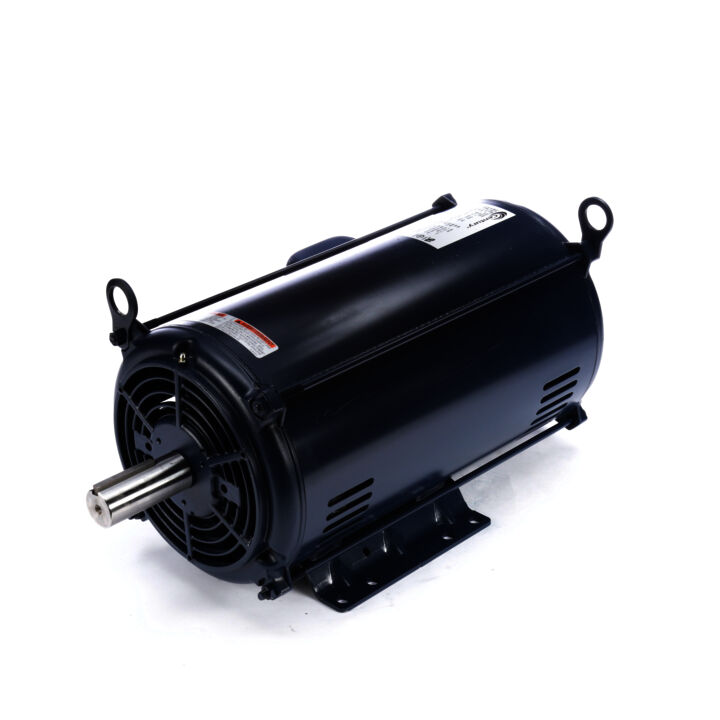

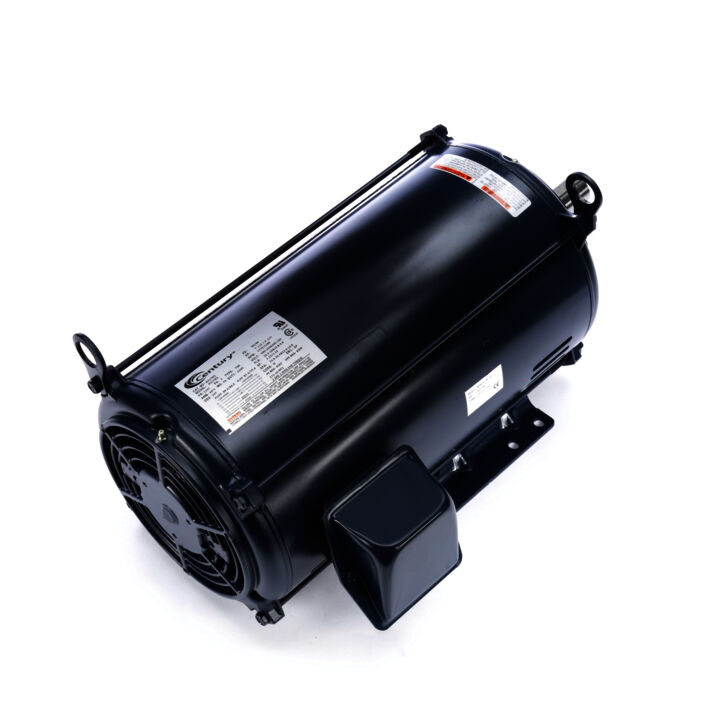

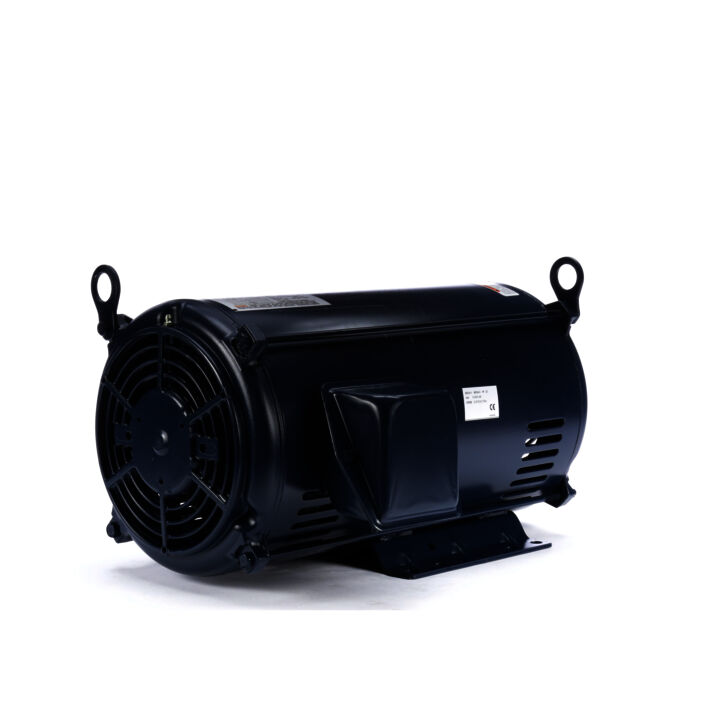

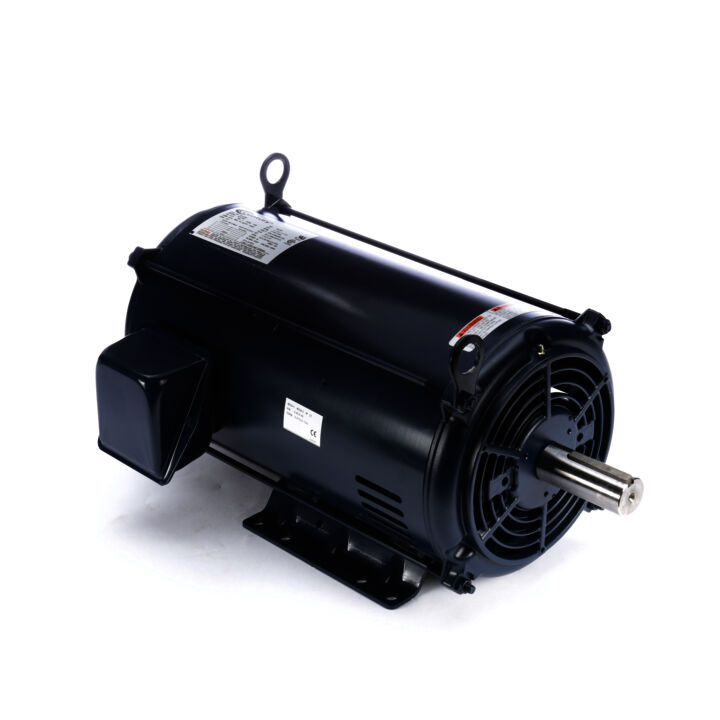

MODEL-IHP
MODEL-IHP
Part#: M317
Catalog#: M317
Weight: 160 lb
Your Price: Login is Required
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 7.5/3.3 Hp |
| Output KW | Output KW: 5.6 kW | Voltage | Voltage: 200-230 V |
| Speed | Speed: 1760/1170 rpm | Service Factor | Service Factor: 1.15 |
| Frame | Frame: Y215T | Enclosure | Enclosure: Drip Proof |
| Efficiency | Efficiency: 89 % | Ambient Temperature | Ambient Temperature: 40 °C |
| Frequency | Frequency: 60 Hz | Current | Current: 22-19.5/12.3-12.3 A |
| Duty | Duty: Continuous | Insulation Class | Insulation Class: F |
| UL | UL: Recognized | CSA | CSA: Y |
| Number of Speeds | Number of Speeds: 2-2-VT |
| Poles | Poles: 4/6 | Rotation | Rotation: Reversible |
| Mounting | Mounting: Rigid Base | Drive End Bearing | Drive End Bearing: 307 |
| Opp Drive End Bearing | Opp Drive End Bearing: 206 | Frame Length | Frame Length: 12.35 in |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: T |
| Frequency | Frequency: 60 Hz | Speed | Speed: 1760 rpm |
| Connection Drawing | Connection Drawing: 80022806.PCX | Voltage | Voltage: 200-230 V |
| Output KW | Output KW: 5.6 kW | Output HP | Output HP: 7.50 Hp |
| Frame Size | Frame Size: 215 | Efficiency | Efficiency: 89 % |
| Frame Prefix | Frame Prefix: Y | Weight | Weight: 160.00 LB |
| UPC | UPC: 786674026446 |
