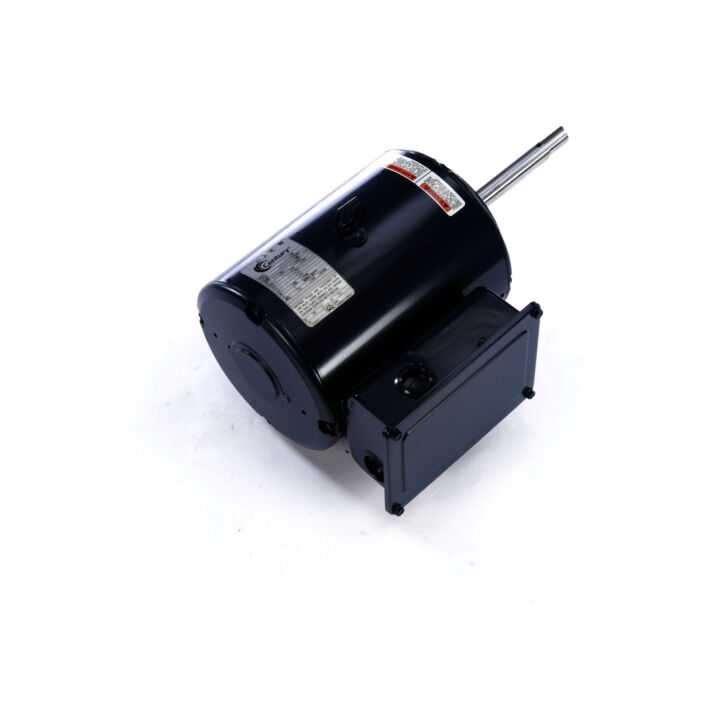

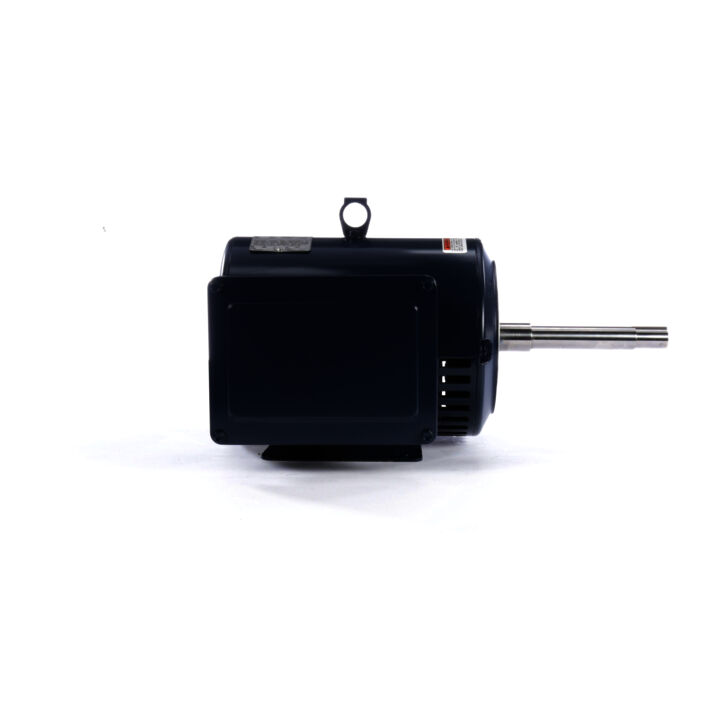

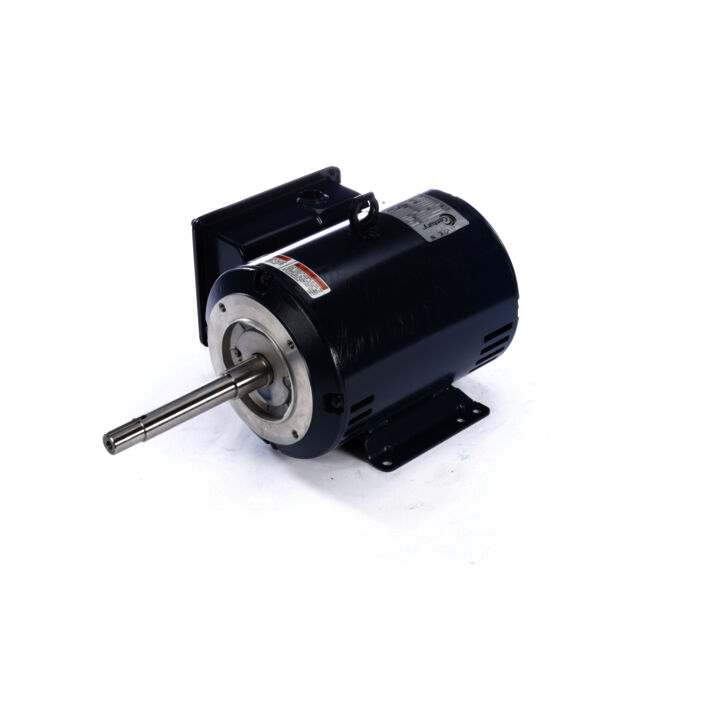

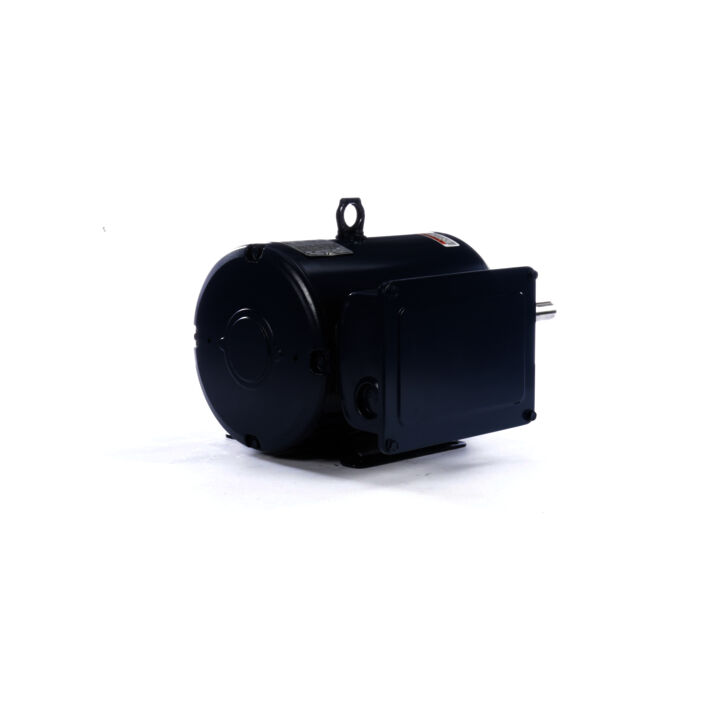

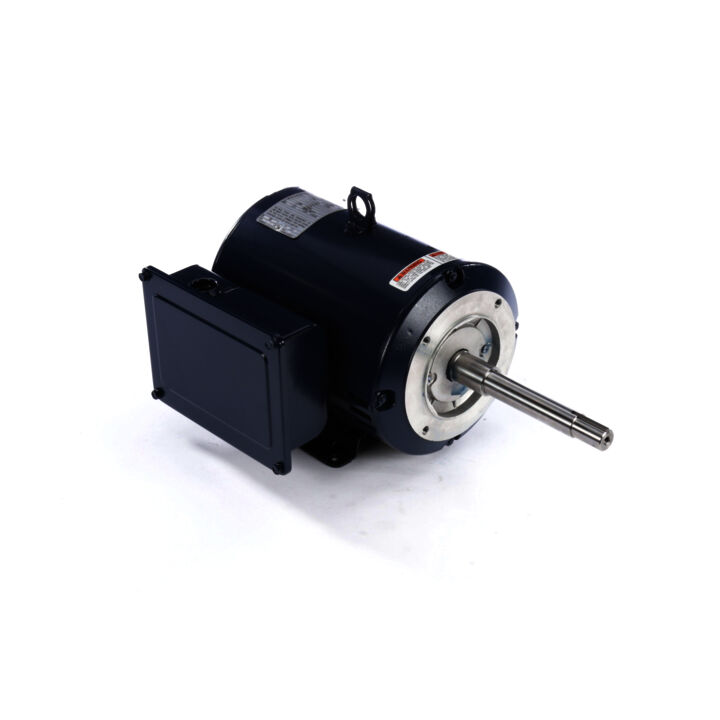

Close-Coupled Pump Motor, 2 HP, 1 Ph, 60 Hz, 230/115 V, 1800 RPM, 182JP Frame, ODP
Resource Center

Close-Coupled Pump Motor, 2 HP, 1 Ph, 60 Hz, 230/115 V, 1800 RPM, 182JP Frame, ODP

Part#: P232M2

Catalog#: P232M2

Weight: 74 lb

List Price: $1,423.00

location_on Where to Buy

Key Features

  • External slinger
  • Double sealed ball bearings

Specifications

Phase Phase: 1 Output HP Output HP: 2 Hp
Output KW Output KW: 1.5 kW Voltage Voltage: 230/115 V
Speed Speed: 1750 rpm Service Factor Service Factor: 1.15
Frame Frame: 182JP Enclosure Enclosure: Open Drip Proof
Thermal Protection Thermal Protection: No Protection Ambient Temperature Ambient Temperature: 40 °C
Frequency Frequency: 60 Hz Current Current: 11.5/23 A
Duty Duty: Continuous Insulation Class Insulation Class: F
UL UL: Recognized CSA CSA: Y
Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: Capacitor Start Starting Method Starting Method: Across The Line
Poles Poles: 4 Rotation Rotation: Counterclockwise
Mounting Mounting: Rigid Base Drive End Bearing Drive End Bearing: Ball
Opp Drive End Bearing Opp Drive End Bearing: Ball Frame Material Frame Material: Rolled Steel
Shaft Type Shaft Type: Keyed Overall Length Overall Length: 19.02 in
Frame Length Frame Length: 10 in Shaft Diameter Shaft Diameter: 1.250 in
Shaft Extension Shaft Extension: 7.31 in
Service Factor Service Factor: 1.15 Frame Suffix Frame Suffix: JP
Synchronous RPM Synchronous RPM: 1800 rpm Frequency Frequency: 60 Hz
Speed Speed: 1750 rpm Connection Drawing Connection Drawing: 005062.01CY
Outline Drawing Outline Drawing: 035891CY Voltage Voltage: 230/115 V
Output KW Output KW: 1.5 kW Output HP Output HP: 2 Hp
Frame Size Frame Size: 182 Packaged Length Packaged Length: 22.19 IN
Weight Weight: 74.00 LB UPC UPC: 786674067173
Packaged Width Packaged Width: 16.50 IN Country of Origin Country of Origin: Mexico
Packaged Height Packaged Height: 14.00 IN

Efficiency

Information not available at the moment. Please check back later!
