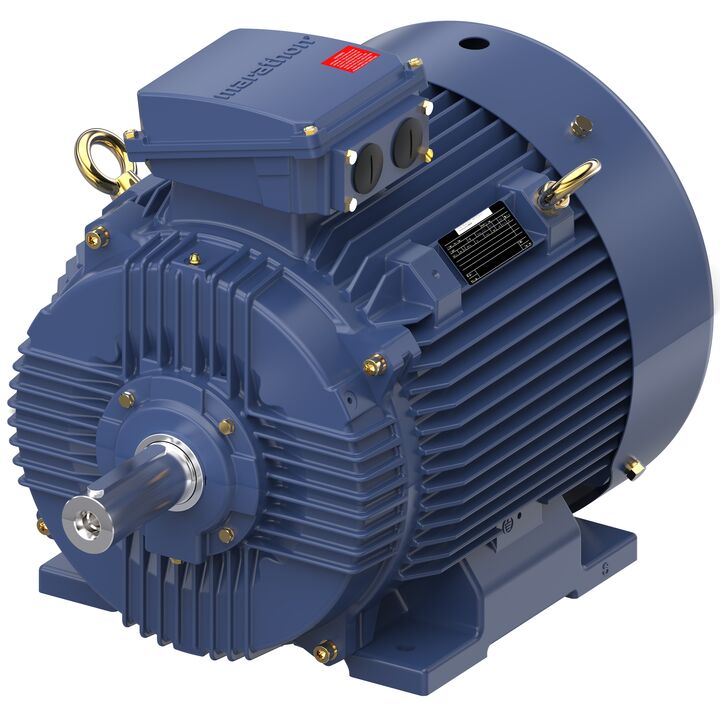

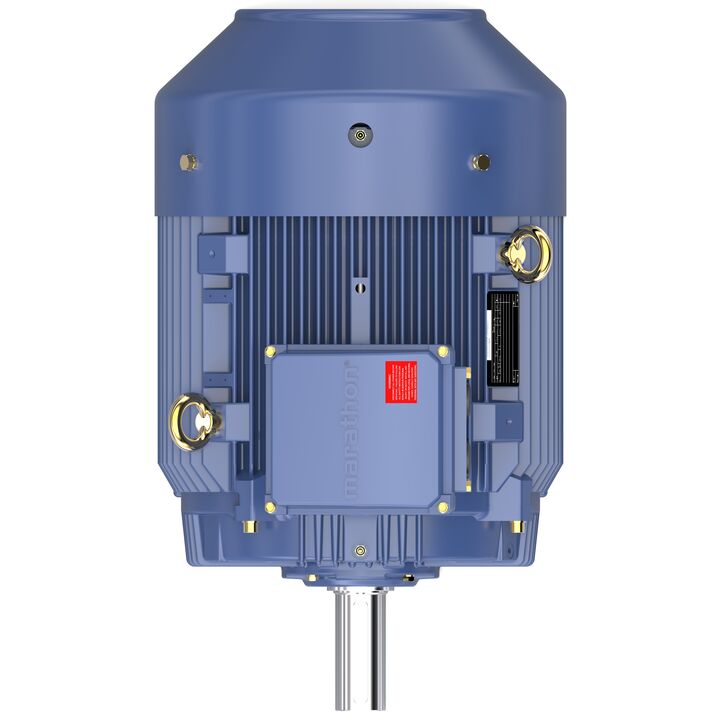

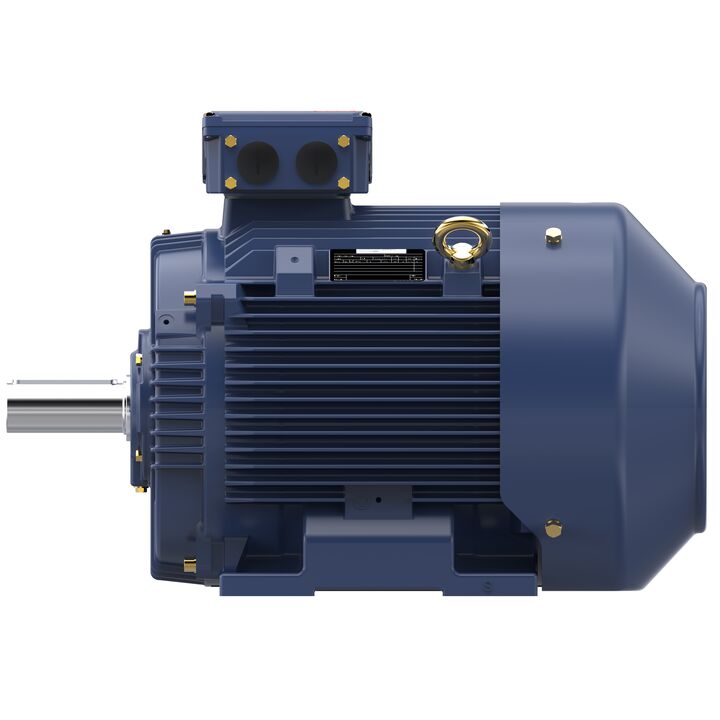

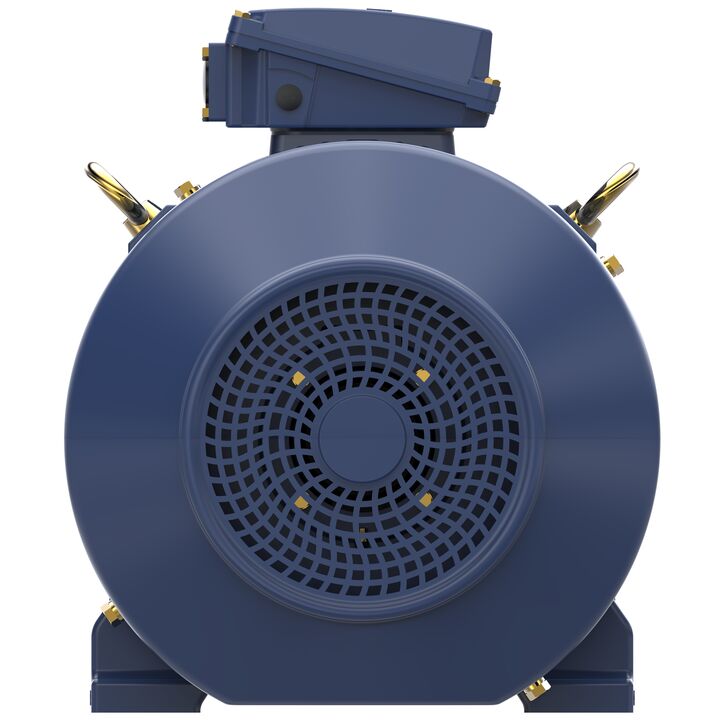

Increased Safety Motors Ex eb, Totally Enclosed Fan Cooled, 120 HP, 3 Ph, 50 Hz, 400 V, 2981 RPM, 280M Frame

Part#: TCE0901A2111GAA001

Catalog#: TCE0901A2111GAA001

Model#: TCE0901A2111GAA001

Weight: 1758.67 lb

location_on Where to Buy

Key Features

  • Conforms to IEC 60034, IEC/EN 60079-0, IEC/EN 60079-7
  • Class F with class B temperature rise
  • Bi-directional fan
  • Ambient 40°C (Higher ambient on request)
  • All standard mountings B3, B5, B35, V1 (B14 and B34 for IEC 80-132)
  • Protection IP55 (Standard) & IP66 (Optional)
  • Cast iron with special captive screws and metric cable entry for Terminal Box

Specifications

Phase Phase: 3 Output HP Output HP: 120 Hp
Output KW Output KW: 90 kW Voltage Voltage: 400 V
Speed Speed: 2981 rpm Service Factor Service Factor: 1
Frame Frame: 280M Enclosure Enclosure: Totally Enclosed Fan Cooled
Thermal Protection Thermal Protection: No Protection Efficiency Efficiency: 95 %
Ambient Temperature Ambient Temperature: 40 °C Frequency Frequency: 50 Hz
Current Current: 153.1 A Power Factor Power Factor: 0.89
Duty Duty: S1 Insulation Class Insulation Class: F
Drive End Bearing Size Drive End Bearing Size: 6314 Opp Drive End Bearing Size Opp Drive End Bearing Size: 6314
UL UL: No CSA CSA: No
CE CE: Yes IP Code IP Code: IP55
Number of Speeds Number of Speeds: 3
Electrical Type Electrical Type: Squirrel Cage Starting Method Starting Method: Direct On Line
Poles Poles: 2 Rotation Rotation: Bi-Directional
Mounting Mounting: B3 Motor Orientation Motor Orientation: Horizontal
Drive End Bearing Drive End Bearing: 2z-C3 Opp Drive End Bearing Opp Drive End Bearing: 2z-C3
Frame Material Frame Material: Cast Iron Shaft Type Shaft Type: Keyed
Overall Length Overall Length: 1111 mm Frame Length Frame Length: 600 mm
Shaft Diameter Shaft Diameter: 65 mm Shaft Extension Shaft Extension: 140 mm
Assembly/Box Mounting Assembly/Box Mounting: Top
Service Factor Service Factor: 1 Frame Suffix Frame Suffix: M
Current Current: 153.1 A Frequency Frequency: 50 Hz
Speed Speed: 2981 rpm Connection Drawing Connection Drawing: 8442000085
Outline Drawing Outline Drawing: 0228000585 Voltage Voltage: 400 V
Output KW Output KW: 90 kW Output HP Output HP: 120 Hp
Frame Size Frame Size: 280 Efficiency Efficiency: 95 %
Packaged Length Packaged Length: 1170.00 MM Weight Weight: 797.72 KG
UPC UPC: 691720113387 Packaged Width Packaged Width: 650.00 MM
Country of Origin Country of Origin: China Packaged Height Packaged Height: 760.00 MM
