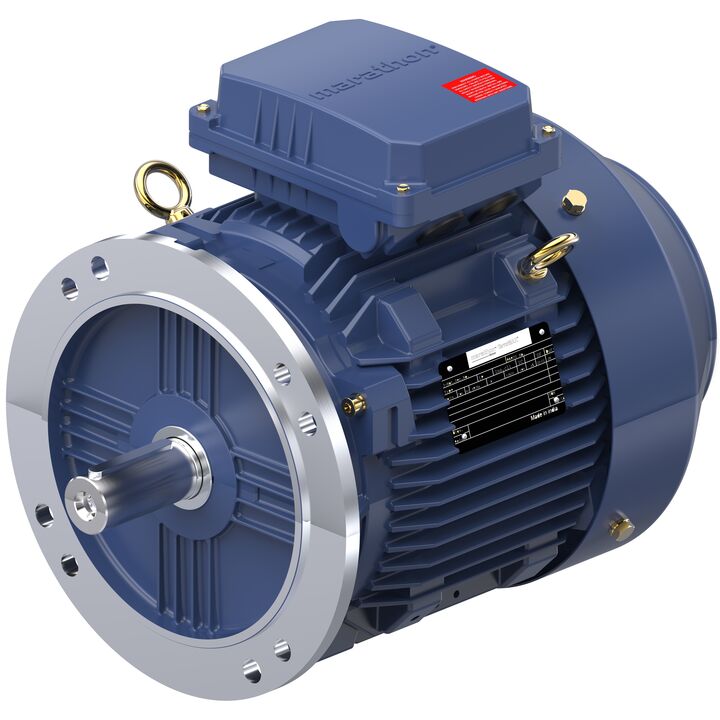

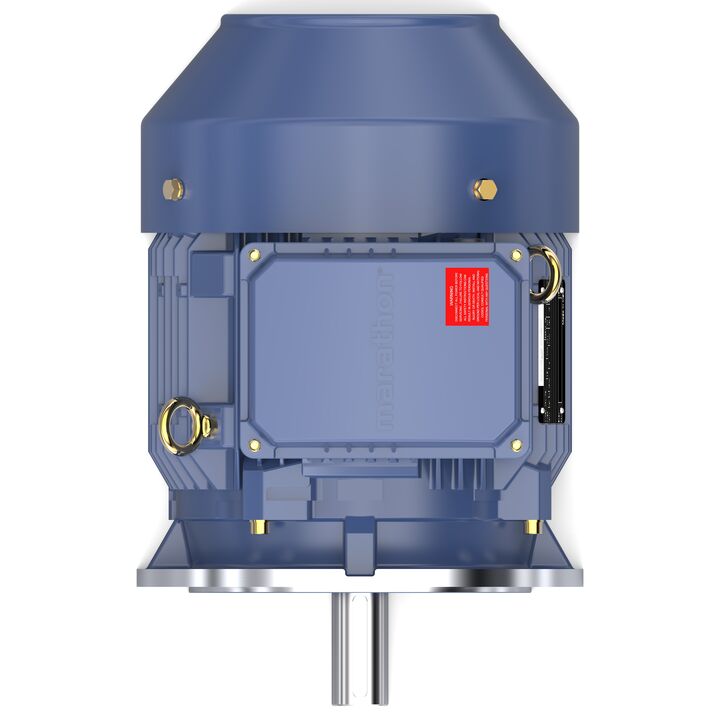

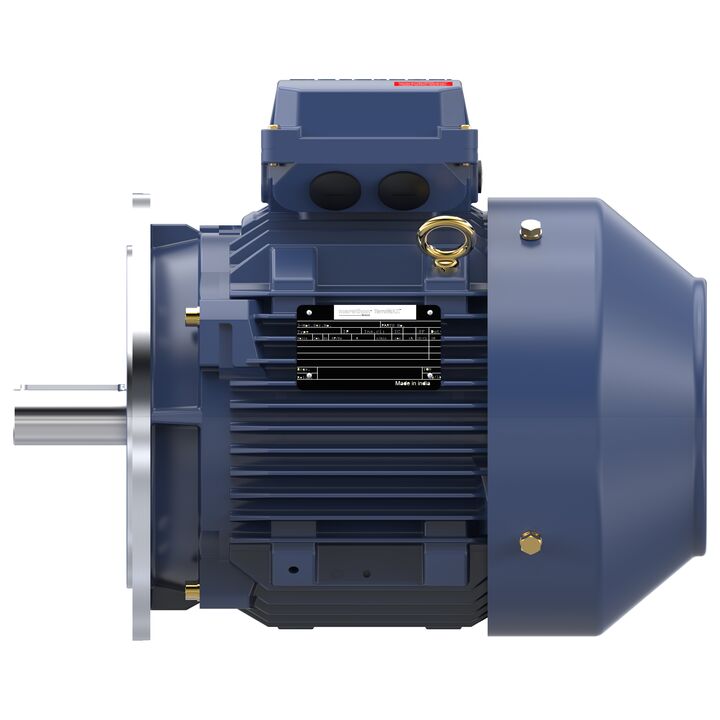

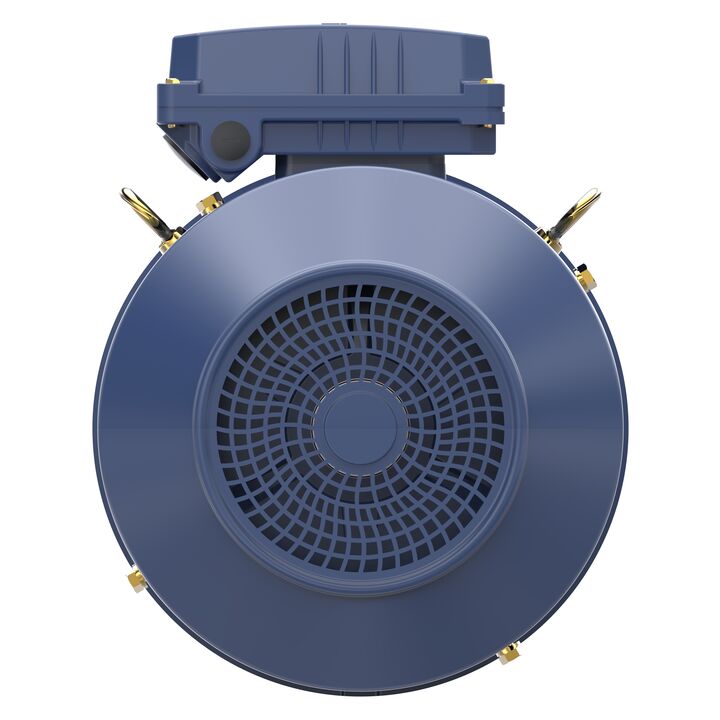

Increased Safety Motors Ex eb, Totally Enclosed Fan Cooled, 10 HP, 3 Ph, 50 Hz, 400 V, 2938 RPM, 132S Frame
Resource Center

Increased Safety Motors Ex eb, Totally Enclosed Fan Cooled, 10 HP, 3 Ph, 50 Hz, 400 V, 2938 RPM, 132S Frame

Part#: TCE7P51A2121GAA001

Catalog#: TCE7P51A2121GAA001

Model#: TCE7P51A2121GAA001

Weight: 184.17 lb

location_on Where to Buy

Key Features

  • Conforms to IEC 60034, IEC/EN 60079-0, IEC/EN 60079-7
  • Class F with class B temperature rise
  • Bi-directional fan
  • Ambient 40°C (Higher ambient on request)
  • All standard mountings B3, B5, B35, V1 (B14 and B34 for IEC 80-132)
  • Protection IP55 (Standard) & IP66 (Optional)
  • Cast iron with special captive screws and metric cable entry for Terminal Box

Specifications

Phase Phase: 3 Output HP Output HP: 10 Hp
Output KW Output KW: 7.5 kW Voltage Voltage: 400 V
Speed Speed: 2938 rpm Service Factor Service Factor: 1
Frame Frame: 132S Enclosure Enclosure: Totally Enclosed Fan Cooled
Thermal Protection Thermal Protection: No Protection Efficiency Efficiency: 90.1 %
Ambient Temperature Ambient Temperature: 40 °C Frequency Frequency: 50 Hz
Current Current: 13.6 A Power Factor Power Factor: 0.88
Duty Duty: S1 Insulation Class Insulation Class: F
Drive End Bearing Size Drive End Bearing Size: 6308 Opp Drive End Bearing Size Opp Drive End Bearing Size: 6208
UL UL: No CSA CSA: No
CE CE: Yes IP Code IP Code: IP55
Number of Speeds Number of Speeds: 3
Electrical Type Electrical Type: Squirrel Cage Starting Method Starting Method: Direct On Line
Poles Poles: 2 Rotation Rotation: Bi-Directional
Mounting Mounting: B5 Motor Orientation Motor Orientation: Horizontal
Drive End Bearing Drive End Bearing: 2z-C3 Opp Drive End Bearing Opp Drive End Bearing: 2z-C3
Frame Material Frame Material: Cast Iron Shaft Type Shaft Type: Keyed
Overall Length Overall Length: 465 mm Frame Length Frame Length: 202 mm
Shaft Diameter Shaft Diameter: 38 mm Shaft Extension Shaft Extension: 80 mm
Assembly/Box Mounting Assembly/Box Mounting: Top
Service Factor Service Factor: 1 Frame Suffix Frame Suffix: S
Current Current: 13.6 A Frequency Frequency: 50 Hz
Speed Speed: 2938 rpm Connection Drawing Connection Drawing: 8442000085
Outline Drawing Outline Drawing: 0213200675 Voltage Voltage: 400 V
Output KW Output KW: 7.5 kW Output HP Output HP: 10 Hp
Frame Size Frame Size: 132 Efficiency Efficiency: 90.1 %
Packaged Length Packaged Length: 510.00 MM Weight Weight: 83.54 KG
UPC UPC: 691720114155 Packaged Width Packaged Width: 350.00 MM
Country of Origin Country of Origin: China Packaged Height Packaged Height: 420.00 MM
