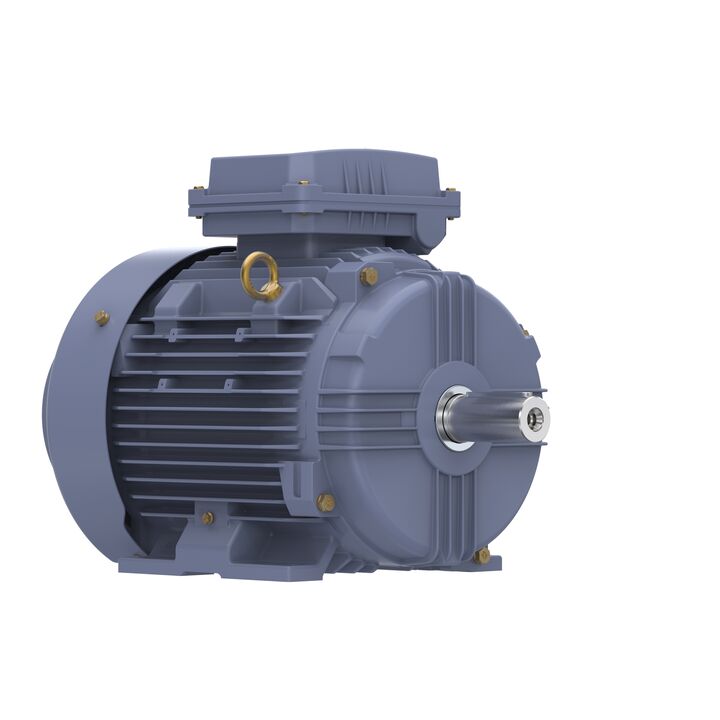

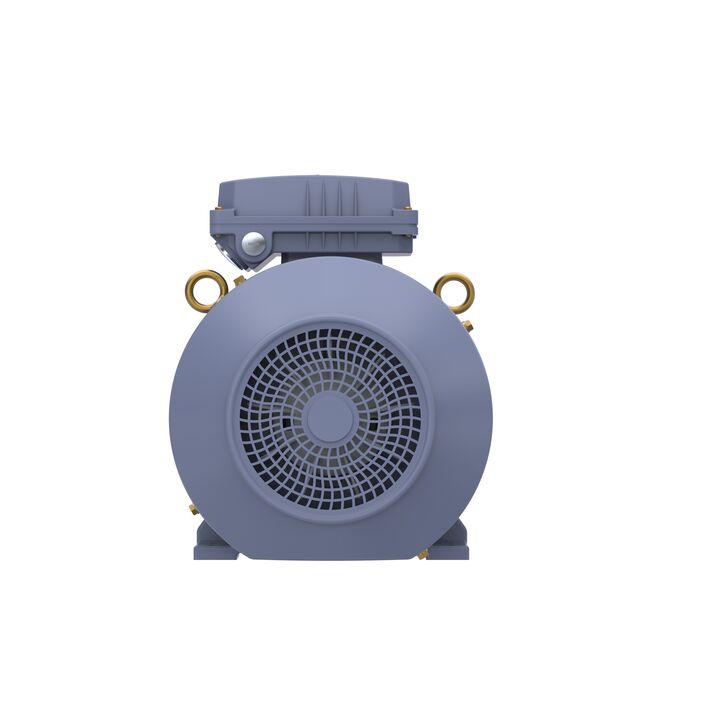

Cast Iron Motor, 10 HP, 3 Ph, 50 Hz, 400 V, 1500 RPM, 132M Frame, TEFC
Resource Center

Cast Iron Motor, 10 HP, 3 Ph, 50 Hz, 400 V, 1500 RPM, 132M Frame, TEFC

Part#: TCN7P52A1111GAC010

Catalog#: TCN7P52A1111GAC010

Model#: TCN7P52A1111GAC010

Weight: 205.03 lb

location_on Where to Buy

Key Features

  • Confirms to IEC 60079-0/ IEC 60079-15/ EN 60079-0/ EN 60079-47
  • Class F insulation and Class B rise
  • Bi-directional fan
  • Ambient 40°C
  • Suitable for Zone 2 & Gas group- IIC
  • B3(Special mounting on request)
  • Protection IP55
  • Captive screws for Terminal Box cover
  • Temprature Class T3
  • Certified to ATEX / IEC Ex

Specifications

Phase Phase: 3 Output HP Output HP: 10 Hp
Output KW Output KW: 7.5 kW Voltage Voltage: 400 V
Speed Speed: 1470 rpm Service Factor Service Factor: 1
Frame Frame: 132M Thermal Protection Thermal Protection: No Protection
Efficiency Efficiency: 90.4 % Ambient Temperature Ambient Temperature: 40 °C
Frequency Frequency: 50 Hz Current Current: 14.4 A
Power Factor Power Factor: 0.83 Duty Duty: S1
Insulation Class Insulation Class: F Drive End Bearing Size Drive End Bearing Size: 6308
Opp Drive End Bearing Size Opp Drive End Bearing Size: 6208 Enclosure Enclosure: Totally Enclosed Fan Cooled
UL UL: No CSA CSA: No
CE CE: Yes IP Code IP Code: 55
Number of Speeds Number of Speeds: 1 Efficiency Class Efficiency Class: IE3
Electrical Type Electrical Type: Squirrel Cage Starting Method Starting Method: Direct On Line
Poles Poles: 4 Rotation Rotation: Bi-Directional
Mounting Mounting: B3 Motor Orientation Motor Orientation: Horizontal
Drive End Bearing Drive End Bearing: 2z-C3 Opp Drive End Bearing Opp Drive End Bearing: 2z-C3
Frame Material Frame Material: Cast Iron Shaft Type Shaft Type: Keyed
Overall Length Overall Length: 503 mm Frame Length Frame Length: 240 mm
Shaft Diameter Shaft Diameter: 38 mm Shaft Extension Shaft Extension: 80 mm
Assembly/Box Mounting Assembly/Box Mounting: Top
Output HP Output HP: 10 Hp Output KW Output KW: 7.5 kW
Frame Size Frame Size: 132 Frame Suffix Frame Suffix: M
Frequency Frequency: 50 Hz Voltage Voltage: 400 V
Current Current: 14.4 A Efficiency Efficiency: 90.4 %
Service Factor Service Factor: 1 Speed Speed: 1470 rpm
Connection Drawing Connection Drawing: 8442000085 Outline Drawing Outline Drawing: 0213200587
Packaged Length Packaged Length: 550.00 MM Weight Weight: 93.00 KG
UPC UPC: 722856134387 Packaged Width Packaged Width: 330.00 MM
Country of Origin Country of Origin: China Packaged Height Packaged Height: 445.00 MM
