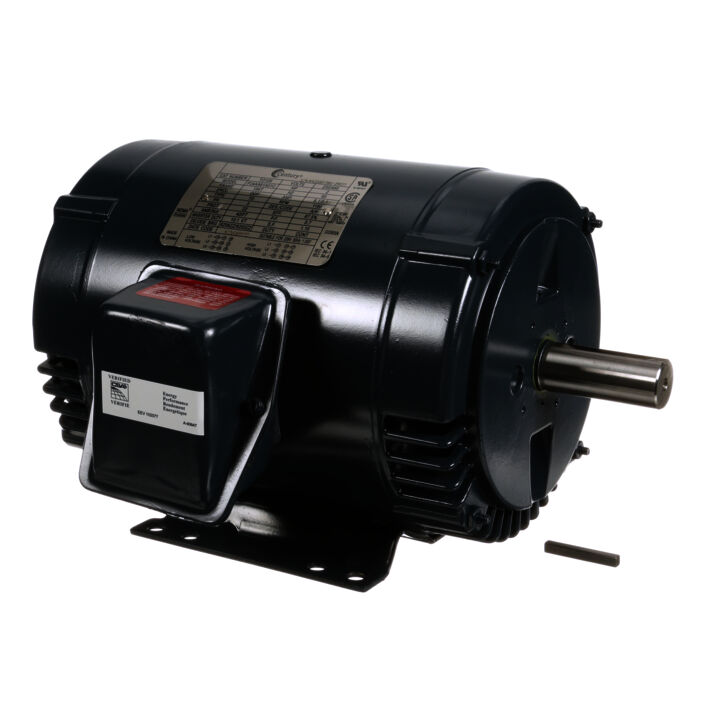

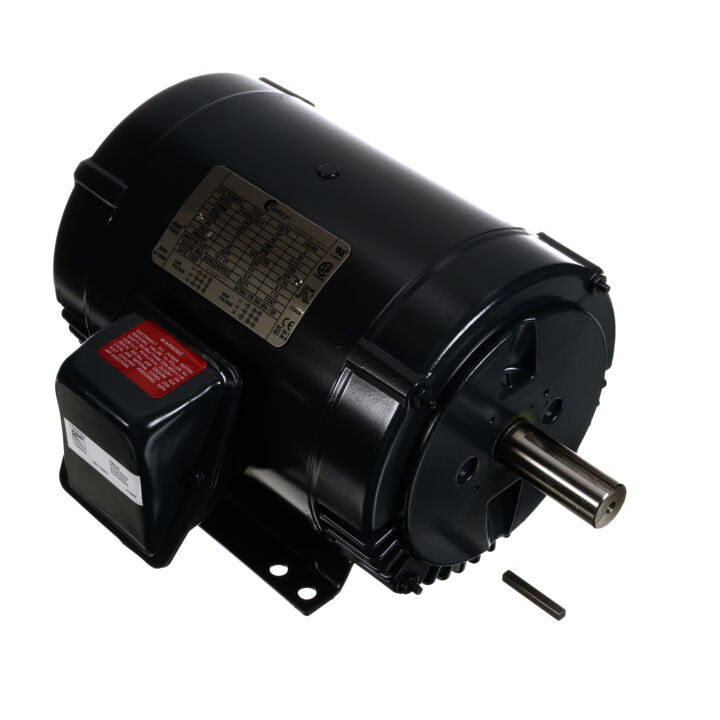

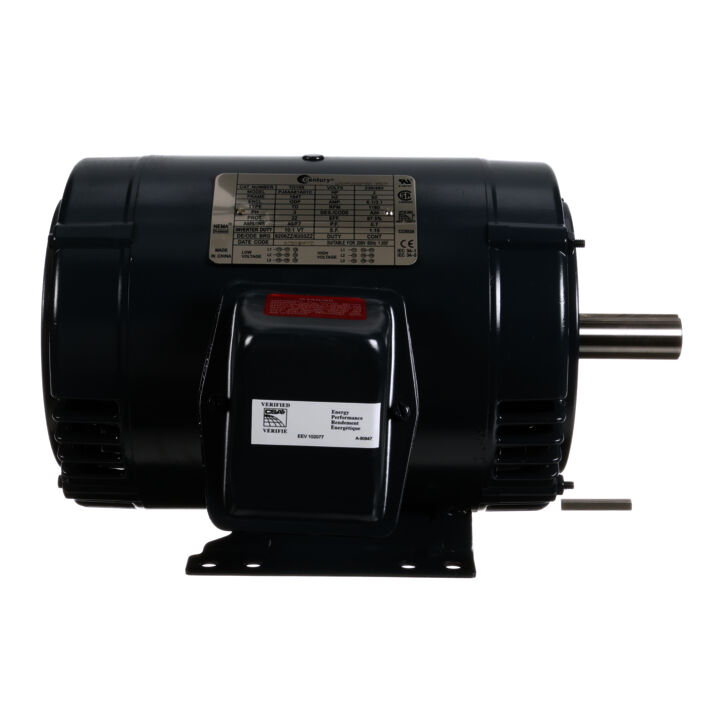

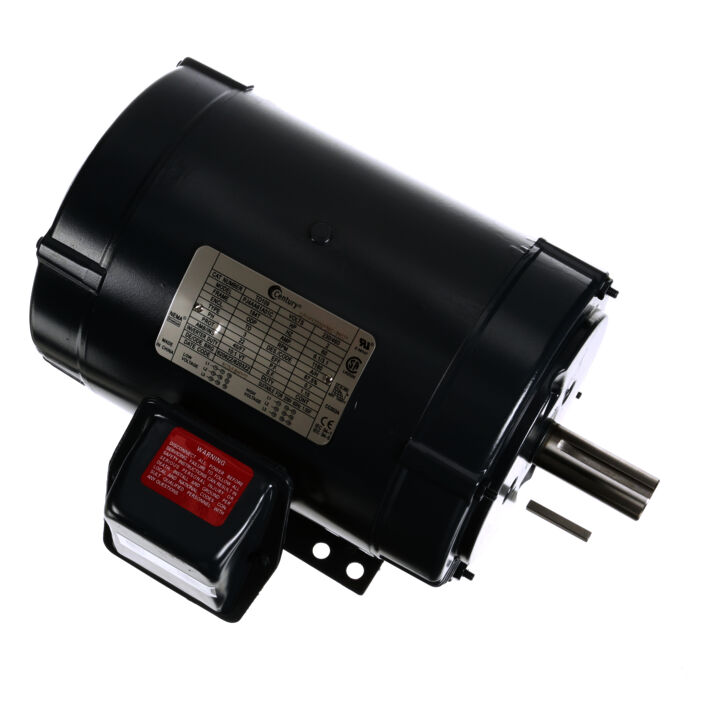

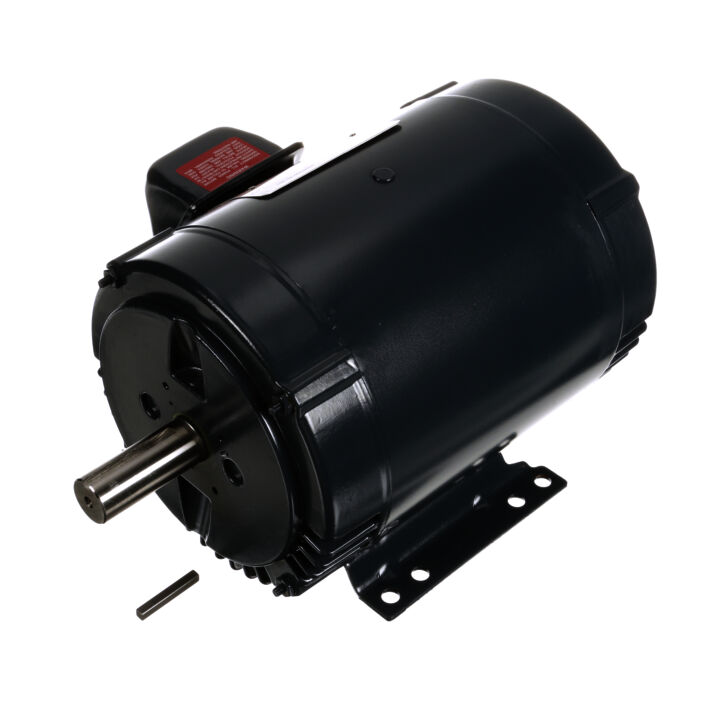

General Purpose Motor, 2 HP, 3 Ph, 60 Hz, 208-230/460 V, 1200 RPM, 184T Frame, DP
Resource Center

General Purpose Motor, 2 HP, 3 Ph, 60 Hz, 208-230/460 V, 1200 RPM, 184T Frame, DP

Part#: TO109

Catalog#: TO109

Weight: 82 lb

location_on Where to Buy

Key Features

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2017
  • Inverter duty 10:1 variable torque and 2:1 constant torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Standard assembly F1, reversible to F2 assembly
  • Dual frame mounting holes
  • Will become build-up item when current stock is gone

Specifications

Phase Phase: 3 Output HP Output HP: 2 Hp
Output KW Output KW: 1.5 kW Voltage Voltage: 208-230/460 V
Speed Speed: 1180 rpm Service Factor Service Factor: 1.15
Frame Frame: 184T Enclosure Enclosure: Drip Proof
Thermal Protection Thermal Protection: No Protection Ambient Temperature Ambient Temperature: 40 °C
Frequency Frequency: 60 Hz Current Current: 6.4-5.8/2.9 A
Duty Duty: Continuous Insulation Class Insulation Class: F
UL UL: Recognized CSA CSA: Y
CE CE: Y Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: POLYPHASE Starting Method Starting Method: Across The Line
Poles Poles: 6 Rotation Rotation: Reversible
Mounting Mounting: Rigid Base Drive End Bearing Drive End Bearing: Ball
Opp Drive End Bearing Opp Drive End Bearing: Ball Frame Material Frame Material: Rolled Steel
Shaft Type Shaft Type: Keyed Overall Length Overall Length: 14.72 in
Frame Length Frame Length: 7.75 in Shaft Diameter Shaft Diameter: 1.125 in
Shaft Extension Shaft Extension: 2.75 in
Service Factor Service Factor: 1.15 Frame Suffix Frame Suffix: T
Synchronous RPM Synchronous RPM: 1200 rpm Frequency Frequency: 60 Hz
Speed Speed: 1180 rpm Connection Drawing Connection Drawing: A-EE7308
Outline Drawing Outline Drawing: SS620292 Voltage Voltage: 208-230/460 V
Output KW Output KW: 1.5 kW Output HP Output HP: 2 Hp
Frame Size Frame Size: 184 Packaged Length Packaged Length: 16.10 IN
Weight Weight: 82.00 LB UPC UPC: 786674066008
Packaged Width Packaged Width: 12.71 IN Country of Origin Country of Origin: Mexico
Packaged Height Packaged Height: 14.58 IN
