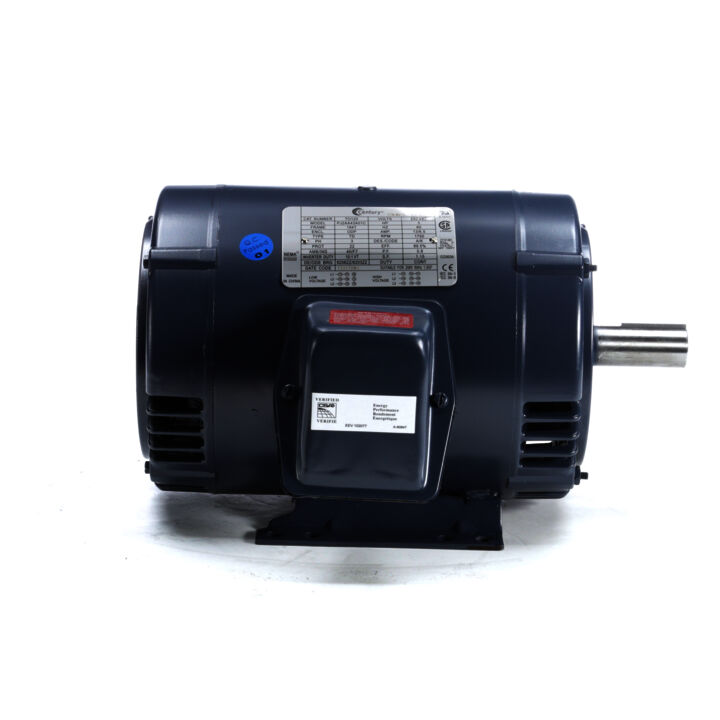

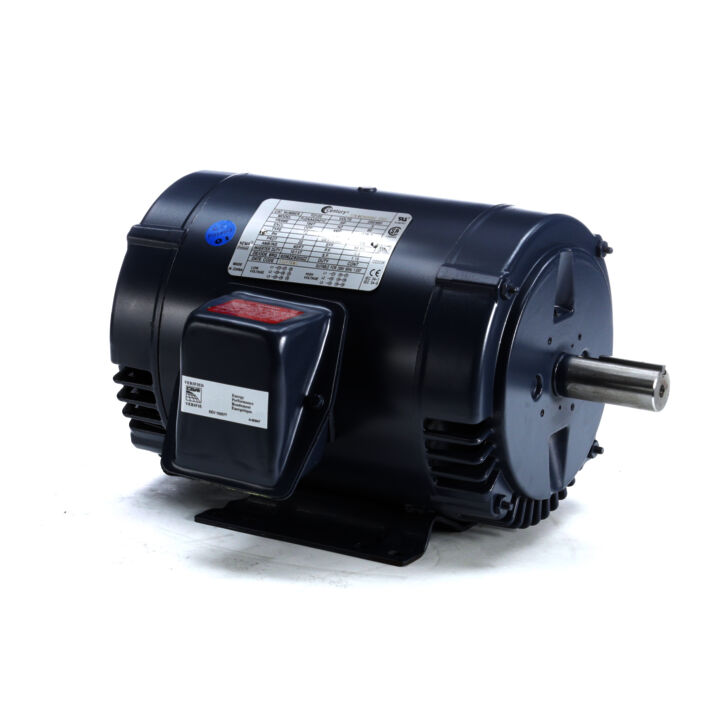

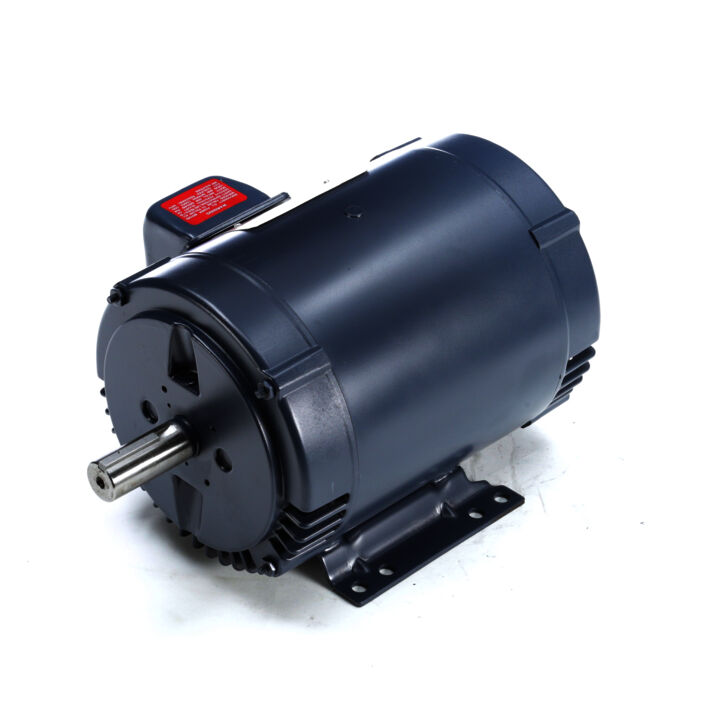

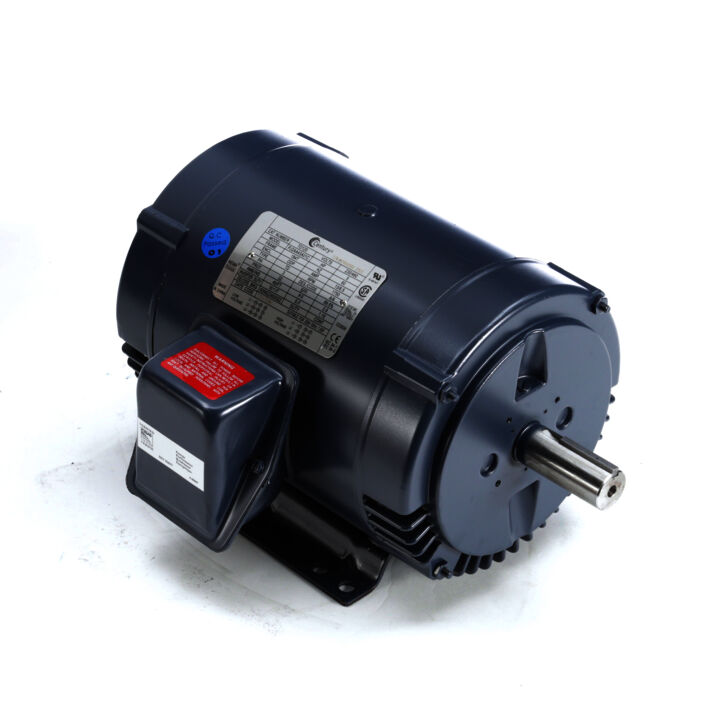

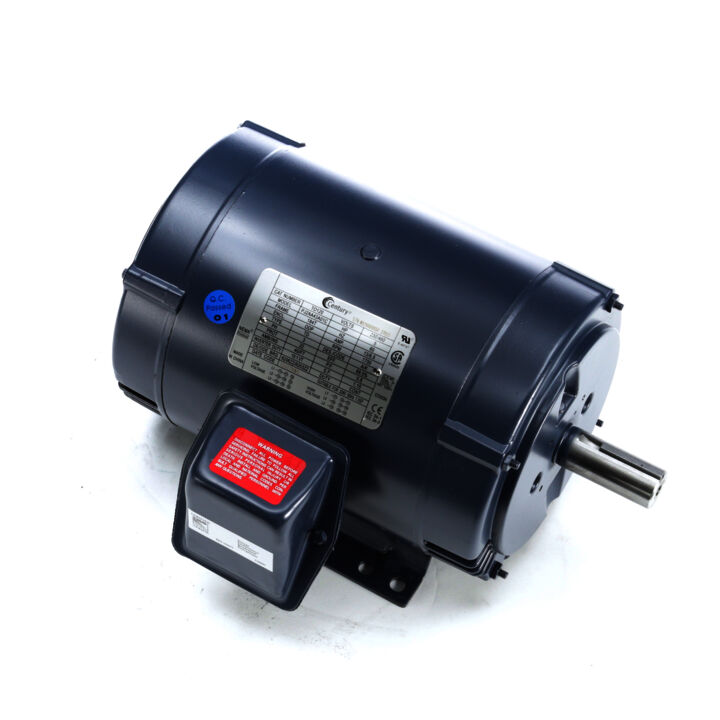

General Purpose Motor, 5 HP, 3 Ph, 60 Hz, 208-230/460 V, 1800 RPM, 184T Frame, ODP

Part#: TO120

Catalog#: TO120

Weight: 95 lb

location_on Where to Buy

Key Features

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2034
  • Inverter duty 10:1 variable torque and 2:1 constant torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Standard assembly F1, reversible to F2 assembly
  • Dual frame mounting holes

Specifications

Phase Phase: 3 Output HP Output HP: 5 Hp
Output KW Output KW: 3.7 kW Voltage Voltage: 208-230/460 V
Speed Speed: 1755 rpm Service Factor Service Factor: 1.15
Frame Frame: 184T Enclosure Enclosure: Open Drip Proof
Thermal Protection Thermal Protection: No Protection Ambient Temperature Ambient Temperature: 40 °C
Frequency Frequency: 60 Hz Current Current: 14-12.8/6.4 A
Duty Duty: Continuous Insulation Class Insulation Class: F
UL UL: Recognized CSA CSA: Y
CE CE: Y Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: POLYPHASE Starting Method Starting Method: Across The Line
Poles Poles: 4 Rotation Rotation: Reversible
Mounting Mounting: Rigid Base Drive End Bearing Drive End Bearing: Ball
Opp Drive End Bearing Opp Drive End Bearing: Ball Frame Material Frame Material: Rolled Steel
Shaft Type Shaft Type: Keyed Overall Length Overall Length: 14.72 in
Shaft Diameter Shaft Diameter: 1.125 in Shaft Extension Shaft Extension: 2.75 in
Service Factor Service Factor: 1.15 Frame Suffix Frame Suffix: T
Synchronous RPM Synchronous RPM: 1800 rpm Frequency Frequency: 60 Hz
Speed Speed: 1755 rpm Connection Drawing Connection Drawing: A-EE7308
Outline Drawing Outline Drawing: SS620292 Voltage Voltage: 208-230/460 V
Output KW Output KW: 3.7 kW Output HP Output HP: 5 Hp
Frame Size Frame Size: 184 Packaged Length Packaged Length: 16.10 IN
Weight Weight: 95.00 LB UPC UPC: 786674066114
Packaged Width Packaged Width: 12.71 IN HTC HTC: 8501.52.4000
Country of Origin Country of Origin: Mexico Packaged Height Packaged Height: 14.58 IN
