Product Comparator

Product

Obsolete, replaced by B199008.00 -..5HP..1200RPM.215T.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......GENERAL PURPOSE........

Part#:199008.00

Catalog#:199008.00

Sorry, this item is no longer available

find_replace View Replacement

Superseded

General Purpose Motor, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1200 & 1000 RPM, 215T Frame, TEFC

Part#:215TTFBD6080

Catalog#:GT1514

List Price: $1,467.00

location_on Where to Buy

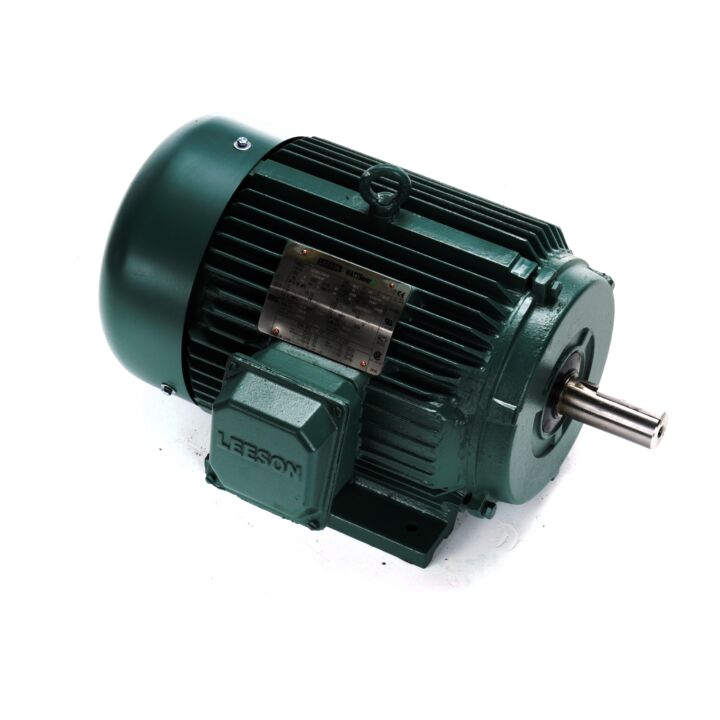

General Purpose Motor, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 1200 & 1000 RPM, 215T Frame, TEFC

Part#:171379.60

Catalog#:171379.60

Sorry, this item is no longer available

find_replace View Replacement

Product

Obsolete, replaced by B199008.00 -..5HP..1200RPM.215T.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......GENERAL PURPOSE........

General Purpose Motor, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1200 & 1000 RPM, 215T Frame, TEFC

General Purpose Motor, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 1200 & 1000 RPM, 215T Frame, TEFC

All Specs

Key Specs

Highlight Differences

Phase

Phase: 3.0

Output HP

Output HP: 5 & 3 Hp

Output KW

Output KW: 3.7 & 2.2 kW

Voltage

Voltage: 230/460 & 190/380 V

Voltage: 208-230/460 & 190/380 V

Speed

Speed: 1182 & 982 rpm

Speed: 1180 & 985 rpm

Service Factor

Service Factor: 1.15 & 1.15

Frame

Frame: 215T

Enclosure

Enclosure: Totally Enclosed Fan Cooled

Thermal Protection

Thermal Protection: No Protection

Efficiency

Efficiency: 89.5 & 88.5 %

Efficiency: 89.5 & 89 %

Efficiency: 89.5 %

Ambient Temperature

Ambient Temperature: 40.0 °C

Frequency

Frequency: 60 & 50 Hz

Current

Current: 14/7 & 11/5.5 A

Current: 13.6/6.8 & 10.6/5.3 A

Current: 15.3-14.4/7.2 & 11.8/5.9 A

Power Factor

Power Factor: 75

Power Factor: 77.5

Power Factor: 71.4

Duty

Duty: Continuous

Insulation Class

Insulation Class: F

Design Code

Design Code: B

KVA Code

KVA Code: G

KVA Code: J

Drive End Bearing Size

Drive End Bearing Size: 6307

Drive End Bearing Size: 6308

Opp Drive End Bearing Size

Opp Drive End Bearing Size: 6206

Opp Drive End Bearing Size: 6306

UL: Recognized

UL: Listed

UL: Recognized

CSA

CSA: Y

CE: N

CE: Y

IP Code

IP Code: 43

Number of Speeds

Number of Speeds: 1

Hazardous Location

Hazardous Location: N/A

Hazardous Location: DIVISION 2 T2B

Hazardous Location: N/A

Electrical Type

Electrical Type: Squirrel Cage Inverter Rated

Starting Method

Starting Method: Line Or Inverter

Starting Method: Wye Start Delta Run Or Inverter

Poles

Poles: 6

Rotation

Rotation: Reversible

Resistance Main

Resistance Main: 1.625 Ohms

Resistance Main: 2.656 Ohms

Resistance Main: 1.8959 Ohms

Mounting

Mounting: Rigid Base

Motor Orientation

Motor Orientation: Horizontal

Drive End Bearing

Drive End Bearing: Ball

Opp Drive End Bearing

Opp Drive End Bearing: Ball

Frame Material

Frame Material: Cast Iron

Frame Material: Rolled Steel

Frame Material: Cast Iron

Shaft Type

Shaft Type: T

Overall Length

Overall Length: N/A

Overall Length: 19.61 in

Shaft Diameter

Shaft Diameter: N/A

Shaft Diameter: 1.375 in

Shaft Extension

Shaft Extension: N/A

Shaft Extension: 3.38 in

Assembly/Box Mounting

Assembly/Box Mounting: F1/F2 CAPABLE

Assembly/Box Mounting: F1 ONLY

Inverter Load

Inverter Load: CONSTANT 20:1

Inverter Load: CONSTANT 10:1/VARIABLE 10:1

Inverter Load: CONSTANT 10:1

Service Factor

Service Factor: 1.15

Frame Suffix

Frame Suffix: T

Current

Current: 14.0/7.0 A

Current: 13.6/6.8 A

Current: 15.3-14.4/7.2 A

Synchronous RPM

Synchronous RPM: 1200 & 1000 rpm

Frequency

Frequency: 60 Hz

Speed

Speed: 1182.0 rpm

Speed: 1180.0 rpm

Connection Drawing

Connection Drawing: EE7308-LE

Connection Drawing: EE7308

Connection Drawing: 005010.01

Outline Drawing

Outline Drawing: SS620291-215T

Outline Drawing: SS620737-200

Outline Drawing: 16953660

Voltage

Voltage: 230/460 V

Voltage: 208-230/460 V

Output KW

Output KW: 3.7 kW

Output HP

Output HP: 5 Hp

Frame Size

Frame Size: 215

Torque UOM

Torque UOM: N/A

Torque UOM: LB-FT

Efficiency

Efficiency: 89.5 %
