Product

MODEL-IHP

Part#:E2006

Catalog#:E2006

Sorry, this item is no longer available

find_replace View Replacement

Superseded

General Purpose Motor, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 184TC Frame, TEFC

Part#:184TTFBD6029

Catalog#:GT1313A

List Price: $893.00

location_on Where to Buy

Substitute

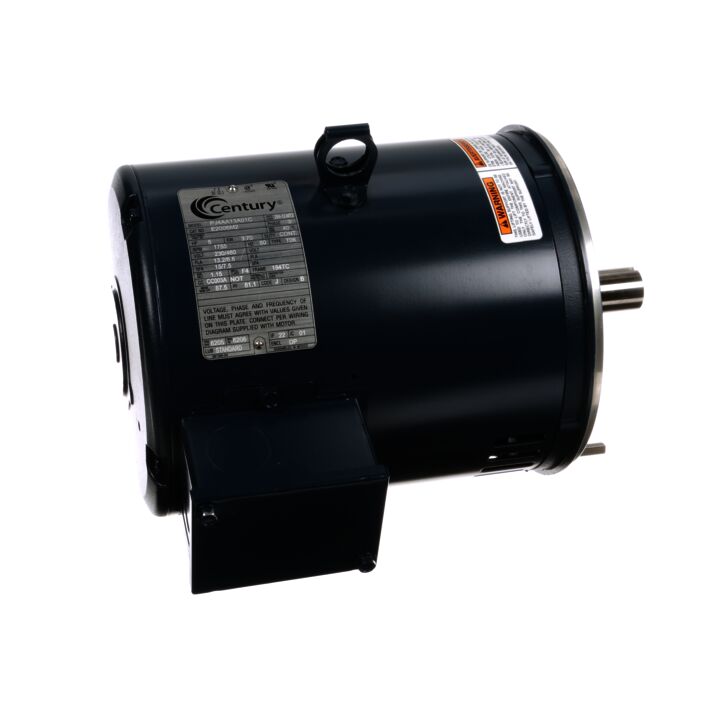

General Purpose Motor, 5 HP, 3 Ph, 60 Hz, 230/460 V, 1800 RPM, 184T Frame, ODP

Part#:E2006M2

Catalog#:E2006M2

Sorry, this item is no longer available

find_replace View Replacement

Product

MODEL-IHP

General Purpose Motor, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 184TC Frame, TEFC

General Purpose Motor, 5 HP, 3 Ph, 60 Hz, 230/460 V, 1800 RPM, 184T Frame, ODP

All Specs

Key Specs

Highlight Differences

Phase

Phase: 3.0

Output HP

Output HP: 5.0 Hp

Output HP: 5 & 3 Hp

Output HP: 5 Hp

Output KW

Output KW: 3.7 kW

Output KW: 3.7 & 2.2 kW

Output KW: 3.7 kW

Voltage

Voltage: 230/460 V

Voltage: 230/460 & 190/380 V

Voltage: 230/460 V

Speed

Speed: 1745 rpm

Speed: 1765 & 1462 rpm

Speed: 1755 rpm

Service Factor

Service Factor: 1.15

Service Factor: 1.15 & 1.15

Service Factor: 1.15

Frame

Frame: S184TC

Frame: 184TC

Frame: 184T

Enclosure

Enclosure: Drip Proof

Enclosure: Totally Enclosed Fan Cooled

Enclosure: Open Drip Proof

Thermal Protection

Thermal Protection: N/A

Thermal Protection: No Protection

Efficiency

Efficiency: 87.5 %

Efficiency: 89.5 & 86.5 %

Efficiency: N/A

Ambient Temperature

Ambient Temperature: 40.0 °C

Frequency

Frequency: 60 Hz

Frequency: 60 & 50 Hz

Frequency: 60 Hz

Current

Current: 12.8/6.4 A

Current: 13.2/6.6 & 10.2/5.1 A

Current: 13.2/6.6 A

Power Factor

Power Factor: N/A

Power Factor: 80

Power Factor: N/A

Duty

Duty: Continuous

Insulation Class

Insulation Class: F

Design Code

Design Code: N/A

Design Code: A

Design Code: N/A

KVA Code

KVA Code: N/A

KVA Code: K

KVA Code: N/A

Drive End Bearing Size

Drive End Bearing Size: N/A

Drive End Bearing Size: 6206

Drive End Bearing Size: N/A

Opp Drive End Bearing Size

Opp Drive End Bearing Size: N/A

Opp Drive End Bearing Size: 6205

Opp Drive End Bearing Size: N/A

UL: Recognized

UL: Listed

UL: Recognized

CSA

CSA: Y

CE: N/A

CE: Y

IP Code

IP Code: N/A

IP Code: 43

IP Code: N/A

Number of Speeds

Number of Speeds: N/A

Number of Speeds: 1

Hazardous Location

Hazardous Location: N/A

Hazardous Location: DIVISION 2 T2B

Hazardous Location: N/A

Electrical Type

Electrical Type: N/A

Electrical Type: Squirrel Cage Inverter Rated

Electrical Type: Polyphase

Starting Method

Starting Method: N/A

Starting Method: Line Or Inverter

Starting Method: Across The Line

Poles

Poles: 4

Rotation

Rotation: Counterclockwise

Rotation: Reversible

Resistance Main

Resistance Main: N/A

Resistance Main: 2.75 Ohms

Resistance Main: N/A

Mounting

Mounting: N/A

Mounting: Round

Motor Orientation

Motor Orientation: N/A

Motor Orientation: Horizontal

Motor Orientation: N/A

Drive End Bearing

Drive End Bearing: 206sf

Drive End Bearing: Ball

Opp Drive End Bearing

Opp Drive End Bearing: 204sf

Opp Drive End Bearing: Ball

Frame Material

Frame Material: N/A

Frame Material: Rolled Steel

Shaft Type

Shaft Type: N/A

Shaft Type: T

Shaft Type: Keyed

Overall Length

Overall Length: N/A

Overall Length: 16.85 in

Overall Length: 13.28 in

Frame Length

Frame Length: 8.00 in

Frame Length: 6.85 in

Frame Length: 9.00 in

Shaft Diameter

Shaft Diameter: N/A

Shaft Diameter: 1.125 in

Shaft Diameter: 1.250 in

Shaft Extension

Shaft Extension: N/A

Shaft Extension: 2.75 in

Shaft Extension: 2.88 in

Assembly/Box Mounting

Assembly/Box Mounting: N/A

Assembly/Box Mounting: F1/F2 CAPABLE

Assembly/Box Mounting: N/A

Inverter Load

Inverter Load: N/A

Inverter Load: CONSTANT 10:1/VARIABLE 10:1

Inverter Load: N/A

Service Factor

Service Factor: 1.15

Frame Suffix

Frame Suffix: TC

Frame Suffix: T

Current

Current: N/A

Current: 13.2/6.6 A

Current: N/A

Synchronous RPM

Synchronous RPM: N/A

Synchronous RPM: 1800 & 1500 rpm

Synchronous RPM: 1800 rpm

Frequency

Frequency: 60 Hz

Speed

Speed: 1745.0 rpm

Speed: 1765.0 rpm

Speed: 1755.0 rpm

Connection Drawing

Connection Drawing: N/A

Connection Drawing: EE7308

Connection Drawing: 005010.01CY

Outline Drawing

Outline Drawing: N/A

Outline Drawing: SS600201-200

Outline Drawing: 035607CY

Voltage

Voltage: 230/460 V

Output KW

Output KW: 3.7 kW

Output HP

Output HP: 5 Hp

Frame Size

Frame Size: 184

Torque UOM

Torque UOM: N/A

Torque UOM: LB-FT

Torque UOM: N/A

Efficiency

Efficiency: 87.5 %

Efficiency: 89.5 %

Efficiency: N/A

Frame Prefix

Frame Prefix: S

Frame Prefix: N/A
