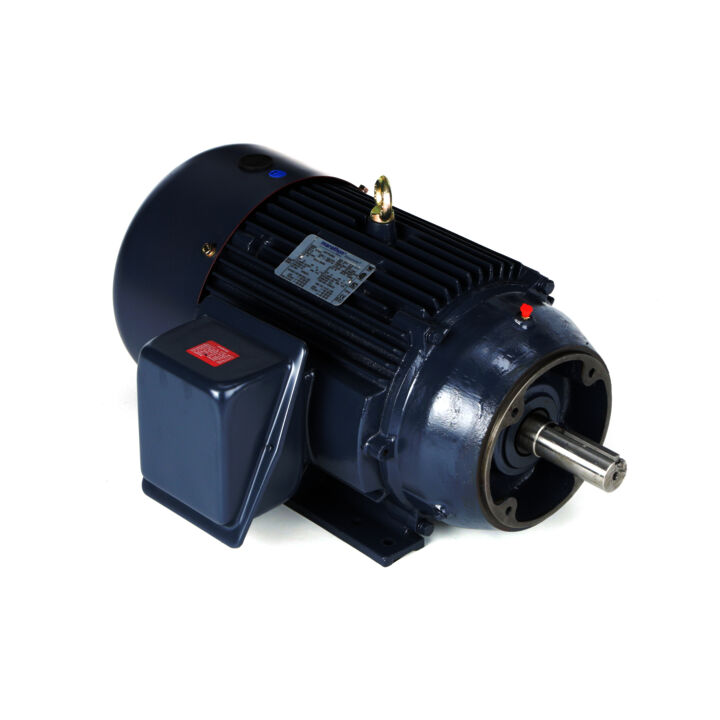

Image differs from product

General Purpose Motor, 10 HP, 3 Ph, 60 Hz, 208-230/460 V, 1200 RPM, 256TC Frame, TEFC

Part#: CF117

Catalog#: CF117

Weight: 313 lb

location_on Where to Buy

Key Features

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2180
  • Inverter duty 10:1 variable torque and 10:1 constant torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Standard assembly F1, reversible to F2 assembly

Specifications

Phase Phase: 3 Output HP Output HP: 10 Hp
Output KW Output KW: 7.5 kW Voltage Voltage: 208-230/460 V
Speed Speed: 1180 rpm Service Factor Service Factor: 1.15
Frame Frame: 256TC Enclosure Enclosure: Totally Enclosed Fan Cooled
Thermal Protection Thermal Protection: No Protection Ambient Temperature Ambient Temperature: 40 °C
Frequency Frequency: 60 Hz Current Current: 28/14 A
Duty Duty: Continuous Insulation Class Insulation Class: F
UL UL: Recognized CSA CSA: Y
CE CE: Y Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: POLYPHASE Starting Method Starting Method: Across The Line
Poles Poles: 6 Rotation Rotation: Reversible
Mounting Mounting: Round Drive End Bearing Drive End Bearing: Ball
Opp Drive End Bearing Opp Drive End Bearing: Ball Frame Material Frame Material: Rolled Steel
Shaft Type Shaft Type: Keyed Overall Length Overall Length: 27.76 in
Frame Length Frame Length: 12.08 in Shaft Diameter Shaft Diameter: 1.625 in
Shaft Extension Shaft Extension: 4 in
Service Factor Service Factor: 1.15 Frame Suffix Frame Suffix: TC
Synchronous RPM Synchronous RPM: 1200 rpm Frequency Frequency: 60 Hz
Speed Speed: 1180 rpm Connection Drawing Connection Drawing: A-EE7308K
Outline Drawing Outline Drawing: SS620632 Voltage Voltage: 208-230/460 V
Output KW Output KW: 7.5 kW Output HP Output HP: 10 Hp
Frame Size Frame Size: 256 Packaged Length Packaged Length: 32.48 IN
Weight Weight: 313.00 LB UPC UPC: 786674065902
Packaged Width Packaged Width: 24.72 IN Country of Origin Country of Origin: China
Packaged Height Packaged Height: 22.05 IN

Efficiency

Information not available at the moment. Please check back later!
