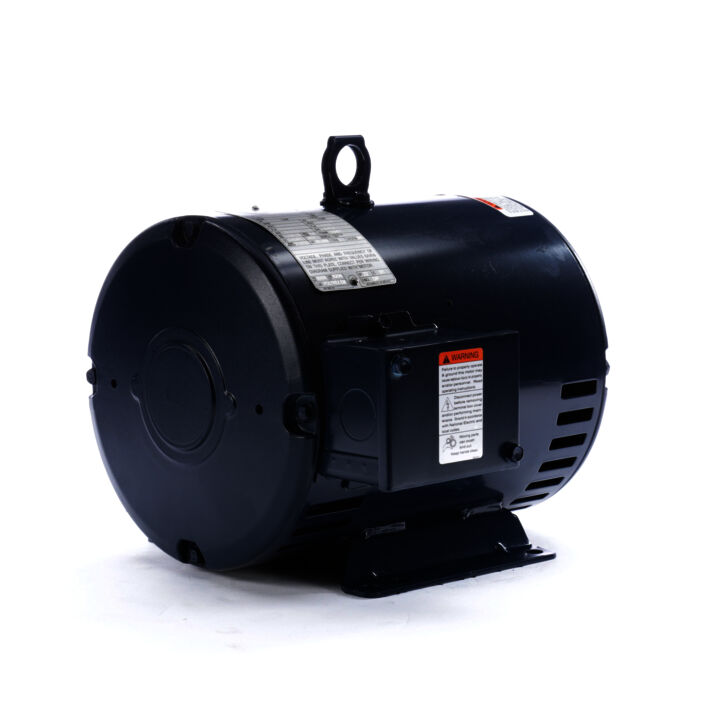

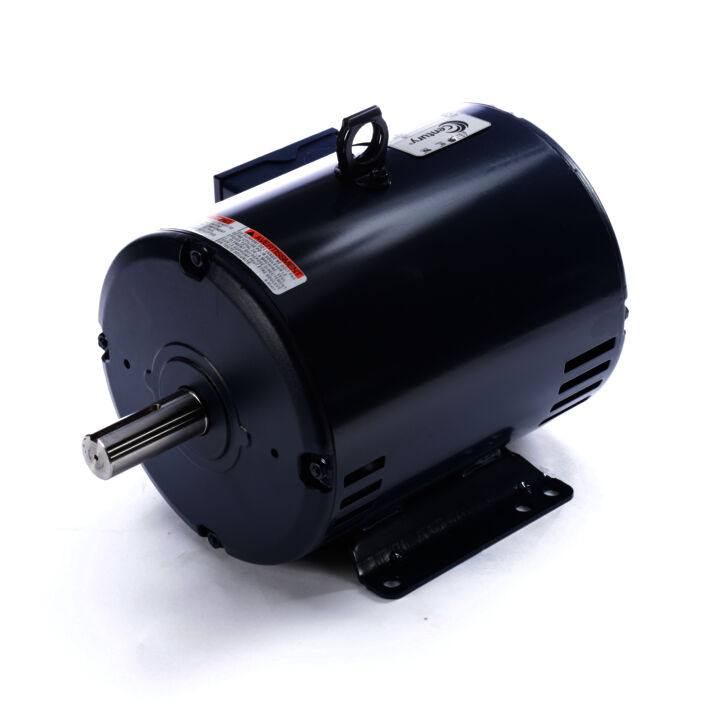

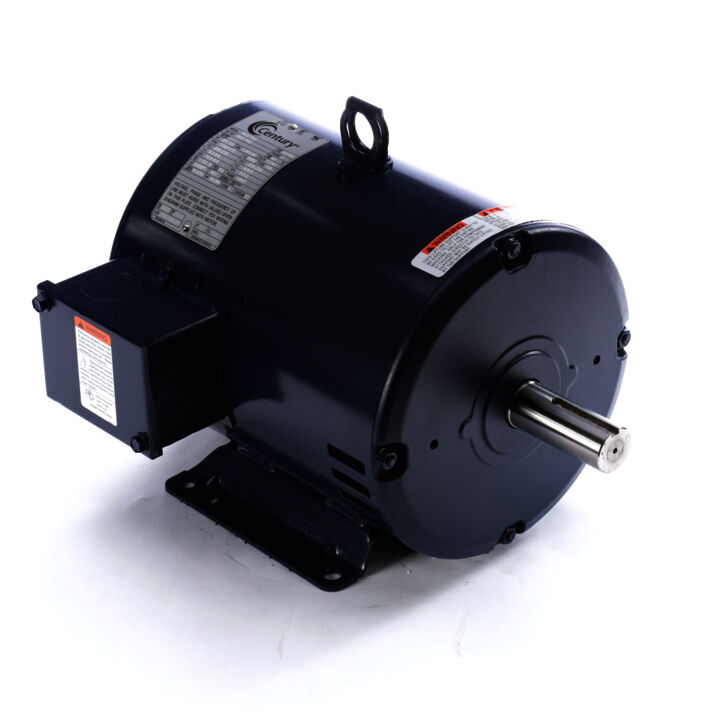

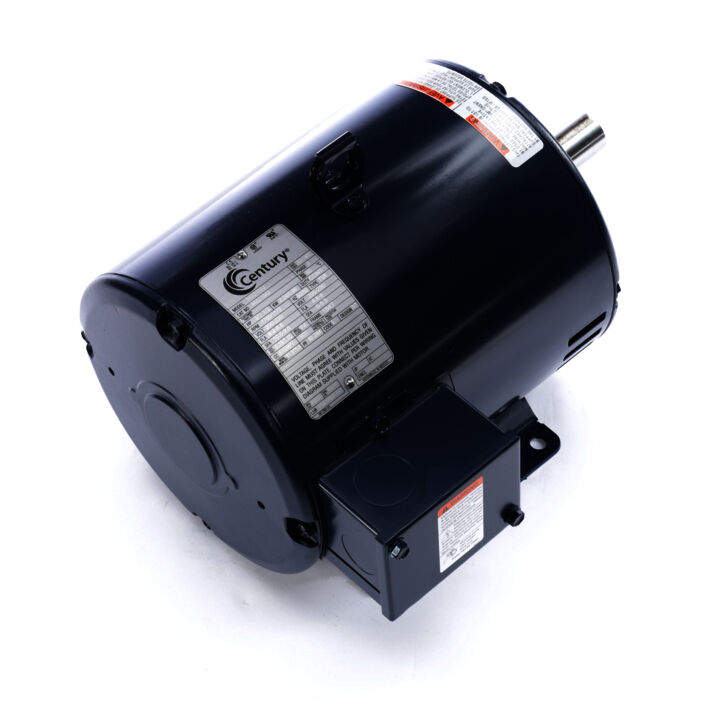

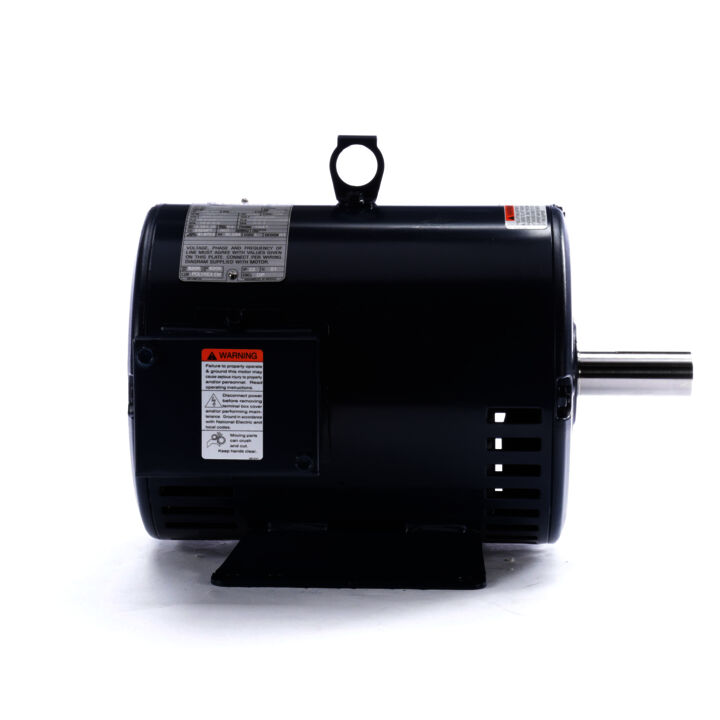

MODEL-IHP
MODEL-IHP
Part#: M221
Catalog#: M221
Weight: 71 lb
Your Price: Login is Required
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 3.0 1.3 Hp |
| Voltage | Voltage: 200-230 V | Speed | Speed: 1740/1160 rpm |
| Service Factor | Service Factor: 1.15 | Frame | Frame: S184T |
| Enclosure | Enclosure: Drip Proof | Ambient Temperature | Ambient Temperature: 40 °C |
| Frequency | Frequency: 60 Hz | Current | Current: 9.0-8.4/4.8-4.8 A |
| Duty | Duty: Continuous | Insulation Class | Insulation Class: F |
| UL | UL: Recognized | CSA | CSA: Y |
| Number of Speeds | Number of Speeds: 2-2-VT |
| Poles | Poles: 4/6 | Rotation | Rotation: Reversible |
| Mounting | Mounting: Rigid Base | Drive End Bearing | Drive End Bearing: 206 |
| Opp Drive End Bearing | Opp Drive End Bearing: 204 | Frame Length | Frame Length: 7.75 in |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: T |
| Frequency | Frequency: 60 Hz | Speed | Speed: 1740 rpm |
| Voltage | Voltage: 200-230 V | Frame Size | Frame Size: 184 |
| Frame Prefix | Frame Prefix: S | Weight | Weight: 71.00 LB |
| UPC | UPC: 786674026347 |
Efficiency
Information not available at the moment. Please check back later!
