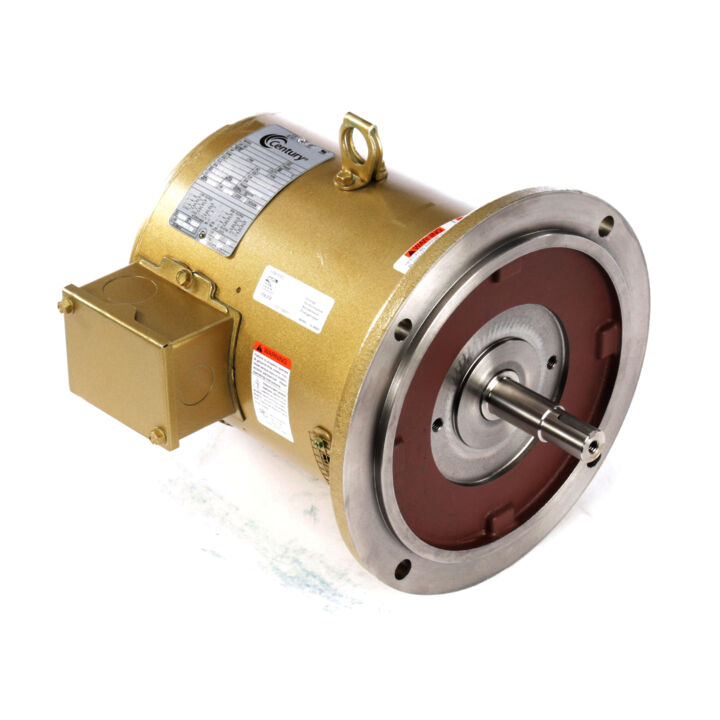

Pool Pump Motor, 5.0 HP, 3 Ph, 50 Hz, 190/380//220/440 V, 3000 RPM, 182TDZ Frame, DP
Pool Pump Motor, 5.0 HP, 3 Ph, 50 Hz, 190/380//220/440 V, 3000 RPM, 182TDZ Frame, DP
Part#: R237M2A
Catalog#: R237M2A
Weight: 76 lb
List Price: $2,015.00
Your Price: Login is Required
Key Features
- 40°C Ambient
- Reversible
- External Slinger
- Purex Hydrotech East Side "L" Series and "C" Series Commercial Pump
- Sealed Ball Bearings
- Keyed Shaft
- Purex Replacement
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 5 Hp |
| Output KW | Output KW: 3.7 kW | Voltage | Voltage: 190/380//220/440 V |
| Speed | Speed: 2850//3500 rpm | Service Factor | Service Factor: 1 |
| Frame | Frame: 182TDZ | Enclosure | Enclosure: Drip Proof |
| Thermal Protection | Thermal Protection: No Protection | Efficiency | Efficiency: 86.5 % |
| Ambient Temperature | Ambient Temperature: 40 °C | Frequency | Frequency: 50 Hz |
| Current | Current: 14.4/7.6//13/6.5 A | Duty | Duty: Continuous |
| Insulation Class | Insulation Class: F | UL | UL: Recognized |
| CSA | CSA: Y | CE | CE: Y |
| Number of Speeds | Number of Speeds: 1 |
| Electrical Type | Electrical Type: Polyphase | Starting Method | Starting Method: Across The Line |
| Poles | Poles: 2 | Rotation | Rotation: Reversible |
| Mounting | Mounting: Special/Non-Standard | Motor Orientation | Motor Orientation: Horizontal |
| Drive End Bearing | Drive End Bearing: Ball | Opp Drive End Bearing | Opp Drive End Bearing: Ball |
| Frame Material | Frame Material: Rolled Steel | Shaft Type | Shaft Type: 7/8 Keyed |
| Overall Length | Overall Length: 14.32 in | Frame Length | Frame Length: 9 in |
| Shaft Diameter | Shaft Diameter: 1 in | Shaft Extension | Shaft Extension: 3 in |
| Service Factor | Service Factor: 1 | Frame Suffix | Frame Suffix: TDZ |
| Synchronous RPM | Synchronous RPM: 3000 rpm | Frequency | Frequency: 50 Hz |
| Speed | Speed: 3500 rpm | Connection Drawing | Connection Drawing: 005010.01 |
| Outline Drawing | Outline Drawing: OLR237M2A | Voltage | Voltage: 190/380//220/440 V |
| Output KW | Output KW: 3.7 kW | Output HP | Output HP: 5 Hp |
| Frame Size | Frame Size: 182 | Efficiency | Efficiency: 86.5 % |
| Packaged Length | Packaged Length: 17.94 IN | Weight | Weight: 76.00 LB |
| UPC | UPC: 786674074249 | Packaged Width | Packaged Width: 13.06 IN |
| HTC | HTC: 8501.52.4000 | Country of Origin | Country of Origin: Mexico |
| Packaged Height | Packaged Height: 12.88 IN |
