Product Comparator

Product

General Purpose Motor, 60 & 50 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 1200 & 1000 RPM, 404T Frame, DP

Part#:170149.60

Catalog#:170149.60

Sorry, this item is no longer available

find_replace View Replacement

Superseded

General Purpose Motor, 60 & 50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1200 & 1000 RPM, 404T Frame, DP

Part#:404TTDCD6086

Catalog#:GT0041A

List Price: $9,573.00

location_on Where to Buy

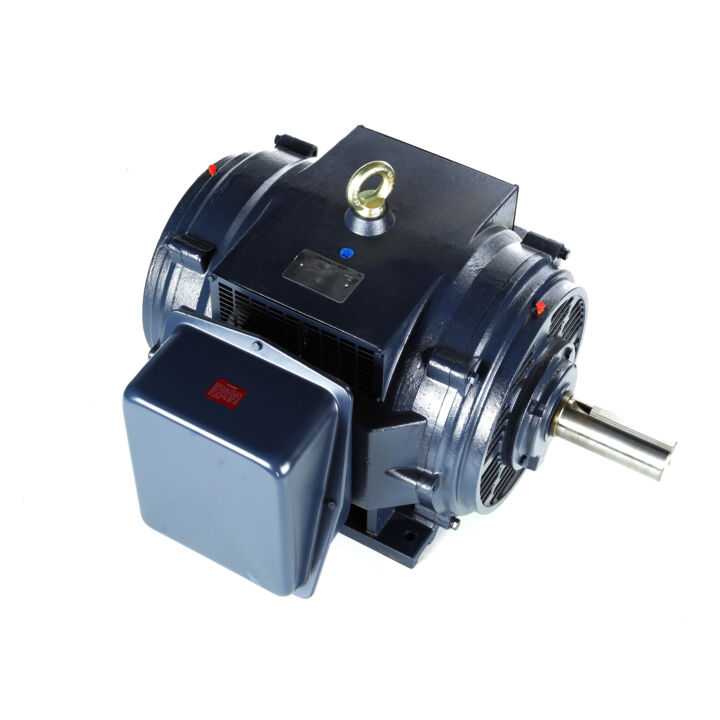

Obsolete, replaced by B199718.00 - 60HP..1200RPM.404T.ODP.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......GEN PURPOSE........

Part#:199718.00

Catalog#:199718.00

Sorry, this item is no longer available

find_replace View Replacement

Product

General Purpose Motor, 60 & 50 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 1200 & 1000 RPM, 404T Frame, DP

General Purpose Motor, 60 & 50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1200 & 1000 RPM, 404T Frame, DP

Obsolete, replaced by B199718.00 - 60HP..1200RPM.404T.ODP.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......GEN PURPOSE........

All Specs

Key Specs

Highlight Differences

Phase

Phase: 3.0

Output HP

Output HP: 60 & 50 Hp

Output KW

Output KW: 45.0 & 37.0 kW

Voltage

Voltage: 208-230/460 & 190/380 V

Voltage: 230/460 & 190/380 V

Speed

Speed: 1190 & 990 rpm

Speed: 1188 & 988 rpm

Speed: 1190 & 990 rpm

Service Factor

Service Factor: 1.25 & 1.15

Service Factor: 1.15 & 1.15

Frame

Frame: 404T

Enclosure

Enclosure: Drip Proof

Thermal Protection

Thermal Protection: No Protection

Efficiency

Efficiency: 94.5 & 94.1 %

Efficiency: 94.5 & 93.9 %

Efficiency: 94.5 & 94.1 %

Ambient Temperature

Ambient Temperature: 40.0 °C

Frequency

Frequency: 60 & 50 Hz

Current

Current: 169-160/80 & 160/80 A

Current: 141/70.5 & 142/71 A

Current: 144/72 & 144/72 A

Power Factor

Power Factor: 74.5

Power Factor: 84.5

Power Factor: 82.5

Duty

Duty: Continuous

Insulation Class

Insulation Class: F

Design Code

Design Code: B

KVA Code

KVA Code: F

KVA Code: G

Drive End Bearing Size

Drive End Bearing Size: 6316

Opp Drive End Bearing Size

Opp Drive End Bearing Size: 6314

Opp Drive End Bearing Size: 6315

UL: Recognized

CSA

CSA: N

CSA: Y

CE: Y

IP Code

IP Code: 12

IP Code: 22

IP Code: 12

Number of Speeds

Number of Speeds: 1

Electrical Type

Electrical Type: Squirrel Cage Inverter Rated

Starting Method

Starting Method: Wye Start Delta Run Or Inverter

Starting Method: Part Wdg Start Low Volt Only & Wye Start Delta Run Or Inverter

Starting Method: Wye Start Delta Run Or Inverter

Poles

Poles: 6

Rotation

Rotation: Reversible

Resistance Main

Resistance Main: .085 Ohms

Resistance Main: .1314 Ohms

Resistance Main: .102 Ohms

Mounting

Mounting: Rigid Base

Motor Orientation

Motor Orientation: Horizontal

Drive End Bearing

Drive End Bearing: Ball

Opp Drive End Bearing

Opp Drive End Bearing: Ball

Frame Material

Frame Material: Cast Iron

Shaft Type

Shaft Type: T

Overall Length

Overall Length: 32.76 in

Overall Length: 37.20 in

Overall Length: N/A

Shaft Diameter

Shaft Diameter: 2.875 in

Shaft Diameter: N/A

Shaft Extension

Shaft Extension: 7.25 in

Shaft Extension: N/A

Assembly/Box Mounting

Assembly/Box Mounting: F1/F2 CAPABLE

Inverter Load

Inverter Load: N/A

Inverter Load: VARIABLE 10:1

Service Factor

Service Factor: 1.25

Service Factor: 1.15

Frame Suffix

Frame Suffix: T

Current

Current: 169.0-160.0/80.0 A

Current: 141.0/70.5 A

Current: 144.0/72.0 A

Synchronous RPM

Synchronous RPM: 1200 & 1000 rpm

Frequency

Frequency: 60 Hz

Speed

Speed: 1190.0 rpm

Speed: 1188.0 rpm

Speed: 1190.0 rpm

Connection Drawing

Connection Drawing: 004172.01

Connection Drawing: EE7308AA

Connection Drawing: EE7308AA-LE

Outline Drawing

Outline Drawing: 169558.60

Outline Drawing: SS620754-100

Outline Drawing: SS620253-404T

Voltage

Voltage: 208-230/460 V

Voltage: 230/460 V

Output KW

Output KW: 45.0 kW

Output HP

Output HP: 60 Hp

Frame Size

Frame Size: 404

Torque UOM

Torque UOM: LB-FT

Torque UOM: N/A

Efficiency

Efficiency: 94.5 %
