Product Comparator

Product

Obsolete, replaced by B199710.00 - 40HP..3600RPM.286TS.ODP.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......GEN PURPOSE........

Part#:199710.00

Catalog#:199710.00

Sorry, this item is no longer available

find_replace View Replacement

Superseded

General Purpose Motor, 40 & 30 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 286TS Frame, DP

Part#:286TSTDBD6001

Catalog#:GT0072

List Price: $3,667.00

location_on Where to Buy

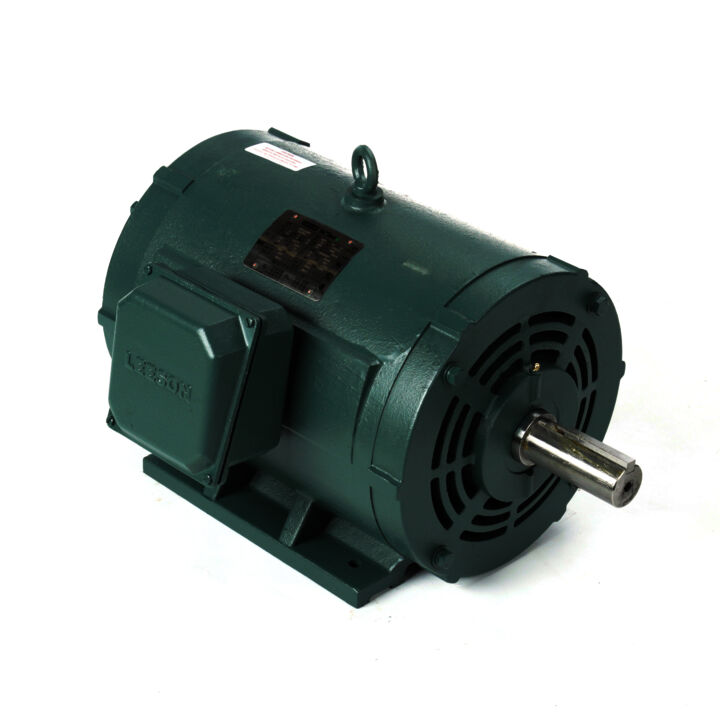

General Purpose Motor, 40 & 30 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 3600 & 3000 RPM, 286TS Frame, DP

Part#:170038.60

Catalog#:170038.60

Sorry, this item is no longer available

find_replace View Replacement

Product

Obsolete, replaced by B199710.00 - 40HP..3600RPM.286TS.ODP.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......GEN PURPOSE........

General Purpose Motor, 40 & 30 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 286TS Frame, DP

General Purpose Motor, 40 & 30 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 3600 & 3000 RPM, 286TS Frame, DP

All Specs

Key Specs

Highlight Differences

Phase

Phase: 3.0

Output HP

Output HP: 40 & 30 Hp

Output KW

Output KW: 30.0 & 22.4 kW

Voltage

Voltage: 230/460 & 190/380 V

Voltage: 208-230/460 & 190/380 V

Speed

Speed: 3545 & 2950 rpm

Speed: 3562 & 2965 rpm

Speed: 3560 & 2955 rpm

Service Factor

Service Factor: 1.15 & 1.15

Frame

Frame: 286TS

Enclosure

Enclosure: Drip Proof

Thermal Protection

Thermal Protection: No Protection

Efficiency

Efficiency: 92.4 & 91.7 %

Efficiency: 93.6 & 93 %

Ambient Temperature

Ambient Temperature: 40.0 °C

Frequency

Frequency: 60 & 50 Hz

Current

Current: 89/44.5 & 81/40.5 A

Current: 93/46.5 & 86/43 A

Current: 100-91/45.5 & 79/39.5 A

Power Factor

Power Factor: 89.5

Power Factor: 87

Power Factor: 88

Duty

Duty: Continuous

Insulation Class

Insulation Class: F

Design Code

Design Code: B

Design Code: A

KVA Code

KVA Code: F

KVA Code: H

Drive End Bearing Size

Drive End Bearing Size: 6211

Drive End Bearing Size: 6312

Opp Drive End Bearing Size

Opp Drive End Bearing Size: 6211

UL: Recognized

CSA

CSA: Y

CE: Y

IP Code

IP Code: 12

IP Code: 22

IP Code: 23

Number of Speeds

Number of Speeds: 1

Electrical Type

Electrical Type: Squirrel Cage Inverter Rated

Starting Method

Starting Method: Line Or Inverter

Starting Method: Part Wdg Start Low Volt Only & Wye Start Delta Run Or Inverter

Starting Method: Line Or Inverter

Poles

Poles: 2

Rotation

Rotation: Reversible

Resistance Main

Resistance Main: .187 Ohms

Resistance Main: .2468 Ohms

Resistance Main: .198 Ohms

Mounting

Mounting: Rigid Base

Motor Orientation

Motor Orientation: Horizontal

Drive End Bearing

Drive End Bearing: Ball

Opp Drive End Bearing

Opp Drive End Bearing: Ball

Frame Material

Frame Material: Cast Iron

Frame Material: Rolled Steel

Frame Material: Cast Iron

Shaft Type

Shaft Type: TS

Overall Length

Overall Length: N/A

Overall Length: 25.72 in

Overall Length: 23.62 in

Frame Length

Frame Length: N/A

Frame Length: 13.97 in

Frame Length: N/A

Shaft Diameter

Shaft Diameter: N/A

Shaft Diameter: 1.625 in

Shaft Extension

Shaft Extension: N/A

Shaft Extension: 3.25 in

Assembly/Box Mounting

Assembly/Box Mounting: F1/F2 CAPABLE

Assembly/Box Mounting: F1 ONLY

Inverter Load

Inverter Load: VARIABLE 10:1

Inverter Load: N/A

Service Factor

Service Factor: 1.15

Frame Suffix

Frame Suffix: TS

Current

Current: 89.0/44.5 A

Current: 93.0/46.5 A

Current: 100.0-91.0/45.5 A

Synchronous RPM

Synchronous RPM: 3600 & 3000 rpm

Frequency

Frequency: 60 Hz

Speed

Speed: 3545.0 rpm

Speed: 3562.0 rpm

Speed: 3560.0 rpm

Connection Drawing

Connection Drawing: EE7308K_LE

Connection Drawing: EE7308AA

Connection Drawing: 004172.01

Outline Drawing

Outline Drawing: SS620239

Outline Drawing: SS620709-200

Outline Drawing: 16955360

Voltage

Voltage: 230/460 V

Voltage: 208-230/460 V

Output KW

Output KW: 30.0 kW

Output HP

Output HP: 40 Hp

Frame Size

Frame Size: 286

Torque UOM

Torque UOM: N/A

Torque UOM: LB-FT

Efficiency

Efficiency: 92.4 %

Efficiency: 93.6 %
