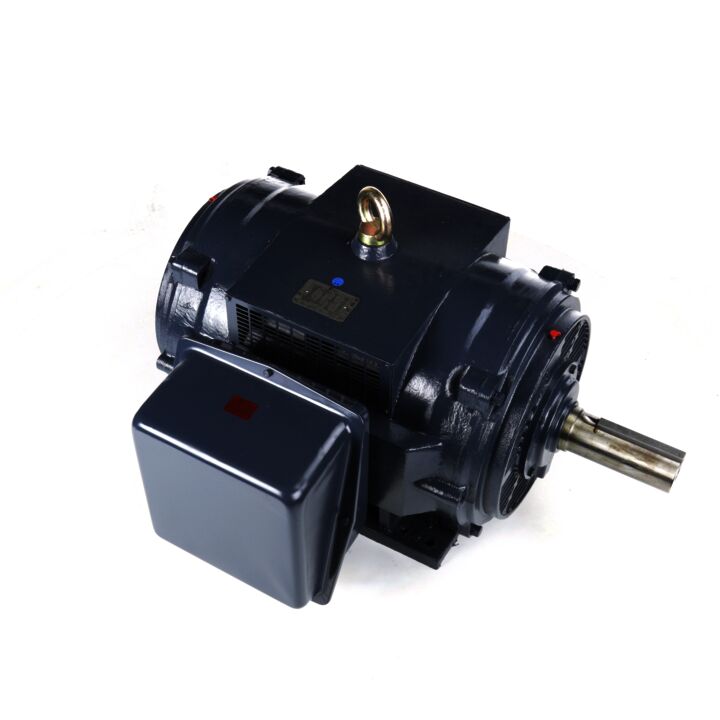

MODEL-IHP

Part#: E846

Catalog#: E846

Weight: 1654 lb

location_on Where to Buy

Compare Product

Specifications

Phase	Phase: 3	Output HP	Output HP: 150 Hp
Output KW	Output KW: 111.9 kW	Voltage	Voltage: 460 V
Speed	Speed: 1785 rpm	Service Factor	Service Factor: 1.15
Frame	Frame: 444T	Efficiency	Efficiency: 95.8 %
Ambient Temperature	Ambient Temperature: 40 °C	Frequency	Frequency: 60 Hz
Current	Current: 165 A	Duty	Duty: Continuous
Insulation Class	Insulation Class: F

Rotation	Rotation: Reversible Counterclockwise	Drive End Bearing	Drive End Bearing: Nu318
Opp Drive End Bearing	Opp Drive End Bearing: 6314

Service Factor	Service Factor: 1.15	Frame Suffix	Frame Suffix: T
Frequency	Frequency: 60 Hz	Speed	Speed: 1785 rpm
Voltage	Voltage: 460 V	Output KW	Output KW: 111.9 kW
Output HP	Output HP: 150 Hp	Frame Size	Frame Size: 444
Efficiency	Efficiency: 95.8 %	Weight	Weight: 1654.00 LB
